Epson Stylus CX4900 User Manual

EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 136
4.4.9 Printer Mechanism/Housing, Lower
 External view (1)

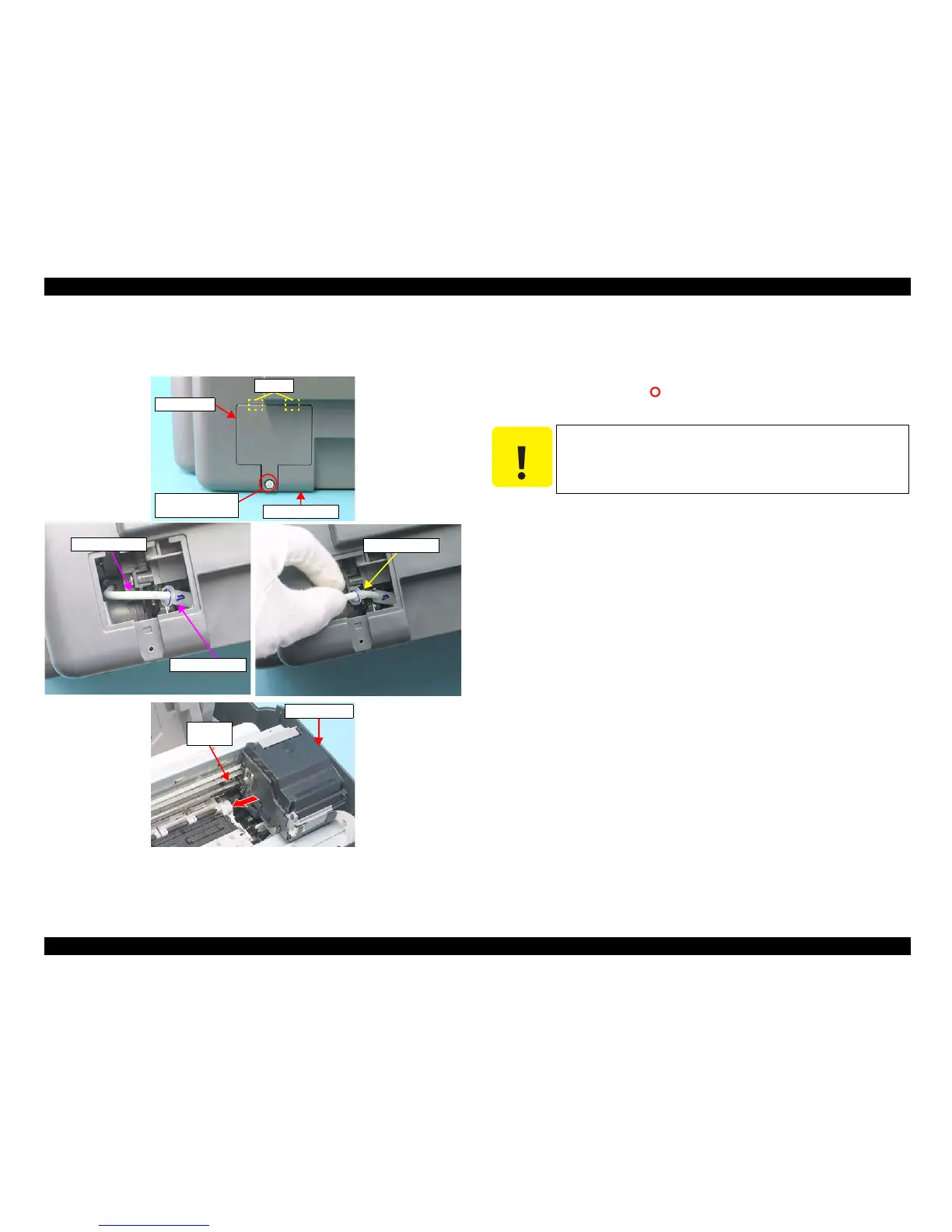

Figure 4-14. Removing Printer Mechanism (1)
 Part/Unit that s
hould be removed before removing Printer Mechanism
Document Cover / Panel Unit / Scanner Unit / Housing, Upper / Stacker Assy.
 Removal procedure
1. Remove the screw (x1, ) that secures the Rear Cover, and remove the Rear
Cover.
2. Pull
out the Waste Ink Tube from the Waste Ink Cover together with the Tube
Stopper.
3. Release the Carriage Lock with a flathead screwdriver, and move the Carriage
Unit to the center of the printer.
Rear Cover
C.B.P. 3x10 F/Zn
(4±1kgfcm)
Housing, Lower
Tabs
Waste Ink Cover
Waste Ink Tube
Tube Stopper
Carriage Unit
Carriage
Lock
C A U T I O N
Ink may leak from the Waste Ink Tube. Prepare cleaning rags
beforehand, and be careful not spread ink onto surrounding area.
