EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
DISASSEMBLY/ASSEMBLY Removal procedure Specific to Stylus CX4900/CX4905/CX5000/DX5000/DX5050 170
4.6.2 Housing, Upper
External view

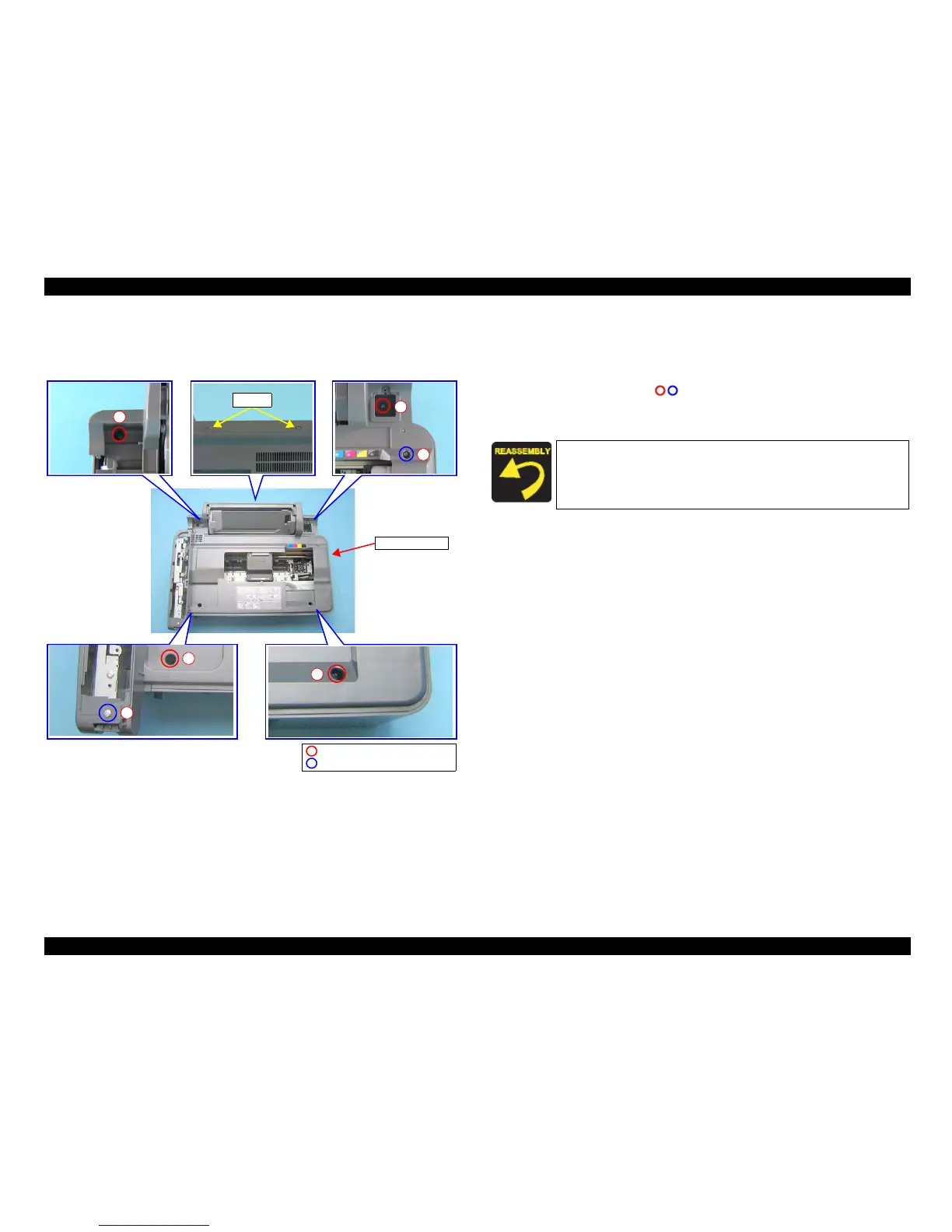

Figure 4-60. Removing Housing, Upper
Part/Unit
that should be removed before removing Housing, Upper
Document Cover / Panel Unit / Scanner Unit
Removal procedure
1. Remove the screws (x6, ) that secure the Housing, Upper.
2. Release the tabs (x2) that secure the Housing, Upper with a flathead
screwdriver or a similar tool, and lift up to remove the Housing, Upper.
1
5
2
6
3
4
Tabs
C.B.P. 3x10 F/Zn (4±1kgfcm)
C.B.S. 3x6 F/Zn (4±1kgfcm)
Housing, Upper
Tighten the screws in the order as shown in the figure.
