4.4.15 Spur Gear 36.8/Extension Spring 0.143/Clutch
 External view

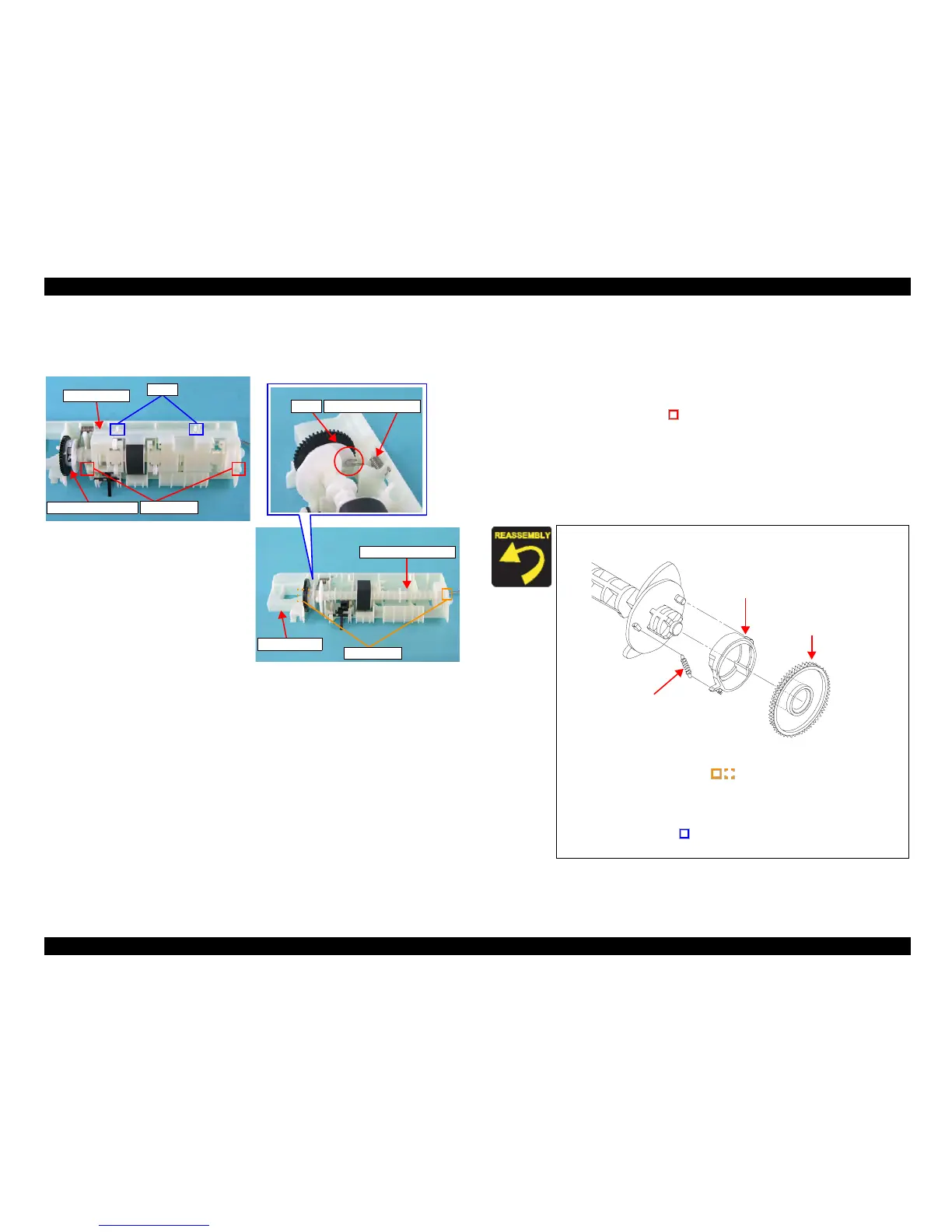

Figure 4-31. Removing Spur Gear 36.8/Extension Spring 0.143/Clutch
 Part/Unit
that should be removed before removing Spur Gear 36.8/
Extension Spring 0.143/Clutch
Document Cover / Panel Unit / Scanner Unit / Housing, Upper / Housing, Lower /
ASF Unit / Holder Shaft Unit
 Removal procedure
1. Release the guide pins (x2, ) that secure the Paper Block to the Holder
Shaft, and remove the Paper Block.
2. Remove the LD Roller Shaft together with the Clutch Mechanism from the
Holder Shaft.
3. Remove the Spur Gear 36.8 from the LD Roller Shaft.
4. Remove the Extension Spring 0.143, and remove the Clutch from the LD
Roller Shaft.
LD Roller Shaft Unit
Holder Shaft
Guide Pins
Torsion Spring 137.7Cam
Paper Block
Guide Pins
Ribs
Clutch Mechanism
 Assemble the LD Roller Shaft Unit as shown below.
Figure 4-32. Assembling LD Roller Shaft Unit
 Match the
guide pins (x2, ) of the LD Roller Shaft with the
positioning holes of the Holder Shaft.
 Hold d
own the Cam of the LD Roller Shaft with the tip of the
Torsion Spring 137.7.
 Match the
ribs (x2, ) of the Holder Shaft with the notches (x2)
of the Paper Block.
Clutch
Extension Spring 0.143
Spur Gear 36.8
