EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
APPENDIX Connector Summary 197
7.1 Connector Summary
7.1.1 Major Component Unit
The major component units of this printer are as follows.
Main Board (C6
57 Main)
Po
wer Supply Board (C610 PSB/PSE)
Pan
el Board (C571 PNL/C657 PNL)
Head Board (C6
54 HEAD)
The figure below shows how to connect these components.

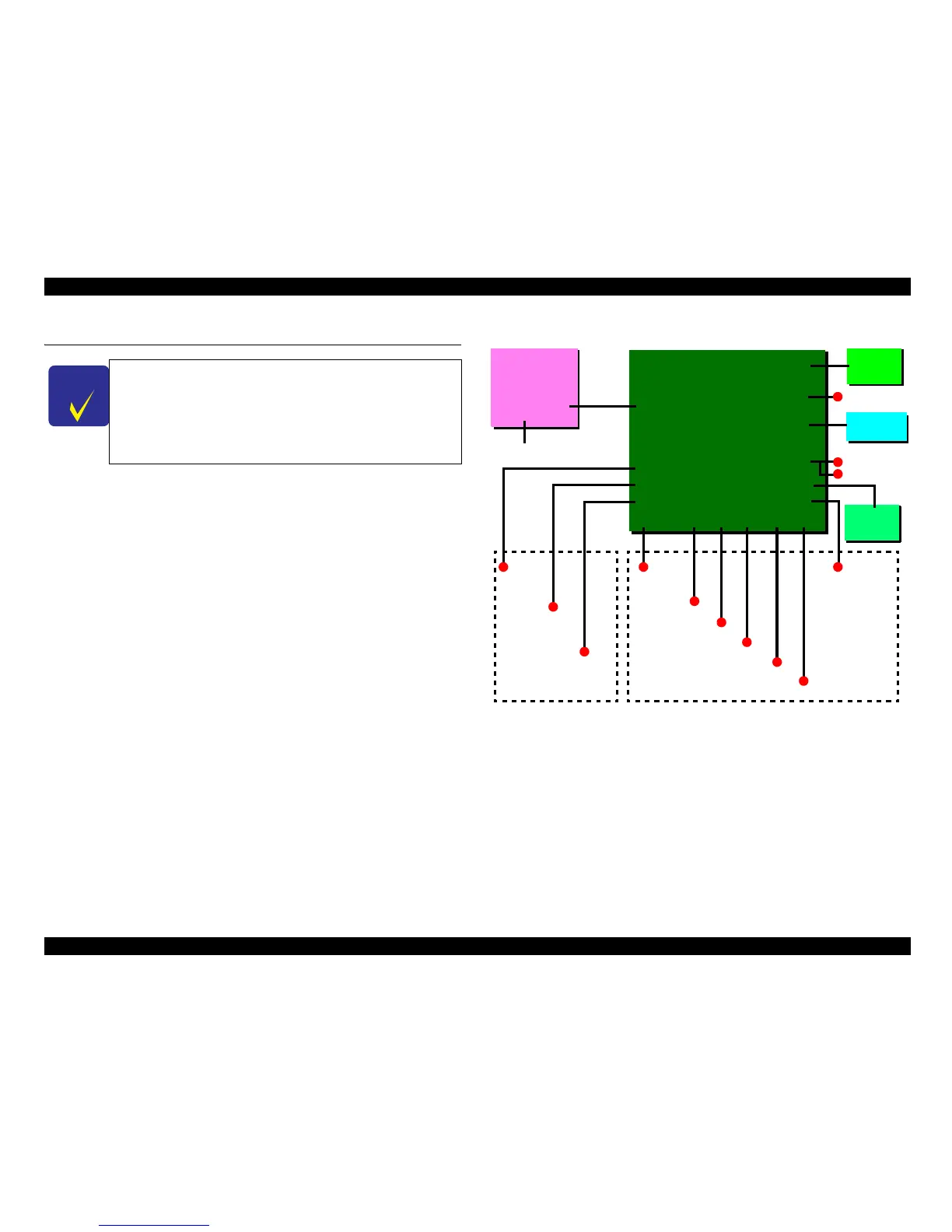

Figure 7-1. Connection of the major components
Note *1: Stylus CX4900/CX4905/CX5000/DX5000/DX5050 only
*2: Stylus CX5900/CX6000/DX6000/DX6050 only
C H E C K
P O I N T
The Panel Board for Stylus CX4900/CX4905/CX5000/DX5000/
DX5050 is different to Stylus CX5900/CX6000/DX6000/DX6050.
Note that different panels are connected to different connectors
on the Main Board.
• Stylus CX4900/CX4905/CX5000/DX5000/DX5050: C571 PNL (CN12)
• Stylus CX5900/CX6000/DX6000/DX6050: C657 PNL (CN18)
C654
HEAD
P1
PF Encoder
Sensor
C657 Main
CN3
CN1
C610 PSB/PSE
CN2
AC power
Printer
Mechanism
USB2.0 I/F
CN2
CN13
CN11
CN10
Scanner HP
Sensor
Scanner
Carriage FFC
Scanner Motor
Scanner
Mechanism
PE Sensor
CN4
PG Sensor
CN5,
CN6
Print Head
CN8
CR Motor
CN12*
1
/CN18*
2
CN9
PF Motor
C571 PNL*
1
/
C657 PNL*
2
CN14, CN15
Memory
Card
CN16
USB Host
I/F Board
CN7
CN17
CR Encoder
PW Sensor
