DISASSEMBLY/ASSEMBLY Printer Section 160
 External view (2)

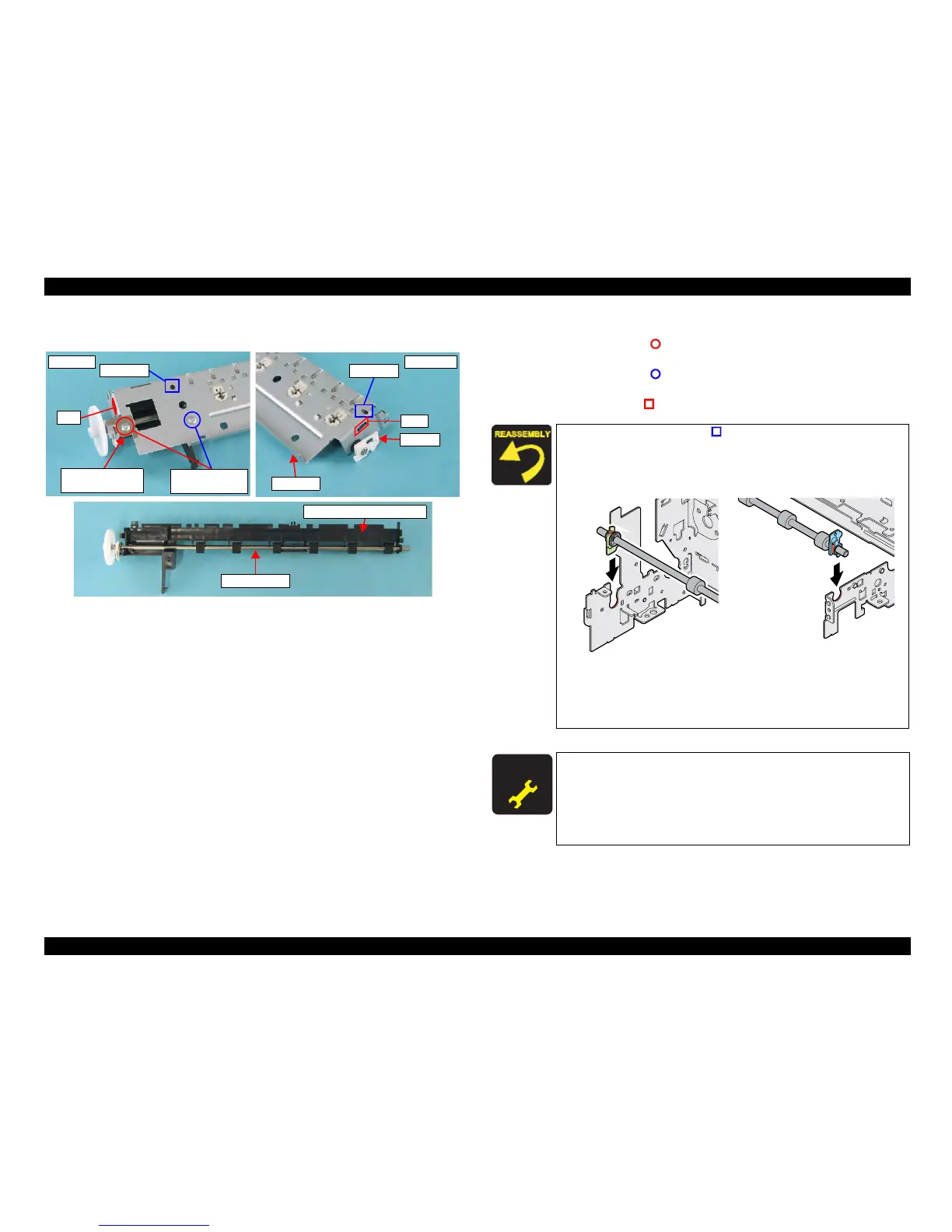

Figure 4-45. Removing EJ Roller Unit
6. Remove the right Bush 5 from the EJ Frame Unit.
7. Remove the screw (x1, ) that secures the EJ Frame Grounding Plate, and
remove the EJ Frame Grounding Plate.
8. Remove the screw (x1, ) that secures the Front Paper Guide Support.
9. Remove the Front Paper Guide Support together with the EJ Roller Unit while
releasing the tabs (x2, ) that secure the Front Paper Guide Support.
EJ Frame
Right Side
Guide Pin
Tab
Bush 5
Left Side
Tab
Guide Pin
C.B.P. 3x6 F/Zn
(4±1kgfcm)
EJ Frame
Grounding Plate
Front Paper Guide Support
EJ Roller Unit
 Match the guide pins (x2, ) of the Front Paper Guide Support
with the positioning holes (x2) of the EJ Frame.
 Co
nfirm that Bush 5s on both sides are securely inserted into the
notches of the Main Frame.
Figure 4-46. Installing Bush 5s
 Make sure that
there is no gap between the EJ Frame Unit and
the Main Frame.
 Check if the EJ Roller Unit moves smoothly.
A D J U S T M E N T
R E Q U I R E D
 After replacing the Front Paper Guide Support with a new one,
always apply grease G-46 to the specified parts.
• Refer to Figure 6-8 (p194) for details.
 After removing/replacing the EJ Frame Unit, perform the
adjustment referring to Table 5-1."Required Adjustments"
(p172)
Left Side Right Side§
