Epson TM L90 Technical Reference Guide

Setup 63
TM-L90/TM-L90 Peeler Model Technical Reference Guide
Note:

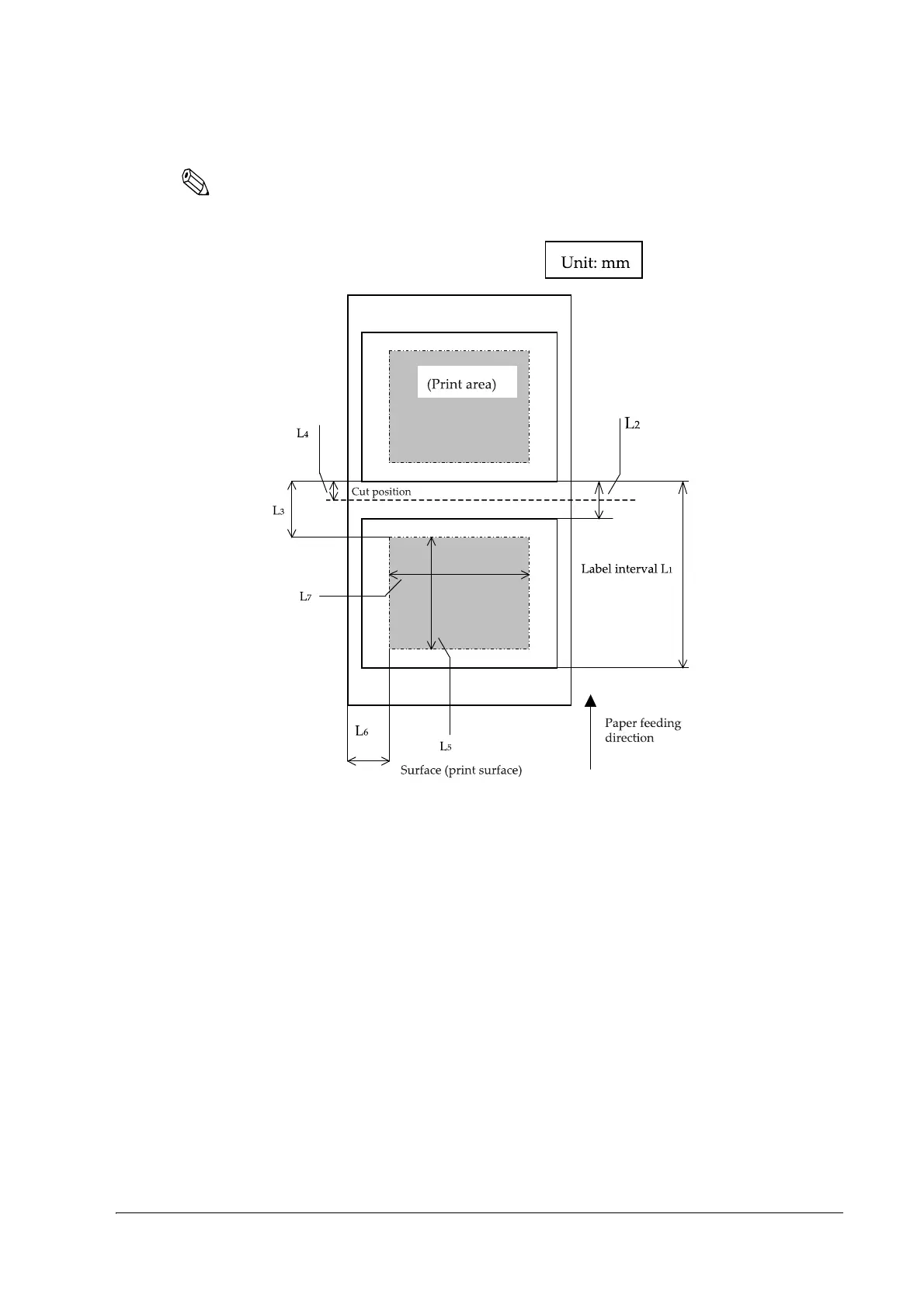

L1 and L2 are measured by the printer. See the following sketch for the lengths L1 to L7.
Parameters Calculated for Automatic Layout Setting
❏ Manual paper layout setting
Manual paper layout setting is to directly enter paper data into the non-volatile memory of
the printer to execute the "paper layout setting" function. As compared to automatic setting,
manual setting enables finer adjustment of the paper layout. You can set the paper type,
mark-to-mark distance, mark length, paper width and print area.
This "manual paper layout setting" can be used in either of the following two methods. Refer
to the corresponding manuals for how to use these methods.
• Use the Memory Switch Setting Utility.
(Manual: Memory Switch Setting Utility, User's Manual)

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
