106
- on the middle display, the "Err" indication
- on the lower display,
- for configuration or run time parameter, it will show
the mnemonic code of the group with the wrong
parameter setting.
- for calibration parameter, it will show the mnemonic
code of the wrong calibration parameter.
The device resets automatically after a time out of 6 s (20 s if
serial link is enabled)
Configuration and run time parameter errors.
When one of this error is detected, following the procedures
described for standard parameter modification reach the group
with the wrong parameter setting and correct it (every keystroke
restarts the time out. The time out is disabled when modify
configuration parameters mode is enabled)
When the error is corrected push “MENU” until the device resets
(if in run mode) or end the modify configuration parameters
mode following the normal procedure.
Repeat the above described procedure if another error is shown.

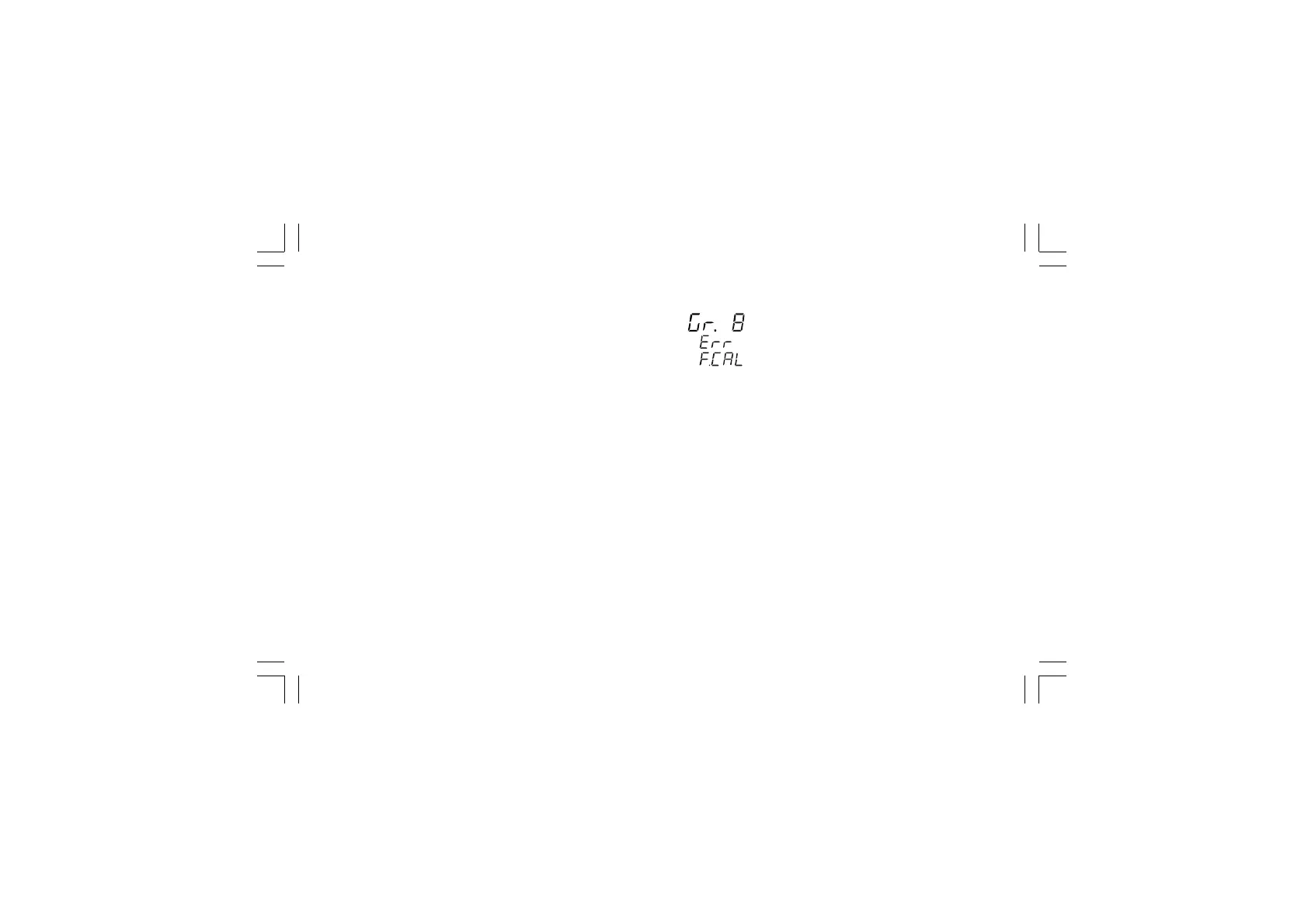

Feedback potentiometer adjustment error
If this error is detected (span less than 20% of
complete potentiometer travel) push any key to
load default calibration parameters
Then remake the calibration following the
normal procedure (see Gr.8 [r.Hxx]).
Calibration parameter errors
The instrument will show on the lower display one of the
following indications:
ñ.I.tc = main termocouple input calibration error
ñ.I.CJ = could junction compensation error
ñ.I.rt = main RTD input calibration error
ñ.I.ñA = main mA input calibration error
ñ.I.5 = main 5V input calibration error
ñ.I.10 = main 10 V input calibration error
A.I.ñA = auxiliary mA input calibration error
A.I.5 = auxiliary 5V input calibration error
A.I.10 = auxiliary 10 V input calibration error
In.Ct = current transformer input calibration error
FEEd = electrical feedback input calibration error
05.ñA = output 5 mA calibration error
06.ñA = output 6 mA calibration error
When one of these errors is detected, contact your supplier.
