CnF. 2
42

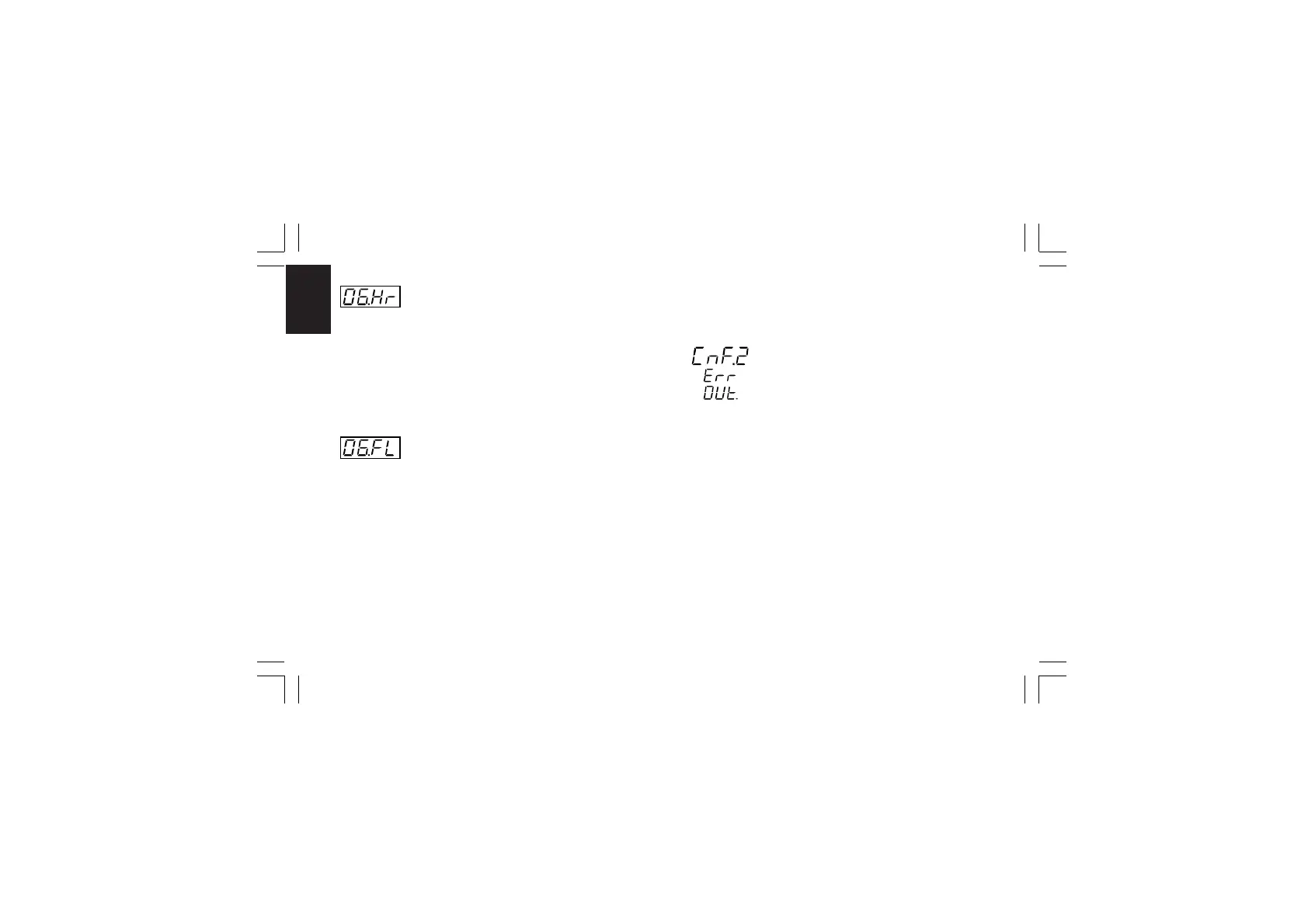

- OUT 6 retransmission full scale value
- [C.E15]
This parameter will be available only when Out 6 function
[C.E12] is configured as “PV.rt” or “SP.rt”
Range: From -1999 to 9999
NOTE: Decimal point is positioned as previously selected at
“CnF.1 - ñ.In.d” [C.d03])
- OUT 6 filter on the retransmitted value
- [C.E16]
This parameter will be available only when OUT 6 is configured
as process variable retransmission ("O6.Fn" [C.E12] is equal to
“PV.rt”).
Range: From 0 (no filter) to 8 seconds
NOTE: this is a first order digital filter applied to the retransmit-
ted output value.
General notes on configuration group 2
I) Exiting from the configuration group 2 the instrument verifies
automatically the congruence of all parameters. If a wrong
setting is detected, the device will show:
The group 2 parameter passes the congruence test when:
1) Only one of the 6 outputs is configured as main output
(“ñAin”)
2) Only one of the 6 outputs is configured as secondary
output (“SECn”)
3) If only one control output is configured, it should be the
main control output (“ñAin”)
4) The servomotor must be “close loop” type if it is one of two
control outputs.
NOTE: The instrument may be used as an indicator, so that this
test is satisfied even if no output is configured as control output
II) Exiting from the configuration group 2 also the following
actions are automatically performed:
A) The "Añ.UL” parameter ("Output value for auto to manual
transfer" [C.G04]) will be forced to "bumpless" (“buñ”) if:
Xkc-1-C0.P65 5/29/02, 11:59 AM42
