CnF. 3
47

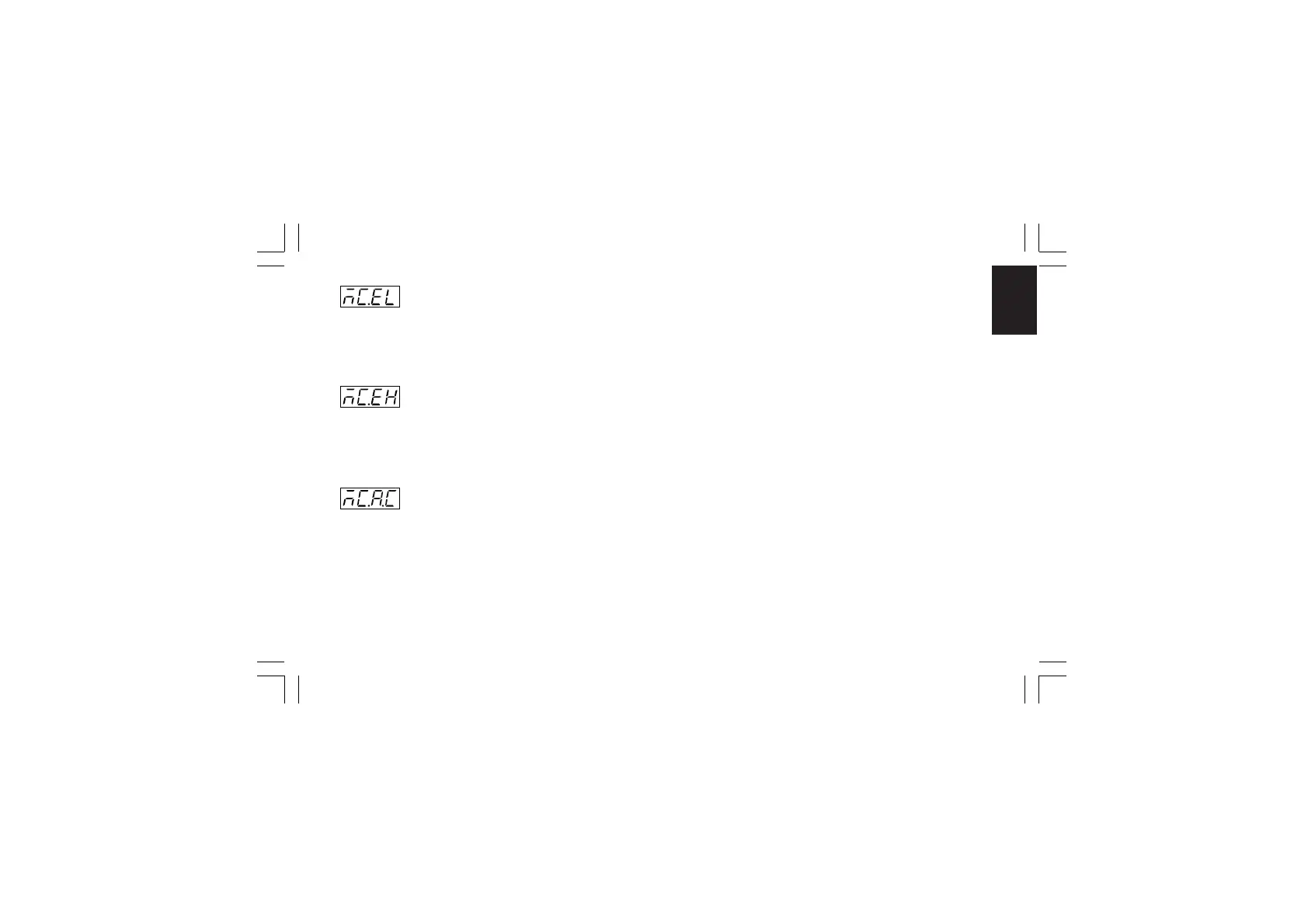

- Main output initial scale readout - [C.F09]
This parameter will be available only when "ñ.SCL" ("Main
control output in engineering units" [C.F07]) is set to "YES".
Range: from -199 to 999
- Main output full scale readout - [C.F10]
This parameter will be available only when "ñ.SCL" ("Main
control output in engineering units" [C.F07]) is set to "YES".
Range: from -199 to 999
- Main output auxiliary conditioning - [C.F11]
This parameter will be available only when main control output is
configured and “ñC.Cn” ("Main control output conditioning"
[C.F06]) is different from “norñ”.
Range: bEFr = The functions listed at Note (**) are calculated
before to apply the action selected by “ñC.Cn”
("Main control output conditioning" [C.F06])
parameter.
AFtr = The functions listed at Note (**) are calculated
after to apply the action selected by “ñC.Cn”
(“Main control output conditioning” [C.F06])
parameter.
Note (**)
- "Main control output limiters" - for more details see [r.E04]
and [r.E05] parameters.
- "Main control output max rate of rise" (see [r.E06]).
- "Control output display value" - for more details see "Display
function" paragraph at pag. 62 and [C.F07], [C.F08], [C.F09]
and [C.F10] parameters.
- "Threshold for alarm on control output value" - for more
details see [r.F01], [r.F05] [r.F09] and [r.F13] parameters.
- The control output value displayed by bargraph.
