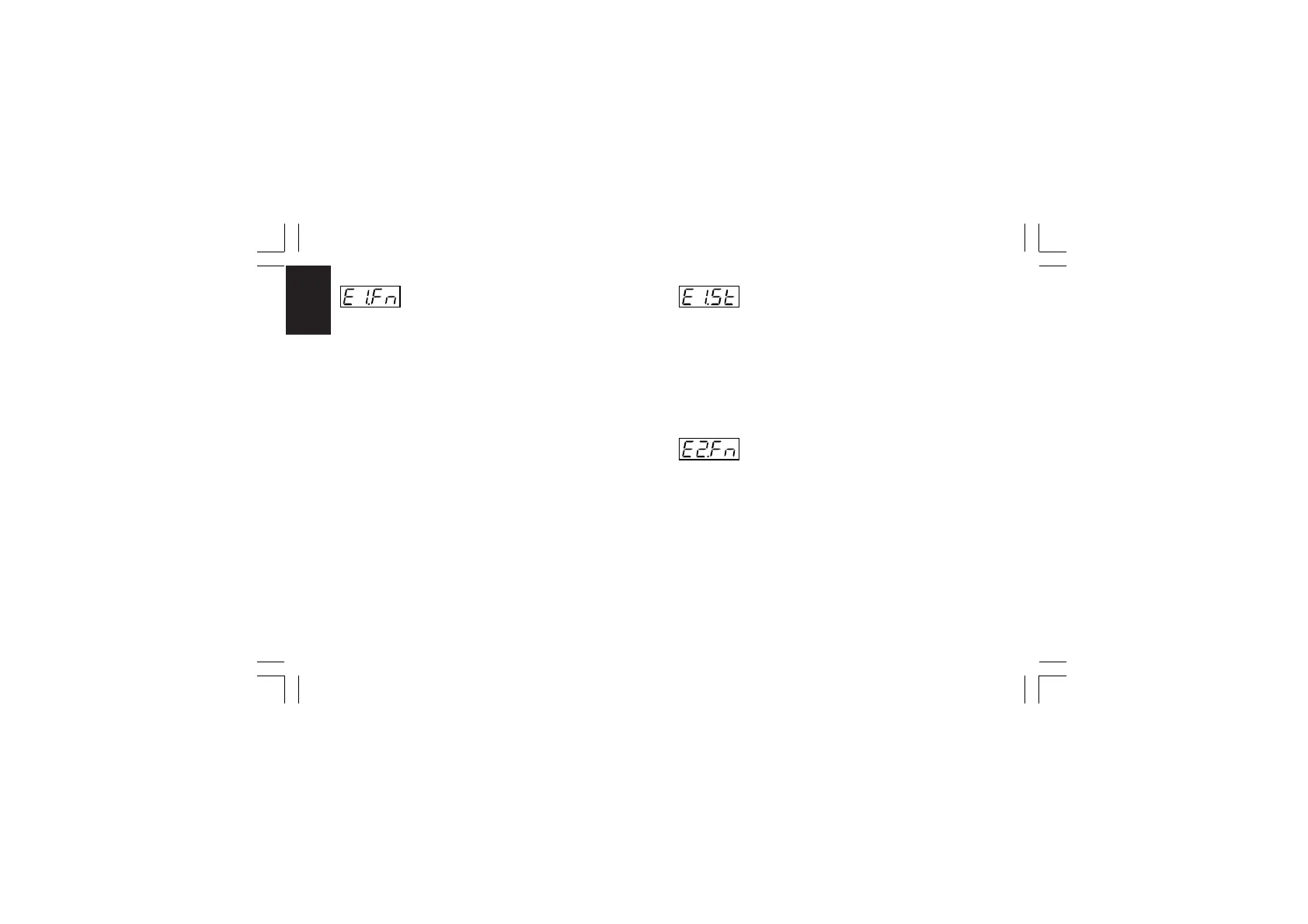

- Event 1 function - [C.H07]
This parameter will be available only when OUT 1 is configured
as event annunciator ("O1.Fn" [C.E01] is equal to “Eun.1”).
Range: ñ.In.E= Error condition (Over-Under-Open-Shrt) on
main input (Logic level “1” when error occurs)
Cj.Er = Error condition on CJ measurement (Logic level
“1” when error occurs)
A.In.E= Error condition (Over-Under-Open) on auxiliary
input (Logic level “1” when error occurs)
ñEA.E = Error condition on any measurement (Logic
level “1” when error occurs)
Au.ñA = Auto/manual mode annunciator (Logic level “1”
when device is in manual mode)
SP.L.r = Local/Remote set point annunciator (Logic level
“1” when remote set point is used)
- Event 1 contact status - [C.H08]
This parameter will be available only when OUT 1 is configured
as event annunciator ("O1.Fn" [C.E01] is equal to “Eun.1”).
Range: CLSd = The output is at logic level “1” when contact is
closed
OPEn = The output is at logic level “1” when contact is
open
- Event 2 function - [C.H09]
This parameter will be available only when OUT 2 is configured
as event annunciator ("O2.Fn" [C.E02] is equal to “Eun.2”).
Range: ñ.In.E= Error condition (Over-Under-Open-Shrt) on
main input (Logic level “1” when error occurs)
Cj.Er = Error condition on CJ measurement (Logic level
“1” when error occurs)
A.In.E= Error condition (Over-Under-Open) on auxiliary
input (Logic level “1” when error occurs)
ñEA.E = Error condition on any measurement (Logic
level “1” when error occurs)
