ero electronic MKC - Main Input Selection

20

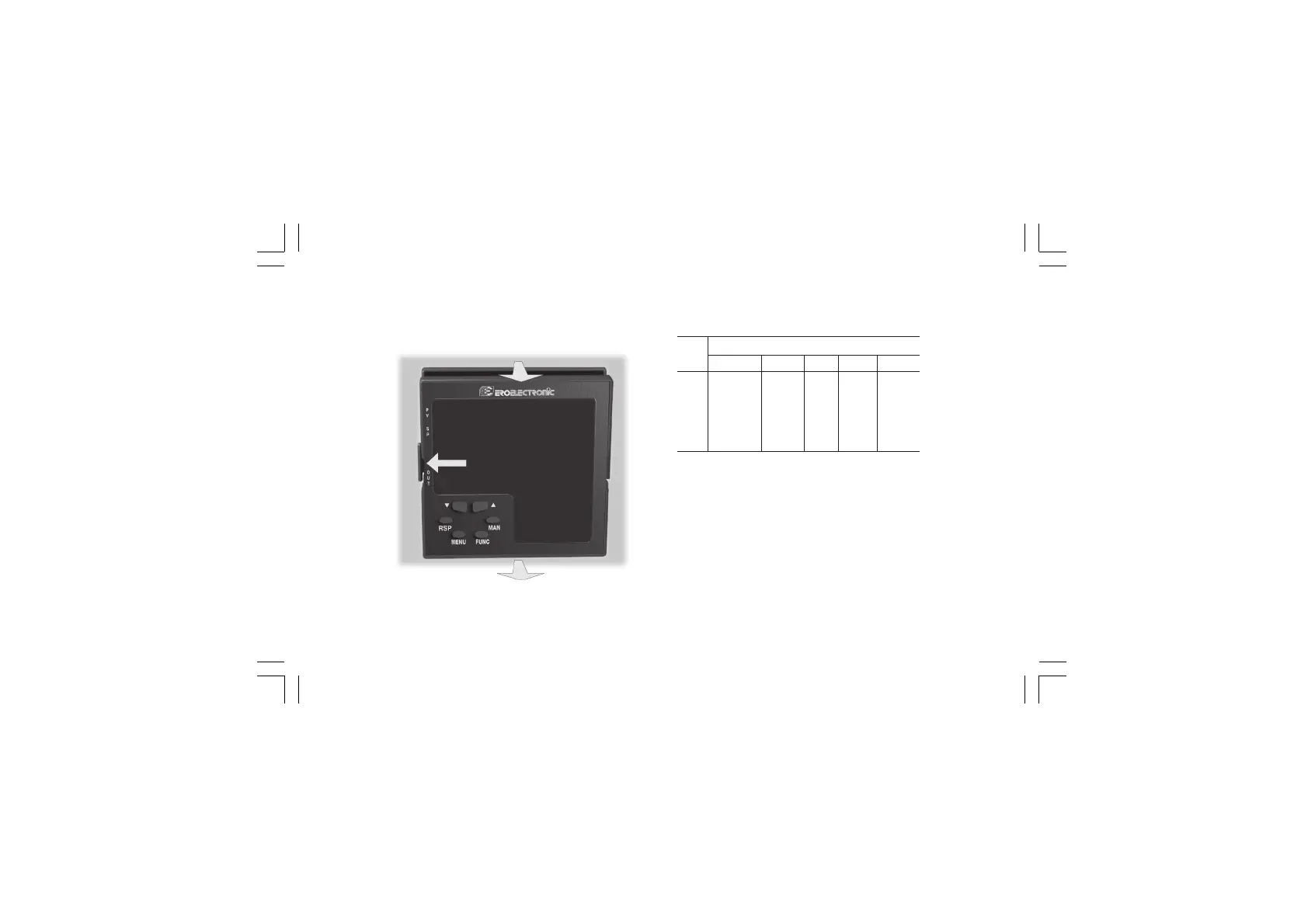

Fig. 19.b
4) Push gently the lock C on the left.
5) While the lock C is maintained out, slide out the instrument
(see fig. 19.b)
MAIN INPUT SELECTION
Set J103 (see fig. 20) according to the desired input type as
shown in the following table.
J103 INPUT TYPE
T/C, RTD 60 mV 5 V 10 V 20 mA
1-2 open open close open open
3-4 open open close close open
5-6 open open open open close
7-8 open open open open close
5-7 close close open close open
6-8 close close open open open
D
C
D
