ero electronic MKC - Configuration Group 6 [C.Ixx]

CnF. 6
59
General notes on configuration group 5
1) Digital input function selection should be “consistent” with other
configuration parameters otherwise this digital input will remain
unused.
2) Changing menu the device will check that the same function is
not assigned to more than one digital input, otherwise the display
will show:

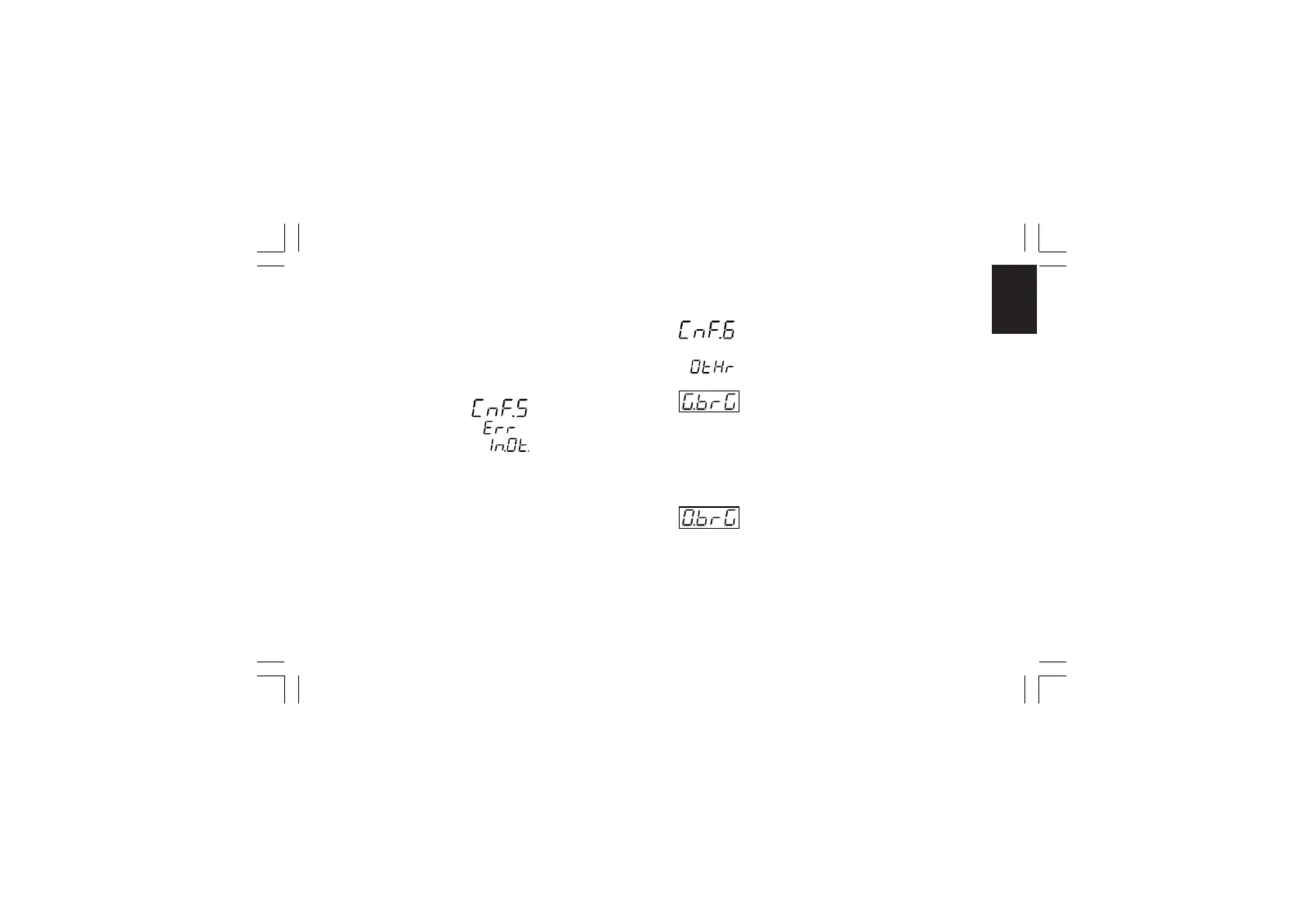

CONFIGURATION GROUP 6 [C.Ixx]
OTHERS CONFIGURATION PARAMETERS
- Green bargraph function - [C.I01]
This parameter will be available for MKC models only.
Range: Pr.Ur = the green bargraph will show the process
variable value
DEV. = the green bargraph will show the deviation
(measured value minus set point)
- Orange bargraph function - [C.I02]
This parameter will be available for MKC models only.
Range: OP.SP= On bargraph is shown the operative set point
value
P.Out. = On bargraph is shown the process output value
