ero electronic MKC - OUT 5 Filter on the Retransmitted Value; OUT 6 Function; OUT 6 Range; OUT 6 Retransmission Initial Scale Value

CnF. 2
41

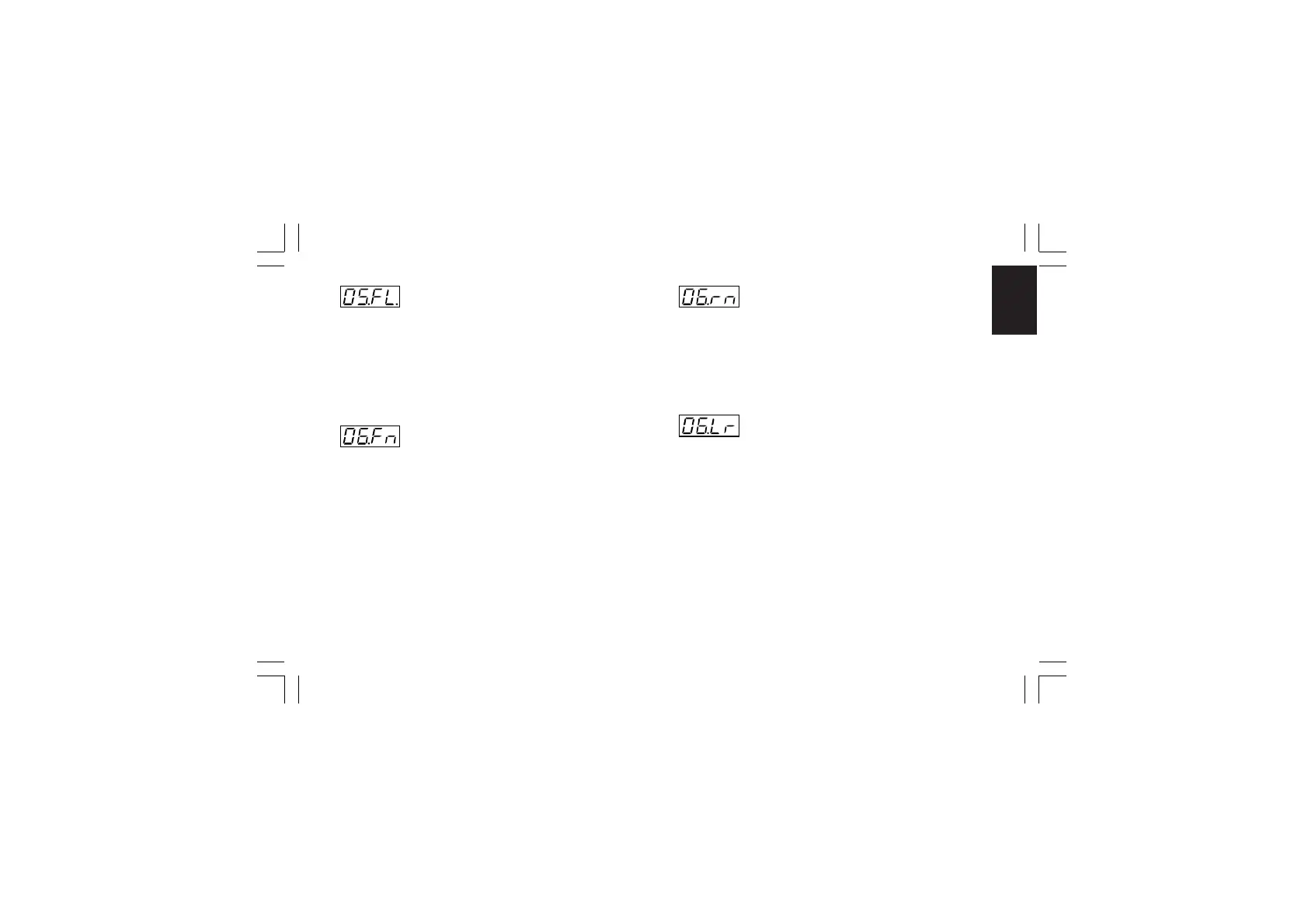

- OUT 5 filter on the retransmitted value
- [C.E11]
This parameter will be available only when OUT 5 is configured
as process variable retransmission ("O5.Fn" [C.E07] is equal to
“PV.rt”).
Range: From 0 (no filter) to 8 seconds
NOTE: this is a first order digital filter applied to the retransmit-
ted output value.
- OUT 6 function - [C.E12]
Range: nonE = Output not used
ñAin = Main control output (linear)
SECn = Secondary control output (linear)
PV.rt = Process variable retransmission
SP.rt = Operative set point retransmission
NOTE: When the option circuitry is not mounted the middle
display will show “no.Pr” (not present).
- OUT 6 range - [C.E13]
This parameter will be available only when Out 6 is configured
("O6.Fn" [C.E12] different from "nonE")
Range: 0-20 = 0¸20 mA
4-20 = 4¸20 mA
- OUT 6 retransmission initial scale value
- [C.E14]
This parameter will be available only when Out 6 function
[C.E12] is configured as “PV.rt” or “SP.rt”
Range: From -1999 to 9999
NOTE: Decimal point is positioned as previously selected at
“CnF.1 - ñ.In.d” [C.d03].
