Gr.6
95

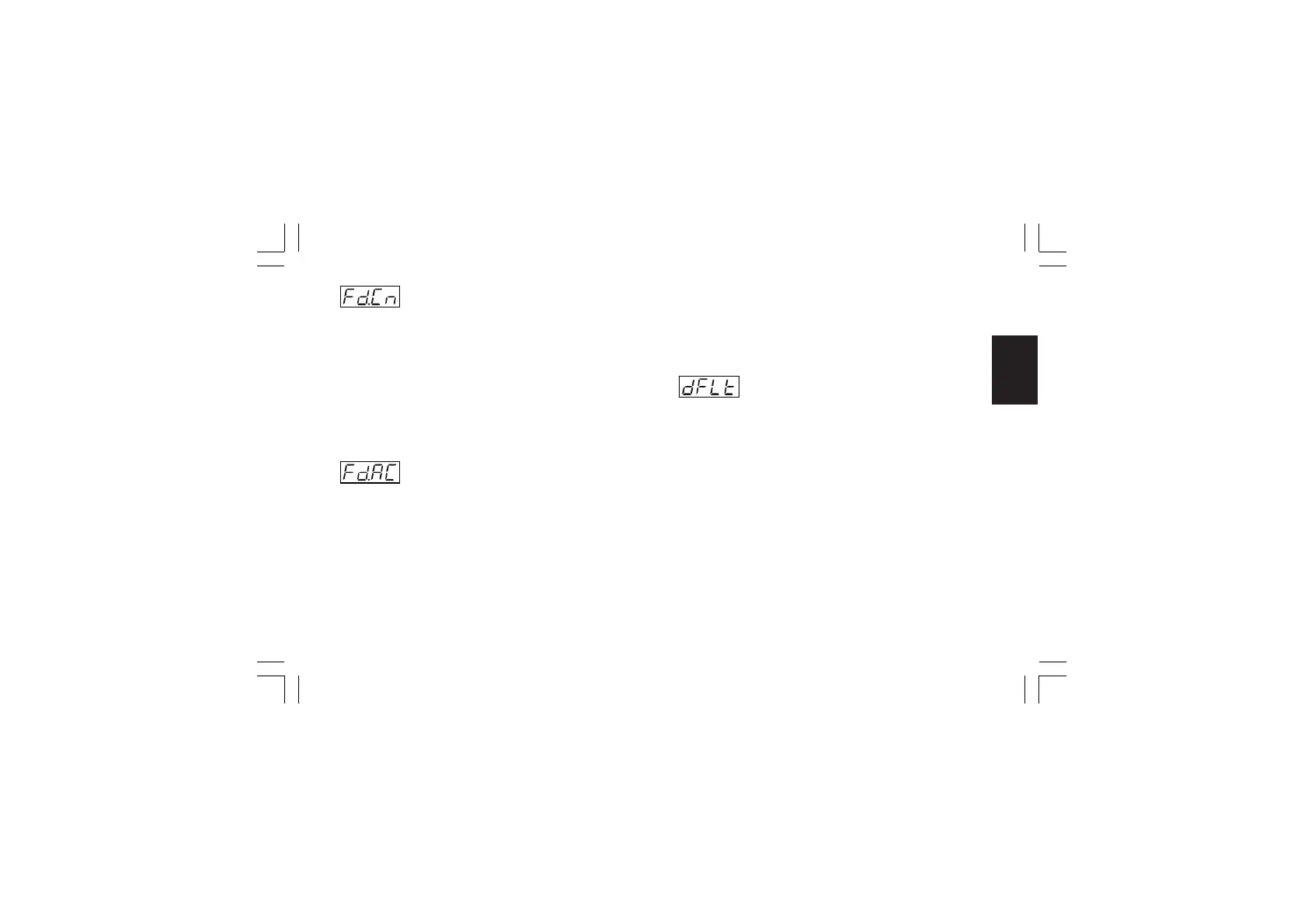

- OFD (Output Failure Detection) alarm
configuration - [r.F17]
This parameter is available only when OFD option is configured
(“Fd.Fn” [C.I11] equal to “ñC.On” or “ñC.OF” or “SC.On” or
“SC.OF”).
Range: A. = Alarm with automatic reset
A.Ac = Alarm with automatic reset and acknowledge
L. = Alarm with manual reset
NOTE: When alarm configuration has been changed, the alarm
status will be cleared.
- OFD (Output Failure Detection) alarm action
- [r.F18]
This parameter is available only when one output is configured
as OFD alarm annunciator (“Fd.Fn” [C.I11] equal to “ñC.On” or
“ñC.OF” or “SC.On” or “SC.OF” and “Fd.Ou” [C.I13] is different
from “nonE”).
Range: dir = direct action (Relay energized or SSr=1 in
alarm condition)
rEV = Reverse action (Relay energized or SSr=1 in
non alarm condition)
NOTE: When OFD output is in OR condition with an alarm or an
event output, the “Fd.Ac” parameter can only be monitored but
not modified and it assumes the same action defined (by “Alarm
Action” or “Event Logic Level”) for the alarm or the event.
- Group 6 default data loading - [r.F19]
Range: OFF = No loading data
ON = Loading data
