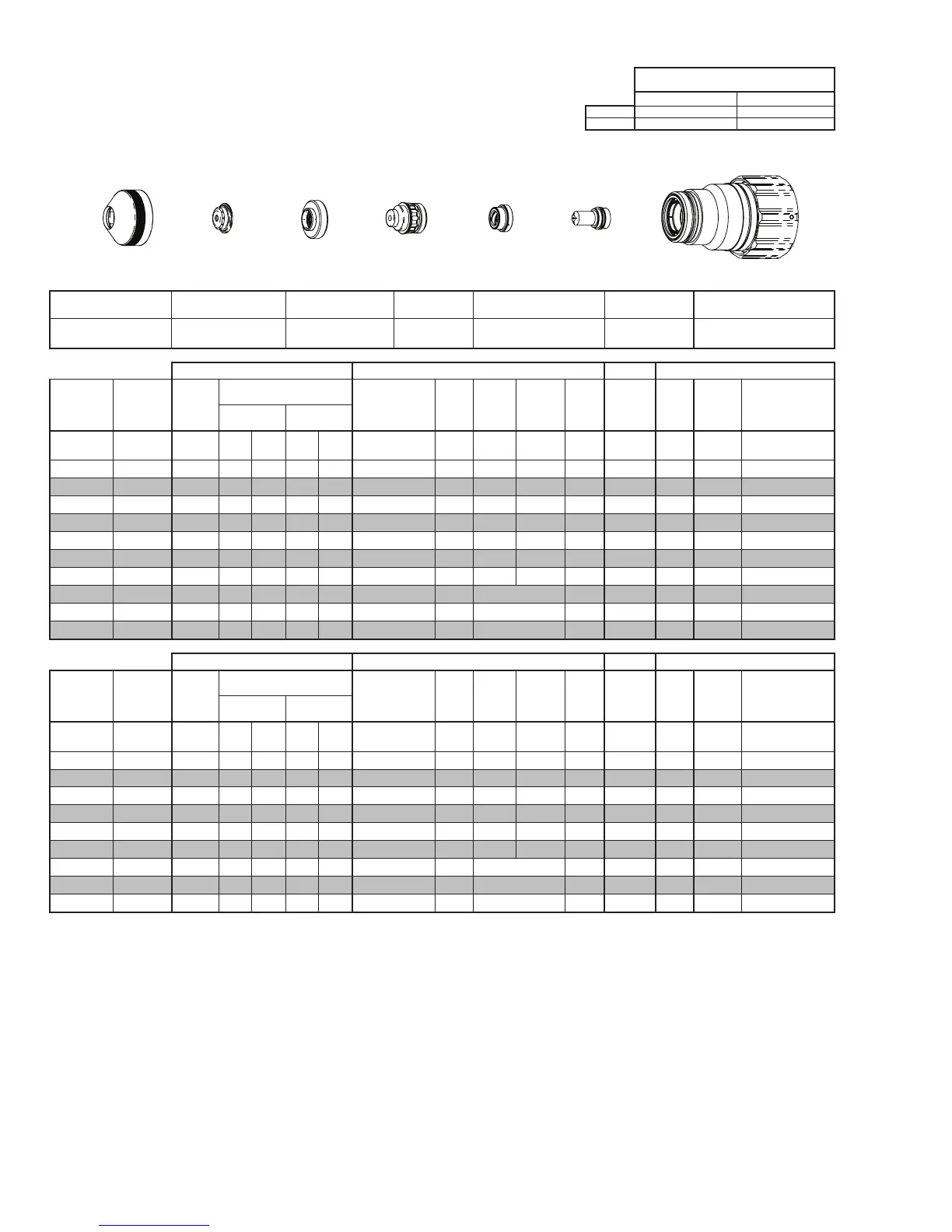

TORCH DATA 100i-400i 188 Manual 0560956430
Stainless Steel
Flow Rates
300A Bevel Cut
N₂ (SLPM / SCFH) H₂O (GPH / LPH)
Preow
23 / 48 8 / 30
N₂ Plasma / H₂O Shield
Culow
63 / 134 8 / 30
Cartridge
Electrode
Shield
Shield Gas
Distributor
Tip
Plasma Gas
Distributor
Shield Retainer
Art # A-08552
This Art Is For Reference ONLY
Shield Retainer Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211211 0559210152 0559210082 0559210131 0559210063 0559210107 0559211300
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
inch (in) (psi) Ball (psi) Ball (psi)* (in) (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
0.375 0.080 20 120 100 8 55 0.150 - 0.550 0.3 0.250 0.200 0.2 0.350 140 0.3 0.144
0.500 0.080 20 120 100 8 55 0.150 - 0.550 0.5 0.250 0.200 0.2 0.350 100 0.5 0.154
0.625 0.080 20 120 100 8 55 0.150 - 0.550 0.8 0.250 0.200 0.2 0.350 75 0.6 0.153
0.750 0.080 20 120 100 8 55 0.200 - 0.550 0.9 0.400 0.300 0.2 0.500 55 0.7 0.173
0.875 0.080 20 120 100 8 55 0.300 - 0.550 1.8 0.400 0.300 0.2 0.500 45 1.1 0.210
1.000 0.080 20 120 100 8 55 0.300 - 0.550 2.1 0.400 0.300 0.2 0.500 40 1.3 0.210
1.250 0.080 20 120 100 8 55 0.350 - 0.550 3.5 0.400 0.300 0.2 0.500 30 2.0 0.230
1.500 0.080 20 120 100 8 55 0.350 - 0.550 1.0 Edge Start 0.2 Edge 25 1.0 0.232
1.750 0.080 20 120 100 8 55 0.350 - 0.550 1.0 Edge Start 0.2 Edge 18 1.0 0.237
2.000 0.080 20 120 100 8 55 0.350 - 0.550 1.0 Edge Start 0.2 Edge 12 1.0 0.253
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
(mm) (mm) (Bar) Ball (Bar) Ball (Bar)* (mm) (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
10 2.0 1.4 120 6.9 8 3.8 3.8 - 14 0.3 6.4 5.1 0.2 8.9 3400 0.3 3.7
12 2.0 1.4 120 6.9 8 3.8 3.8 - 14 0.5 6.4 5.1 0.2 8.9 2760 0.5 3.9
15 2.0 1.4 120 6.9 8 3.8 3.8 - 14 0.7 6.4 5.1 0.2 8.9 2080 0.6 3.9
20 2.0 1.4 120 6.9 8 3.8 5.8 - 14 1.2 10.2 7.6 0.2 12.7 1320 0.8 4.7
25 2.0 1.4 120 6.9 8 3.8 7.6 - 14 2.1 10.2 7.6 0.2 12.7 1030 1.3 5.3
30 2.0 1.4 120 6.9 8 3.8 8.5 - 14 3.1 10.2 7.6 0.2 12.7 830 1.8 5.7
35 2.0 1.4 120 6.9 8 3.8 8.9 - 14 1.0 Edge Start 0.2 Edge 720 1.0 5.8
40 2.0 1.4 120 6.9 8 3.8 8.9 - 14 1.0 Edge Start 0.2 Edge 580 1.0 5.9
50 2.0 1.4 120 6.9 8 3.8 8.9 - 14 1.0 Edge Start 0.2 Edge 320 1.0 6.4
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
* Pressure of the water supply line should be regulated by customer pressure regulator.
Note 1: Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with the ohmic sensing circuit.
Note 2: Water source used for shield must be demineralized.
