VIP-X System Manual
Revision 1.0 VIP-X - 1
1. OVERVIEW
The VIP-X simultaneously addresses two common issues by combining a functional and highly reliable
control room routing platform with a modular multi-image display system in one integrated package.
Building the next control room will be simple using the VIP-X, as it enables two complex items in the
control room to function as a single system. The VIP-X eliminates system complexity, saves space and
is more economical compared to the traditional autonomous solutions. The VIP-X can be tailored for all
control room signals and budget requirements. It is available in several package sizes from a 32 input
system with up to 32 router outputs and as many as 24 multi-image displays, or it can be ordered for
larger systems that accommodate up to 288 inputs and 288 router outputs and as many as 72 multi-
image displays.
The VIP-X is constructed around Evertz highly successful model that everything in the system can
either be hot-swappable or redundant where applicable. This philosophy has served Evertz well, as the
MVP was first to introduce the concept and it has become the industry standard in multi-image display
processors.

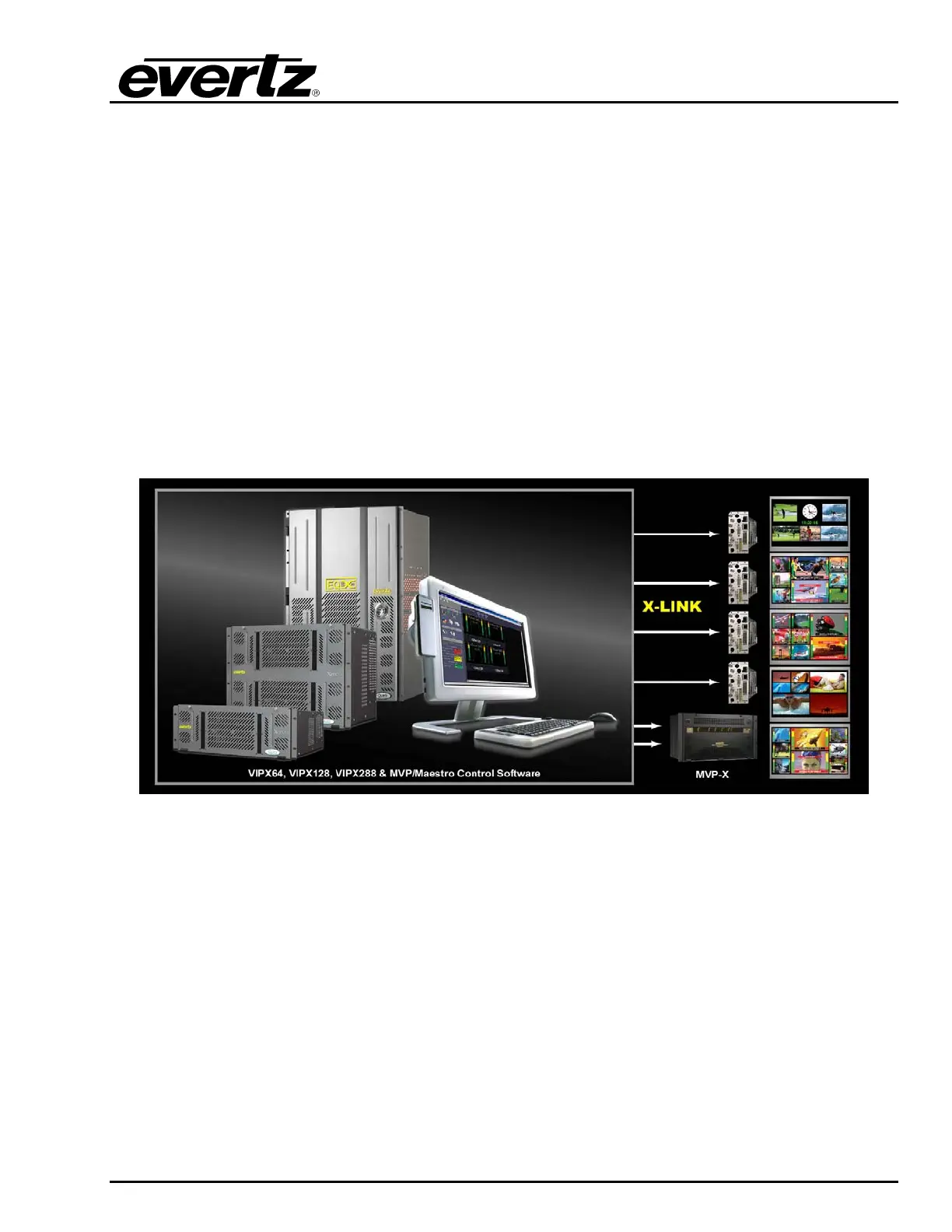

Figure 1-1: VIPX64, VIPX128, VIPX288 & MVP/Maestro Control Software
The new VIP-X control room solution from Evertz represents the best of Evertz technology:
• Advanced routing technology: Xenon & EQX
• Advanced multi-viewer technology: MVP & VIP
• Advanced user control system: MVP server and Maestro software
