VIP-X System Manual

Revision 1.0 VIP-X - 25

5. 7767VIPX8X2, 7767VIPX16X2 MODULES

The 7767VIPX8x2 and 7767VIPX16x2 modules come with a companion rear plate. The rear panel

(7767VIPX-RP2) for the 7767VIPX display modules supports up to two 7767VIPX16x2 modules, or up

to two 7767VIPX8x2 modules. The 7767VIPX-RP2 occupies 5 slots in the 7700FR-D frame.

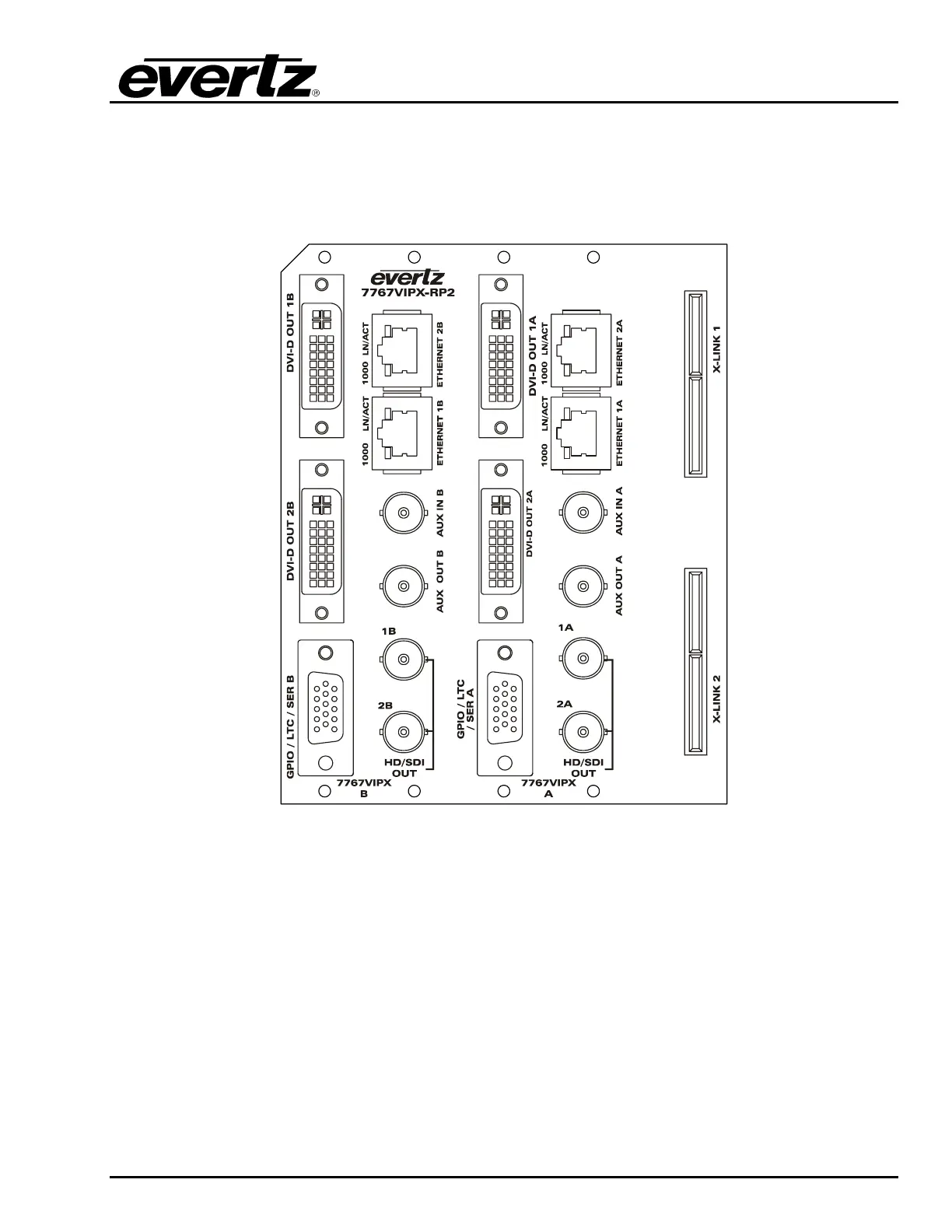

Figure 5-1: 7767VIPX-RP2 Rear Plate

5.1. VIDEO INPUTS AND OUTPUTS

X-LINK: The 7767VIPX8x2 has 2 X-LINK connector inputs that auto sense 3Gb/s, HD-SDI and

SD-SDI, or 10-bit serial digital video signals compatible with the SMPTE 424M,

SMPTE 292M and SMPTE 259M-C standards. Since the 7767VIPX-RP2 rear panel

accommodates two VIP-X modules, the rear plate has two X-LINK connectors (one for

each VIP-X module).
