2.2.9. 7767VIPX-RP2
The rear panel for the 7767VIPX display modules supports up to two 7767VIPX16x2 modules, or up to
two 7767VIPX8x2 modules. The 7767VIPX-RP2 occupies 5 slots in the 7700FR-D frame. It provides
connectivity from the router to the 7767VIPX display module inputs via the X-LINK connector. There
are two X-LINK connectors on the rear plate, which allows for separate sources of X-LINK to connect to
the 7767VIPX module. The outputs of the 7767VIPX module are connected via the 7767VIPX-RP2,
which include the following:
• x2 DVI outputs per 7767VIPX module
• x2 HD-SDI outputs per 7767VIPX module
• x2 Ethernet outputs per 7767VIPX module
• x1 GLINK input per 7767VIPX module
• x1 GLINK output per 7767VIPX module
• x1 HD15 connector used for GPI/O, RS-232/422, and LTC

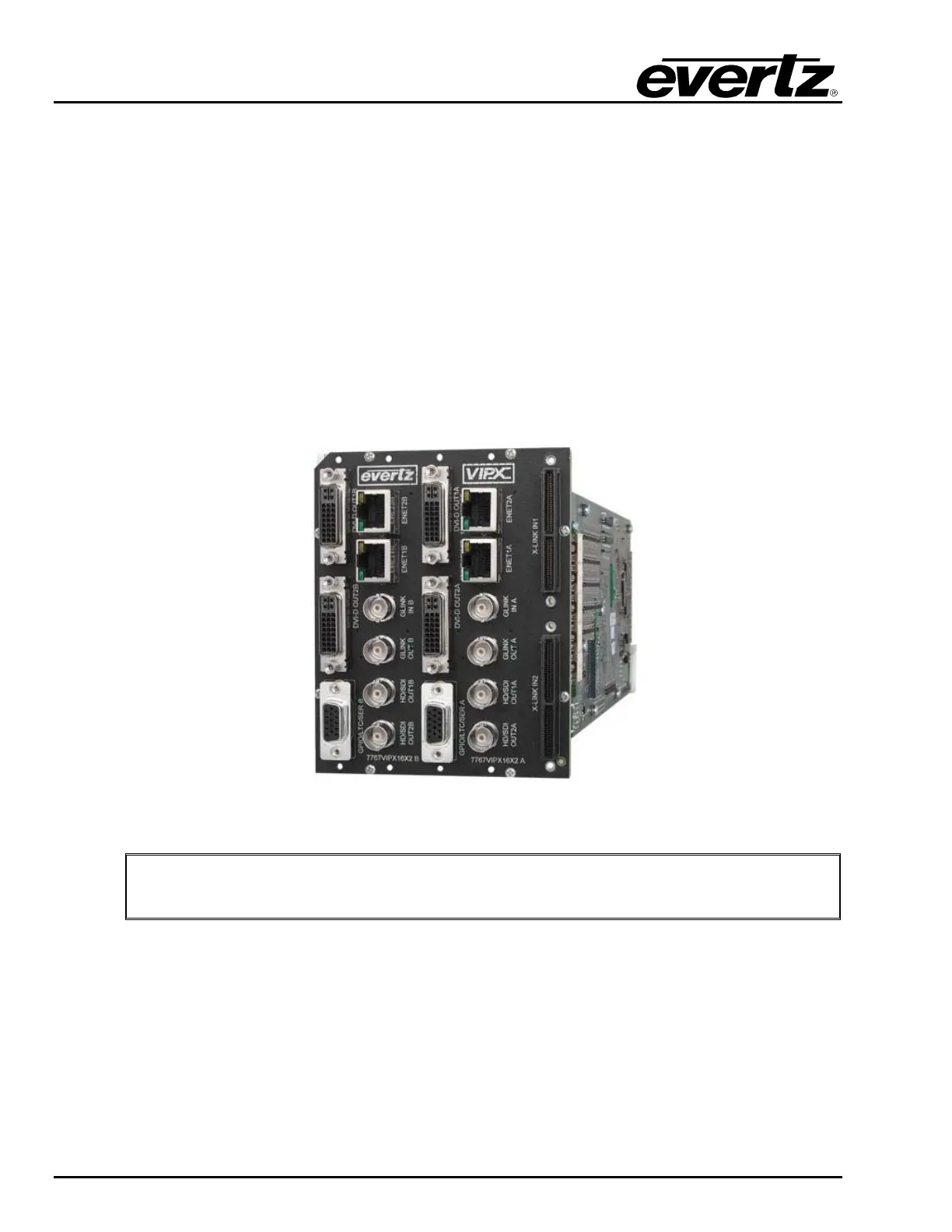

Figure 2-14: VIPX-RP2 Rear Plate
"
For specific details as to the specifications for each of the connections see
section 6.1 and 6.2.
