VIP-X System Manual
VIP-X - 20 Revision 1.0
"
Both primary and redundant cross points must be installed in the router to enable
the outputs for the EQX-OP36-XLINK output card.
"
No cross point redundancy is available when using this output card.
"
The output slot in the opposite half of the router cannot be an EQX-OP36-XLINK or
EQX-OP36-MON card. It can only be an EQX-OP18H card or similar; the standard
output card will not have access to the redundant cross point.
3.2.4. Installing the 7767VIPX-RP2 Rear Plate in the 7700FR-D frame
The 7767VIPX-RP2 is installed in the 7700FR-D or 7700FR-DQ frame. The rear plate occupies 5 slots
in the frame; a maximum of two 7767VIPX-RP2 rear plates can be installed in the 7700FR-D frame.
The 7767VIPX-RP2 cannot be installed in the 7700FR-C or 350FR frame. The recommended
placement of the rear plate in the 7700FR-D frame is as follows: RP1 occupies slots 1, 2, 3, 4, 5 and
RP2 occupies slots 11, 12, 13, 14, 15. See Figure 3-4 below for details on recommended rear
positions in the 7700FR-D frame.

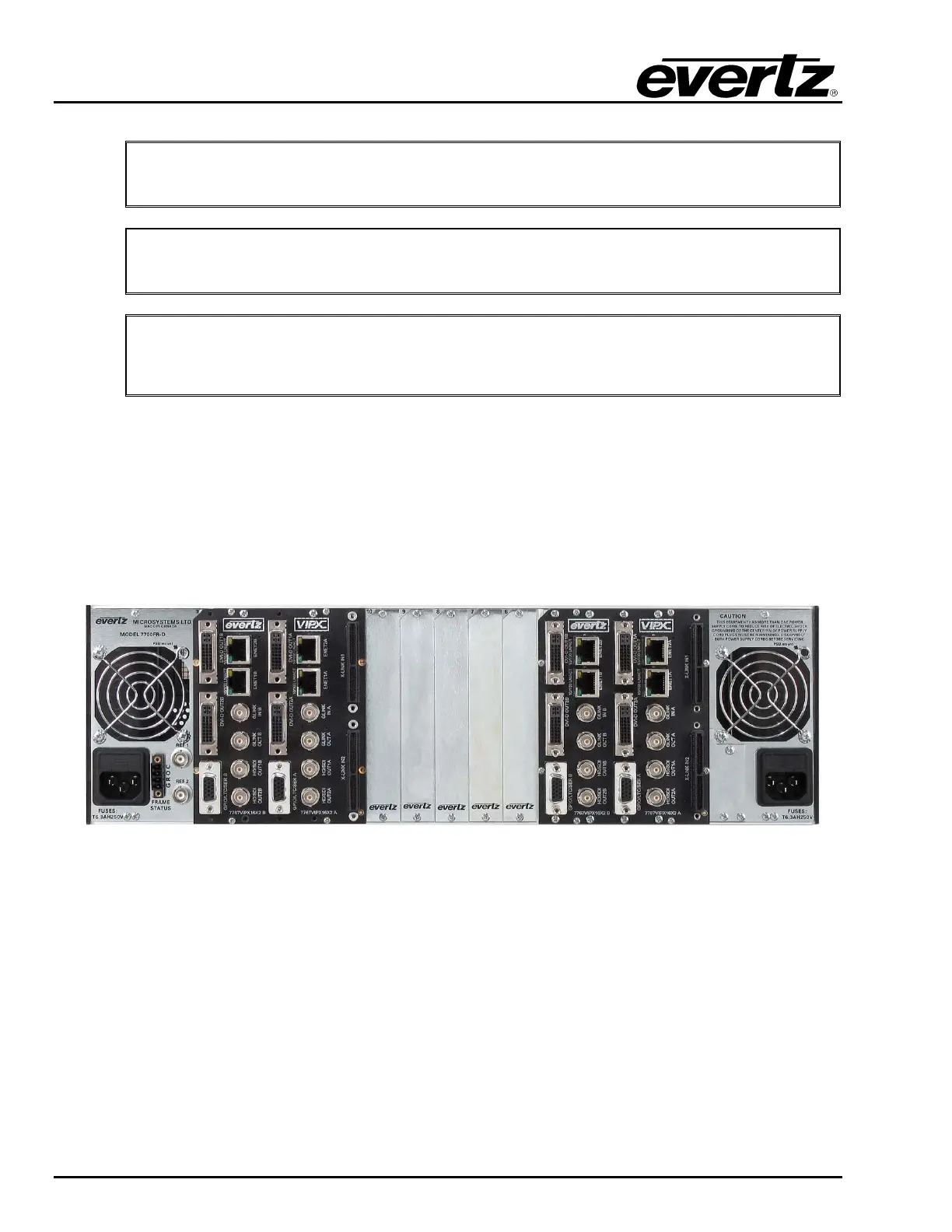

Figure 3-4: 7700FR-D with Two 7767VIPX-RP2 Installed
