VIP-X System Manual
VIP-X - 8 Revision 1.0
2.2. VIP-X COMPONENTS
2.2.1. XE-OP32SX-XLINK
Xenon output module with 32 SD-SDI outputs via mini-BNC (DIN) outputs plus three (3) X-LINK outputs
(see Appendix A for information on DIN connectors). A single XE-OP32SX-XLINK output card can be
installed in the Xenon 4RU router, and two XE-OP32SX-XLINK output cards can be installed in the
Xenon 8RU router.

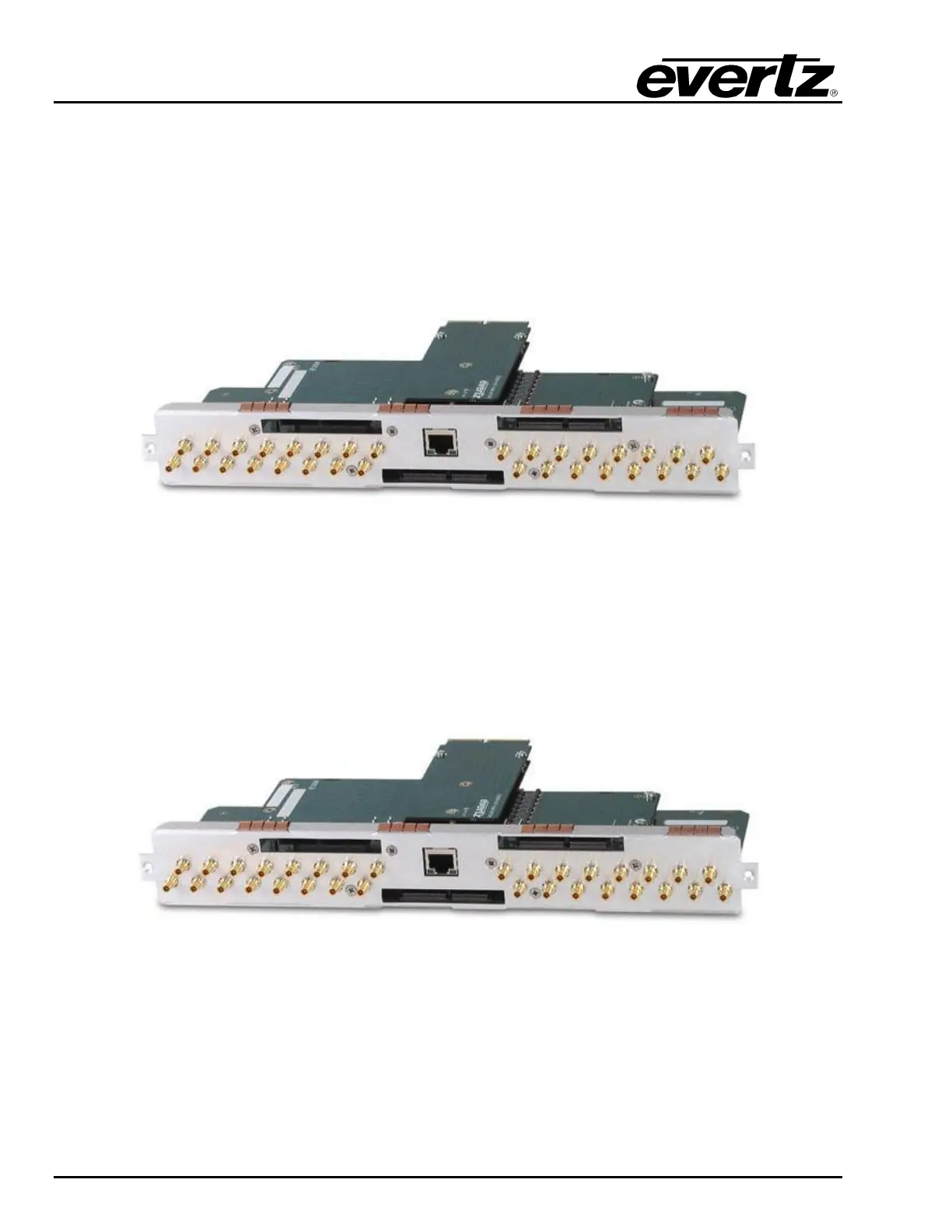

Figure 2-5: XE-OP32SX-XLINK
2.2.2. XE-OP32HX-XLINK
Xenon output module with 32 HD-SDI/SD-SDI outputs via mini-BNC (DIN) outputs plus three (3) X-
LINK outputs (see Appendix A for information on DIN connectors). A single XE-OP32HX-XLINK output
card can be installed in the Xenon 4RU router, and two XE-OP32SX-XLINK output cards can be
installed in the Xenon 8RU router.
Figure 2-6: XE-OP32HX-XLINK
