Features:
• Accepts up to 576 HD, SD inputs, and can provide up to 72 multi-image display outputs
• Auto-sensing HD/SD and 3Gbps (SMPTE 424M) inputs
• Uses Evertz next generation image processing technology, which is the same technology used
in conversion products
• Supports display resolutions of up to 1920x1080p
• Allows for full screen viewing of any input on both outputs
• Supports all display types via DVI and HD-SDI outputs (all active simultaneously)
• Provides support for dynamic under monitor displays and tallies
• Supports advanced on screen graphics, including analog clocks, transparency control of
objects, raised bezels and borders, drop shadows, and bitmap backgrounds
• Supports true type font including non-Latin alphabets
• Built-in graticule generator
• Enables the decoding and display of VITC/HD time code
• Minimal processing delay (~1 frame)
• Real time control of display outputs via Maestro
1.1. X-LINK ENABLED ROUTERS
X-LINK outputs are an additional set of outputs from Evertz standard router platforms. They are for the
purpose of providing connectivity to monitoring devices. X-LINK outputs do not limit the number of
outputs on the router, X-LINK outputs are in addition to the standard video router outputs. Please refer
to the Table 1-1 below for more details. X-LINK outputs are completely independent of the standard
video router; sources can be mapped to each output on the router including X-LINK without blocking or
compromise.

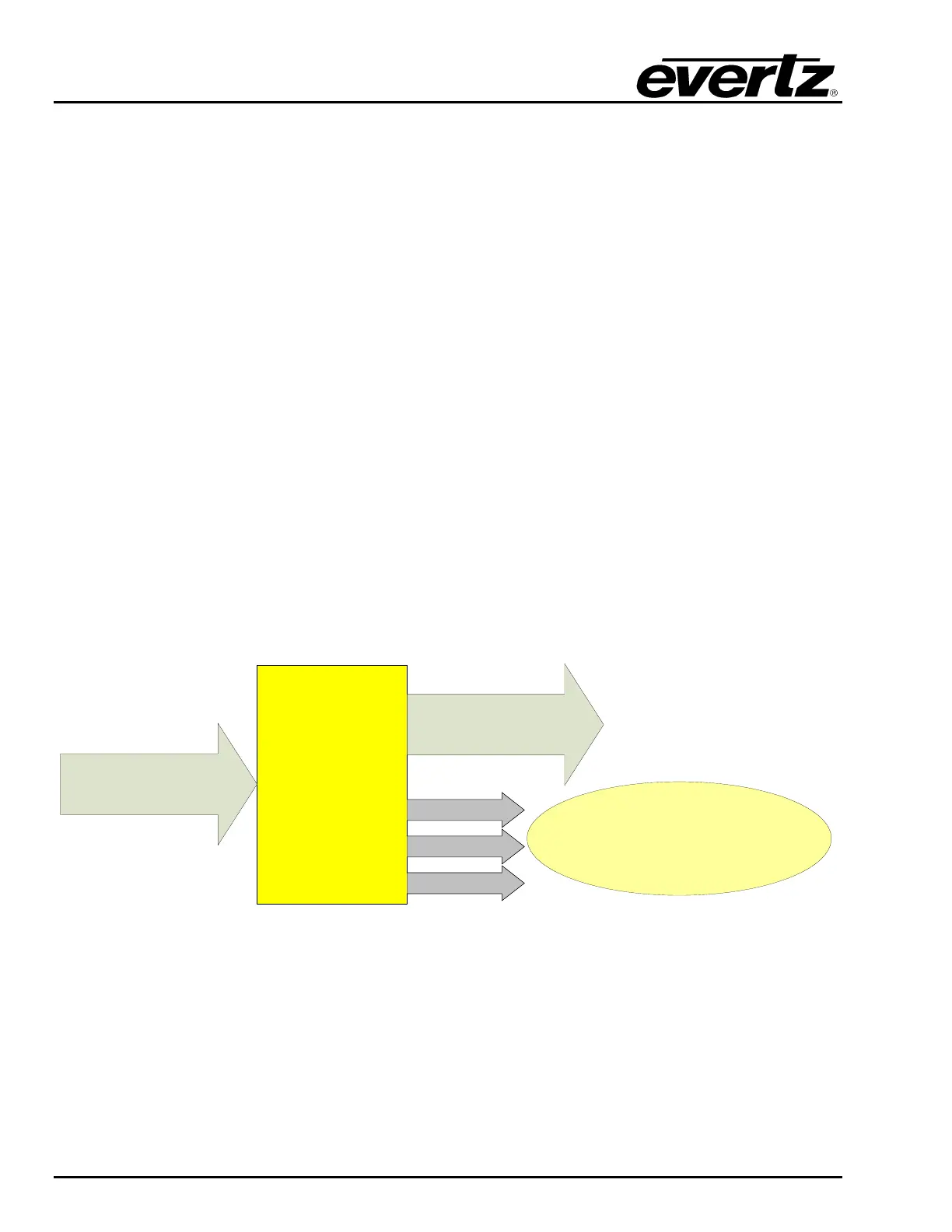

Figure 1-2: Flow of Output
EVERTZ
ROUTER
X-LINK
ENABLED
X-LIIN K
X-LIIN K
X-LIIN K
Video Router outputs
(re-clocked, SMPTE timed, etc)
X-LINK outputs represent an
additional set of fully independent
outputs from the router that are
specially purposed for monitoring any
source on the router
Video Inputs
(3G bps, HD-SDI, SD-SD I
with embedded audio)
