VIP-X System Manual
Revision 1.0 VIP-X - 9
2.2.3. EQX-OP288-XLINK
EQX-OP288-XLINK EQX passive rear output module provides up to nine (9) X-LINK outputs. The
output board is installed in the rear of EQX 16RU router frame below the power connector and above
the redundant frame controller rear module. It requires that the EQX16FR be ordered with the
“+XLINK” option and the third cross point be installed in the frame. The EQX-OP288-XLINK can only
be installed in the EQX 16RU frame.

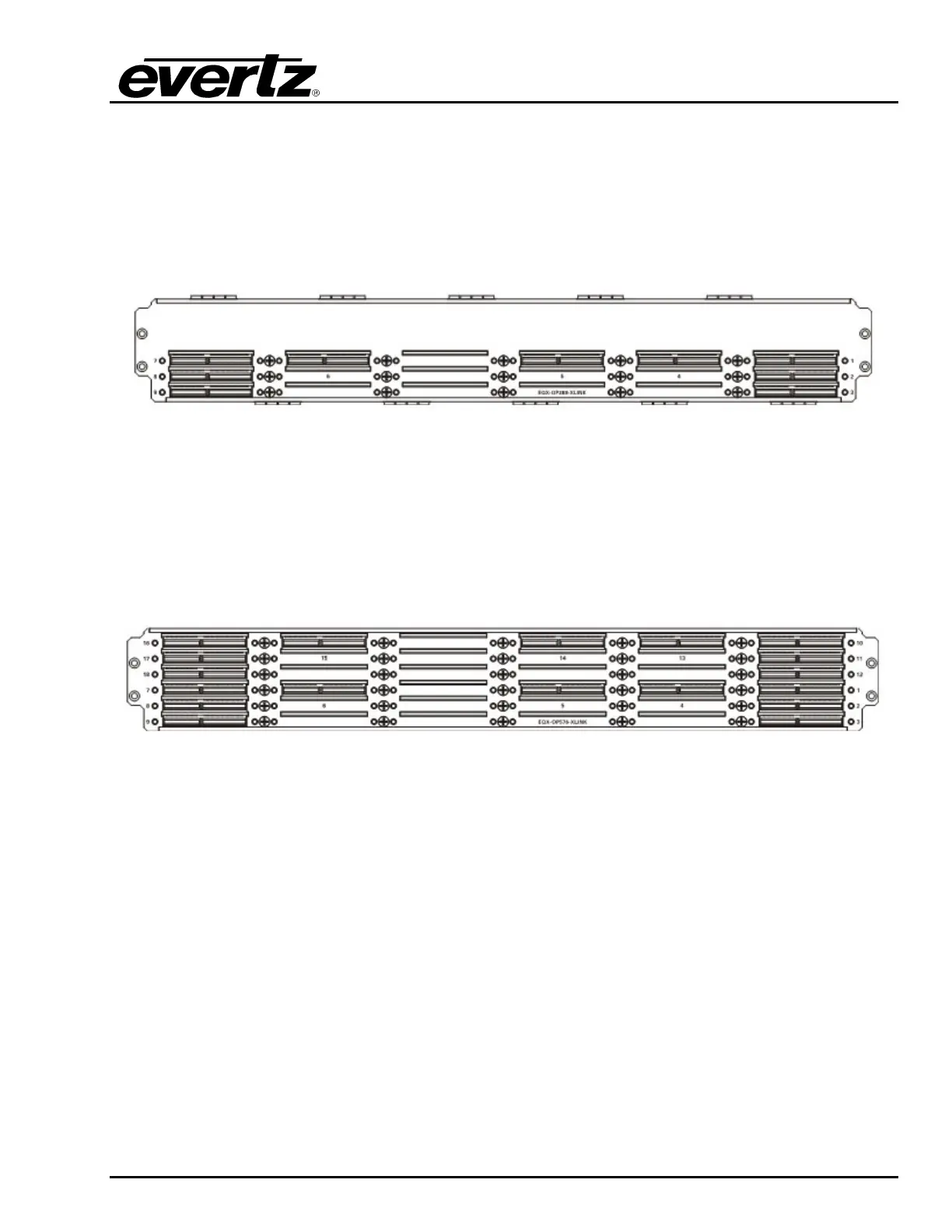

Figure 2-7: EQX-OP288-XLINK
2.2.4. EQX-OP576-XLINK
EQX passive rear output module provides up to eighteen (18) X-LINK outputs. It is installed in the rear
of EQX 16RU router frame below the power connector and above the redundant frame controller rear
module. It requires that the EQX16FR be ordered with the “+XLINK2” option and the redundant cross
point and third cross point be installed in the frame. The EQX-OP576-XLINK can only be installed in
the EQX 16RU frame.
Figure 2-8: EQX-OP576-XLINK
