VIP-X System Manual
Revision 1.0 VIP-X - 15

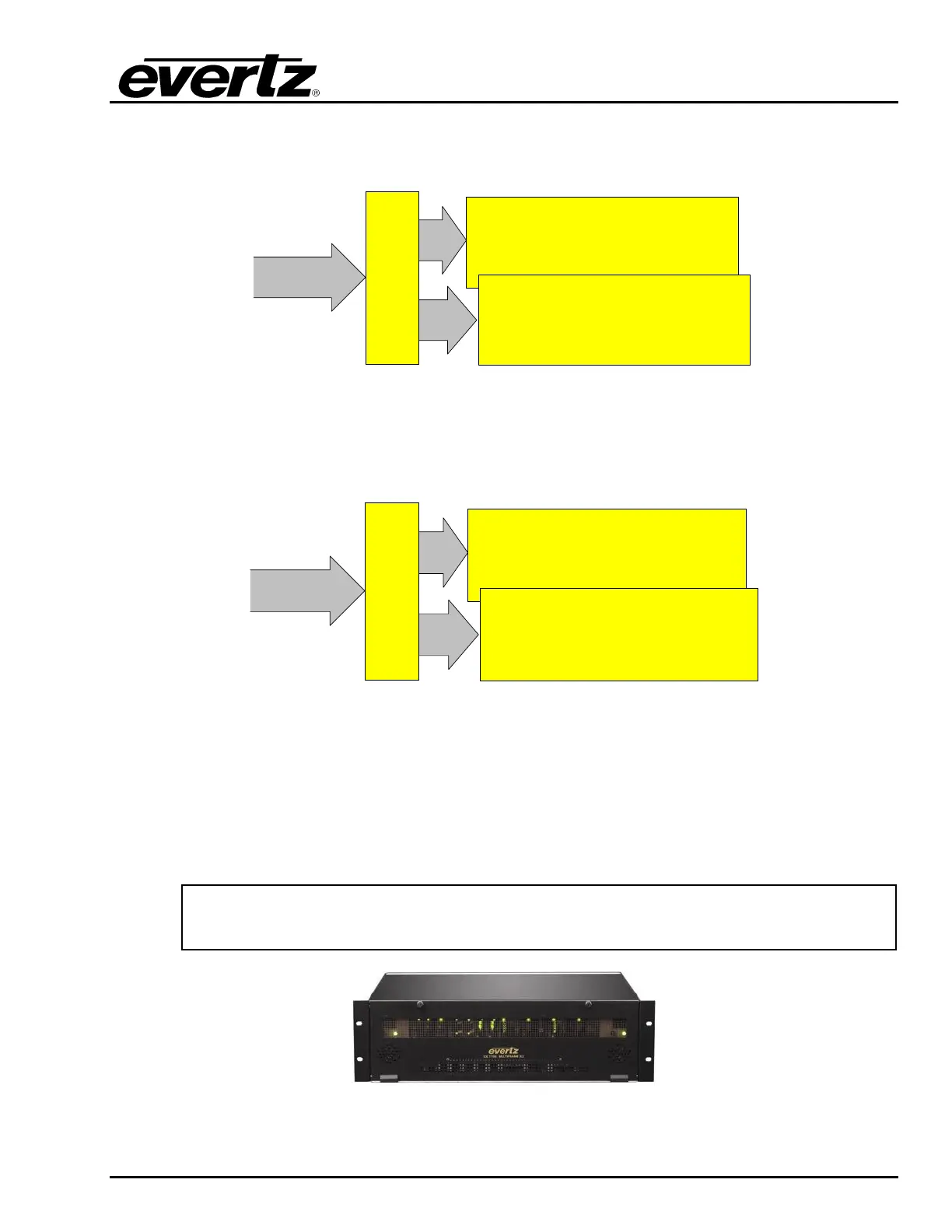

The following is an example of how X-LINK connections are distributed to the 7767VIPX16x2 cards that
are plugged into the 7767VIPX-RP2 rear plate:
Figure 2-15: Distribution of X-LINK connections to the 7767VIPX16x2
The following is an example of how X-LINK connections are distributed to the 7767VIPX8x2 cards that
are plugged into the 7767VIPX-RP2 rear plate:
Figure 2-16: Distribution of X-LINK connections to the 7767VIPX8x2
2.2.10. 7700FR-D FRAME
The 7700FR-D frame provides up to 360W per power supply. It can only support a maximum of four
7767VIPX modules due to the power requirements of the 7767VIPX modules. The 7700FR-D frame
should only be used in technical spaces where noise is not a concern.
"
The 7767VIPX modules must be installed in the 7700FR-D or DQ frame.
Figure 2-17: 7700FR-D Frame
16
7767VIPX16x2
7767VIPX16x2
16
7767VIPX
- RP2
X-LINK
8
7767VIPX8x2
7767VIPX8x2
8
7767VIPX
- RP2
X-LINK
