Extreme Networks ExtremeSwitching 5320 Series User Manual

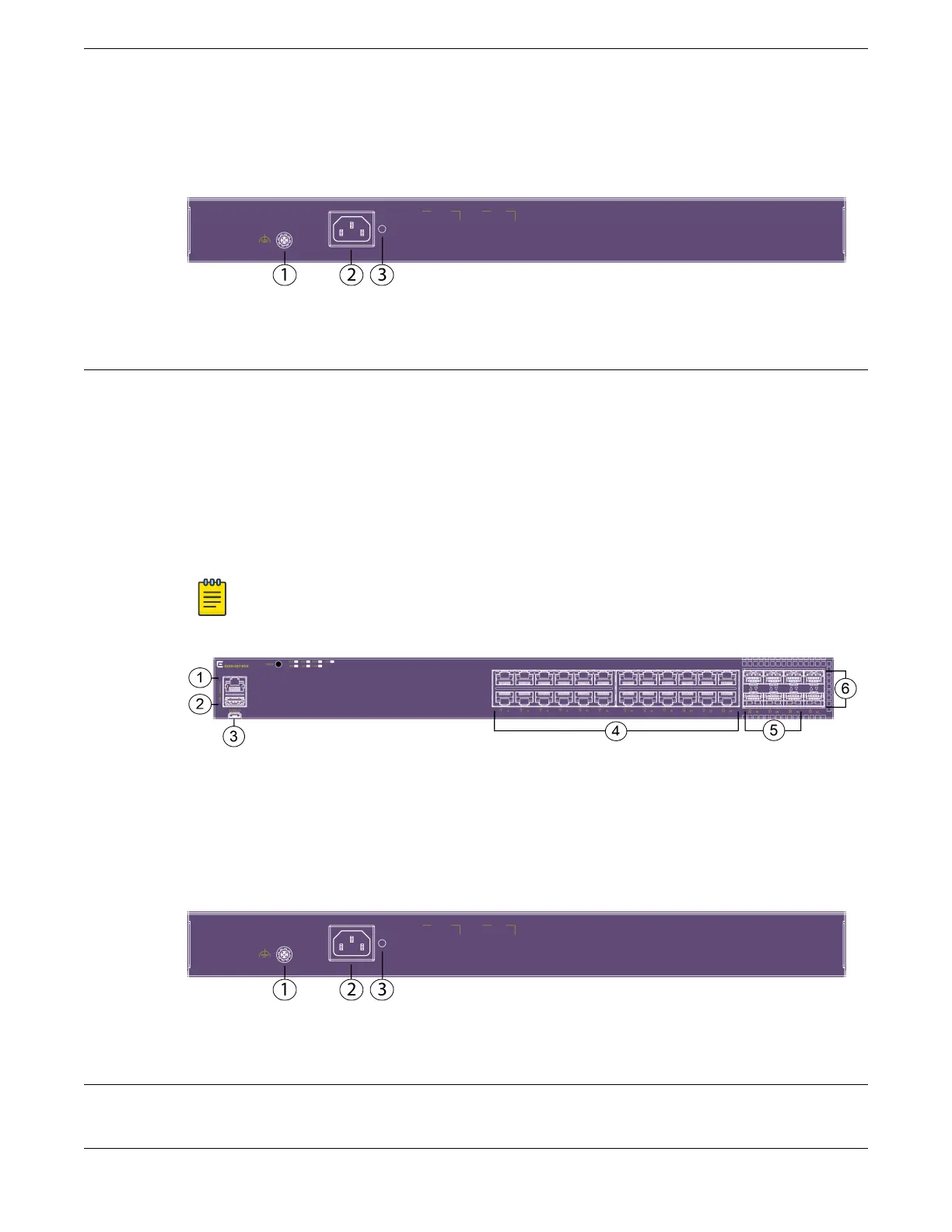

1 = Grounding lug
2 = AC power inlet connector
3 = Cable tie mount for power cord management
Figure 4: 5320-48P-8XE Rear Panel
5320-24T-8XE Switch Features
The front panel of the switch includes:
1 = Serial console port (RJ-45)
2 = USB Type-A port
3 = USB Micro-B console port
4 = 24 x 10/100/1000BASE-T (autosensing) MACsec capable ports
5 = 6 x 1/10Gb SFP MACsec capable uplink ports
6 = 2 x 10Gb SFP+ Universal Ports/stacking ports
Note
These ports support 10Gb when stacking without a license. They support 10Gb
as Ethernet ports when they are upgraded with the appropriate license.
Figure 5: 5320-24T-8XE Front Panel
The rear panel of the switch includes:
1 = Grounding lug
2 = AC power inlet connector
3 = Cable tie mount for power cord management
Figure 6: 5320-24T-8XE Rear Panel
5320-24P-8XE Switch Features
The front panel of the switch includes:
5320-24T-8XE Switch Features ExtremeSwitching 5320 Series Overview
16 ExtremeSwitching 5320 Series Hardware Installation Guide
