5320-24T-4X-XT and 5320-24T-24S-4XE-XT front panel LEDs
ExtremeSwitching 5320 Series front panel port LEDs, for models 5320-24T-4X-XT and
5320-24T-24S-4XE-XT, as described in the following table:
Table 14: System LEDs
Label Function Color/State Port State
SYS System status LED
(Legacy MGMT function)
Green Solid POST Passed, normal
operation.
Green Blinking POST in progress
Amber Blinking POST failed or overheat
Off No power.
PWR Power status LED See Power LED on page 93.
FAN Fan status LEDS Green Solid Normal operation
Amber Blinking Fan failure
Off No power.
SPD/STK Speed status LED
Stacking status LED
Off (state 1) System mode (Normal)
Amber Solid (state 2) Speed mode
Green Solid (State 3) Stacking mode

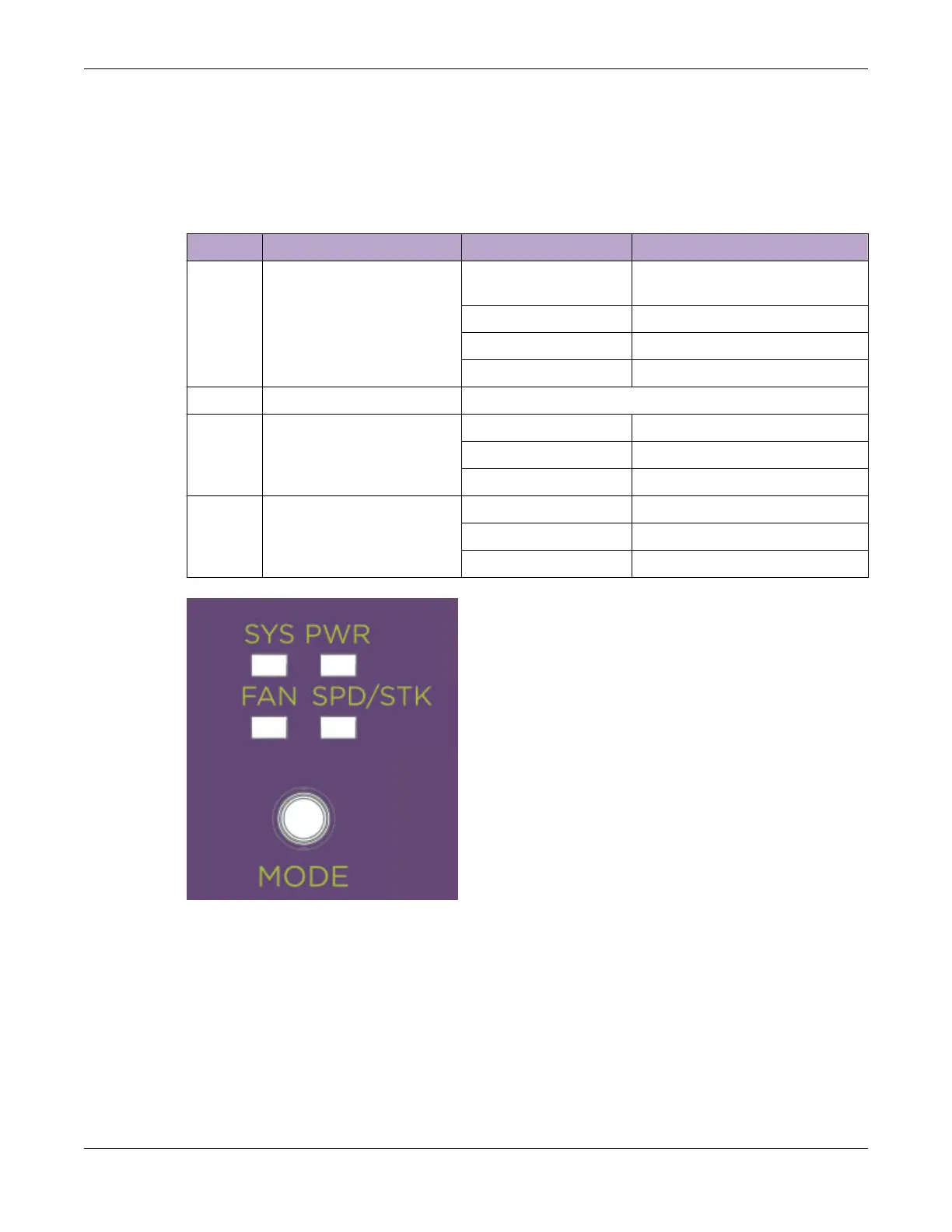

Figure 64: 5320-24T-4X-XT and 5320-24T-24S-4XE-XT Mode and System Status LEDs
Monitor the Switch
5320-24T-4X-XT and 5320-24T-24S-4XE-XT front panel
LEDs
ExtremeSwitching 5320 Series Hardware Installation Guide 91
