The rear panel of the switch includes:
1 = AC power inlet connector
2 = Redundant power inlet connector (behind cover)
3 = Grounding lug

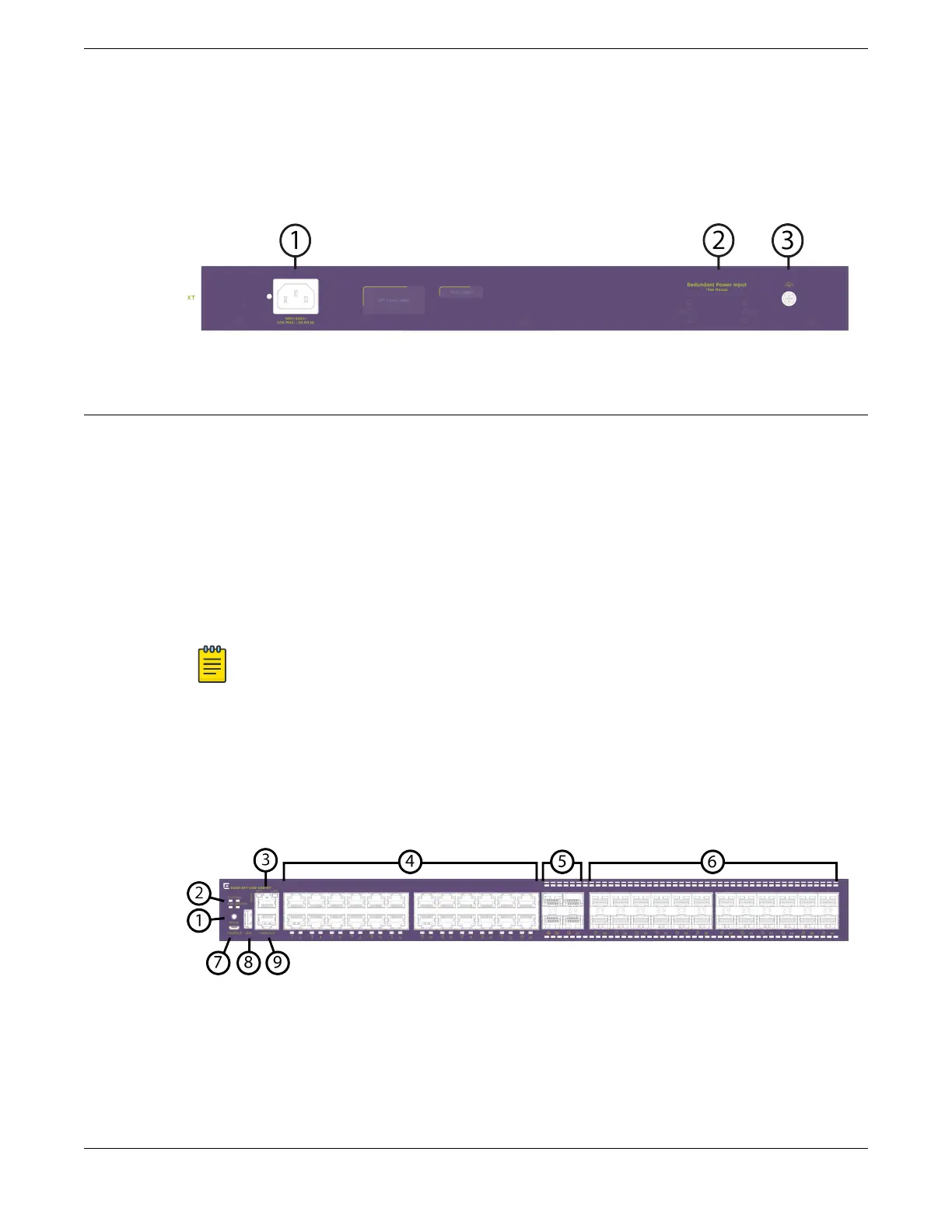

Figure 14: 5320-24T-4X-XT Rear Panel
5320-24T-24S-4XE-XT Switch Features
The 5320-24T-24S-4XE-XT is one of two extended temperature models in the 5320
Series. The 5320-24T-24S-4XE-XT can function in extended temperatures up to 60°C
(32°F), and provides the option to add an external 150W redundant AC power supply.
Industrial temperature optics are required when the system is operated at ambient
temperatures of 50°C to 60°C (122°F to 140°F). The front panel of the switch includes:
1 = Mode button
2 = System LEDs
3 = 10/100/1000BASE-T out-of-band management port (RJ-45 )
4 = 24 x 10/100/1000BASE-T (autosensing) full/half duplex MACsec capable ports
Note
The 10/100 ports support half duplex; the 1000 port supports full duplex. Half-
duplex is not supported on these ports when operating at 1Gbps.
5 = 4 x 1/10Gb SFP+ MACsec capable uplink/stack ports
6 = 24 x 100Mb/1G SFP ports
7 = USB Micro-B console port
8 = USB Type-A port
9 = Serial console port (RJ-45)
Figure 15: 5320-24T-24S-4XE-XT Front Panel
The rear panel of the switch includes:
1 = AC power inlet connector
2 = Redundant power inlet connector (behind cover)
3 = Grounding lug
5320-24T-24S-4XE-XT Switch Features ExtremeSwitching 5320 Series Overview
20 ExtremeSwitching 5320 Series Hardware Installation Guide
