Dual Rack Mount the RPS
Two RPS-150W-XT models can be dual rack mounted in a two-post rack. To install:
1. Attach two short brackets to the outer sides of the two devices using four M3 screws
per bracket.
2. Attach two additional short brackets to the inner side of the right device using two
M3 screws per bracket.
3. Attach the nal long bracket to the inner side of the left device using four M3 screws.
4. Slip the short connecting brackets on the device on the right into both ends of the
long connecting bracket on the device on the left.
5. Attach the connecting brackets to each other using the four remaining chassis
screws. The devices can be installed in the rack as a single unit.

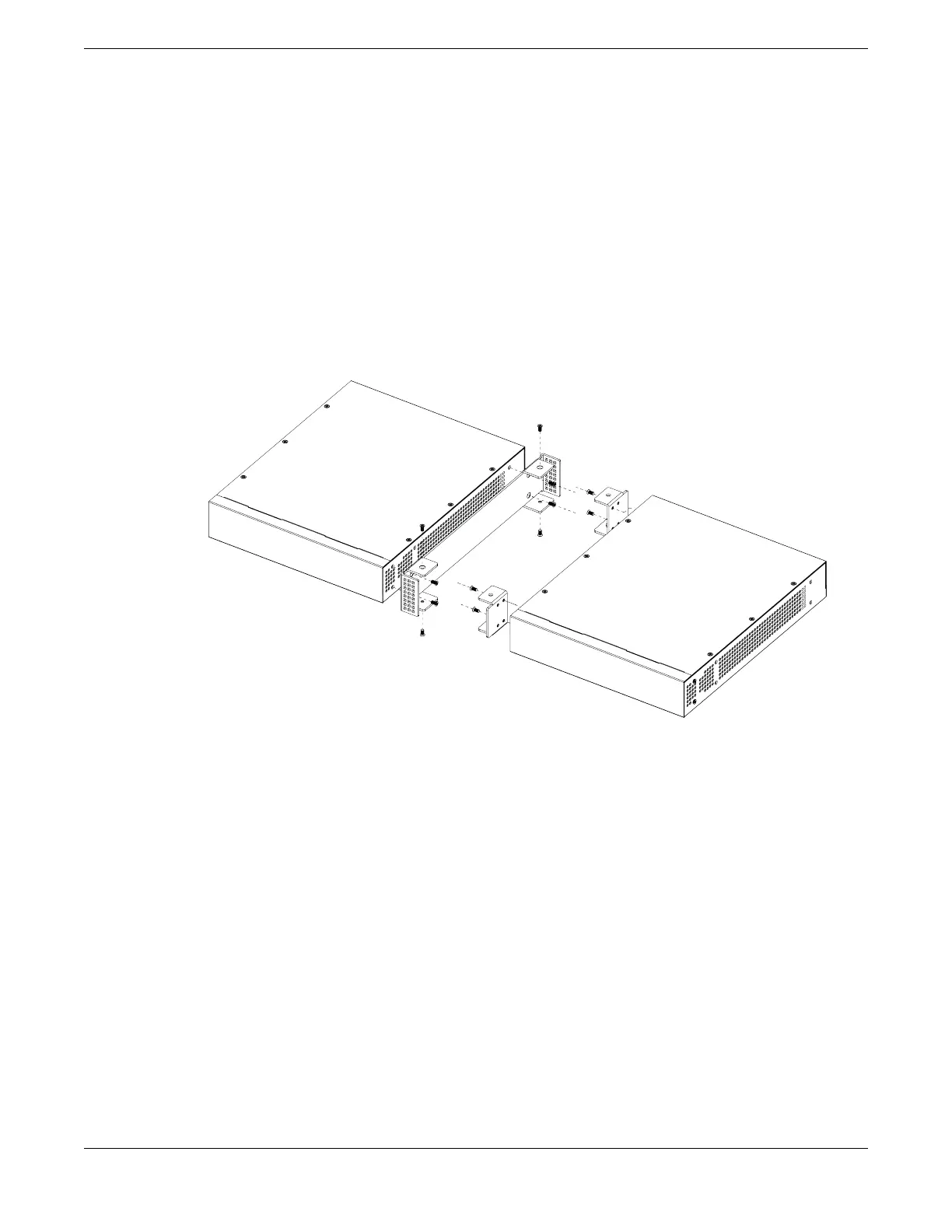

Figure 57: Dual Rack Mount: Connecting the Devices
6. Attach the switches to the rack using rack-mounting hardware (not provided).
Install Your Switch Dual Rack Mount the RPS
ExtremeSwitching 5320 Series Hardware Installation Guide 75
