SMP111 • Web-Based User Interface 49
2
Picture Controls – Alter the quality of the image by changing brightness and contrast,
or select Auto-Image, Auto-Image & Fill, and Auto-Image & Follow (see
figure 33 on page 48).
3
Overscan – Set the amount (0, 2.5%, or 5%) of picture enlargement applied to the
HDMI video signal for any SMPTE standard input.
4
Input Presets – Save up to 128 presets or recall one of those presets, each with a
combination of signal type, signal sampling, picture controls, and audio gain settings.
See the SMP111HelpFile for additional information.
Encoder Settings and Metadata
The controls within the Encoding & Metadata page configure signal streaming and
encoding and also permit selection or configuration of metadata and recording profiles. A
user must be logged in as an administrator to see or change these settings.
To open this page, click the Configuration tab at the top of the SMP111 embedded
web pages and then click the Encoding & Metadata tab on the second tier of tabs.

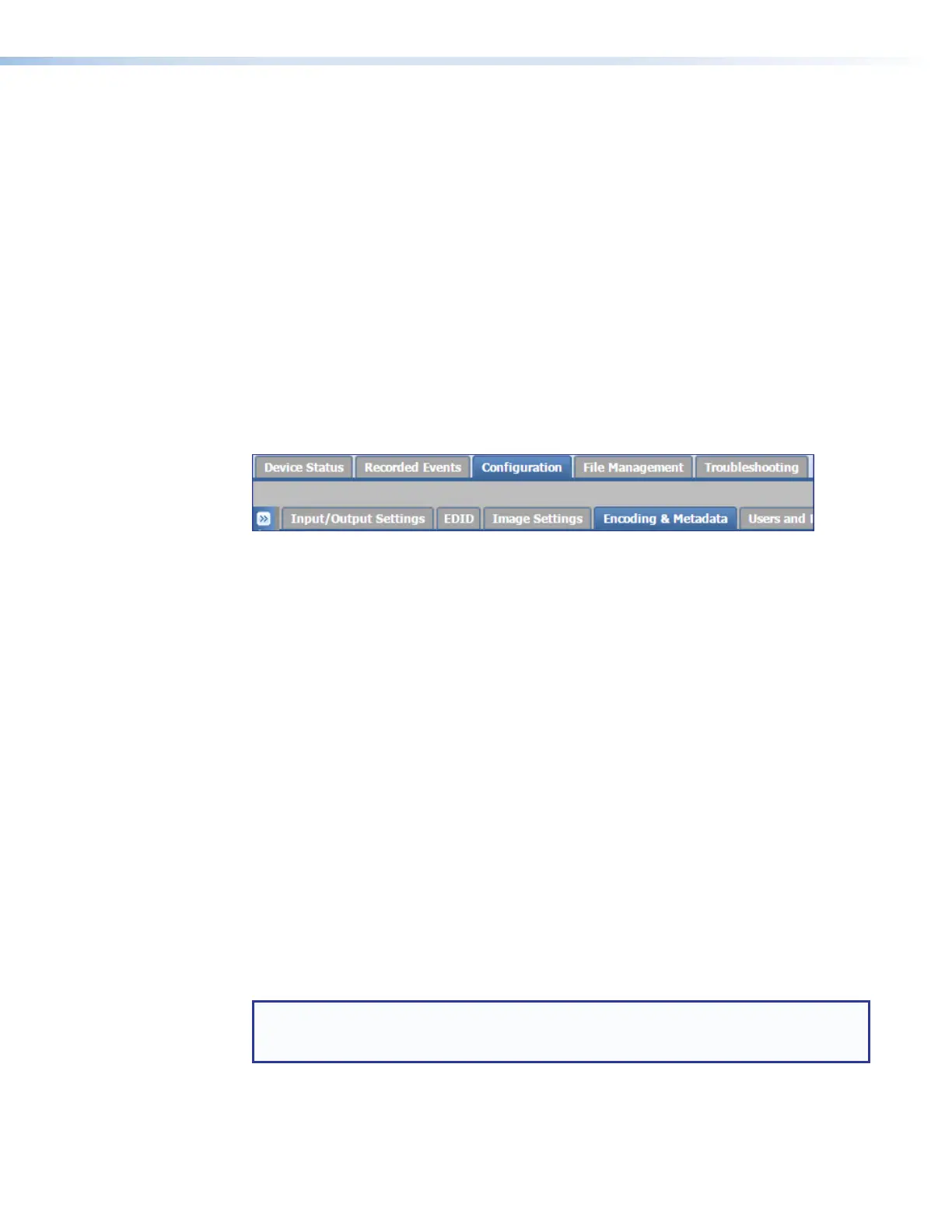

Figure 34. Configuration Tab, Encoding & Metadata Subtab
The Encoding & Metadata page opens. It features two expandable panels:
• Encoding Presets – Configure audio encoding, video encoding, recording and
streaming parameters, then create and save or recall presets of those settings.
• Metadata and Recording Profiles – Change the OSD font, enter metadata
elements, and create and save Recording Profiles.
See the SMP111HelpFile for additional information.
Some of the encoder settings can also be set using Extron SIS commands (see the
Command and Response Tables on page 75).
Encoding Presets
Encoding presets and Streaming presets are combinations of settings for audio and video
encoding. The recording uses the highest quality signal encoding (recording encoding)
and the preview (streaming encoding) displayed within the embedded web pages uses the
lowest quality encoding (streaming encoding) of the encoding streams.
SMP111 supports up to two encodes (recording, streaming), one recording, one local
output, and live streams simultaneously.
Any of the default encoder presets or user-created presets can be recalled and applied to a
recording session (recording encoder) and stream using the embedded Web pages. Presets
can also be recalled using SIS Commands (see the Command and Response Tables on
page 75).
NOTE: Encoding presets and Streaming presets must be selected prior to the start
of a recording. You cannot change encoding or streaming settings during an active
recording.
figure 34
