SMP111 • Web-Based User Interface 30
Web-based User Interface Help Files
The SMP111 Web-based User Interface contains an extensive set of help files to assist
with the connection, configuration, monitoring, and operation of the SMP111. The following
sections contain an overview of those files and also includes information not contained in
the help files.
Accessing the Web-Based User Interface
To access the embedded web page user interface, connect a control PC to the LAN port of
the SMP111, or to the same network shared by the SMP, and open a Web browser. Enter
the IP address of the SMP111 (the default IP address is 192.168.254.254) into the browser
address field. If necessary (if the unit has already been configured), enter the username and
password to log in, then click Log In or OK.
The main user interface opens to the Device Status page (see figure 9).

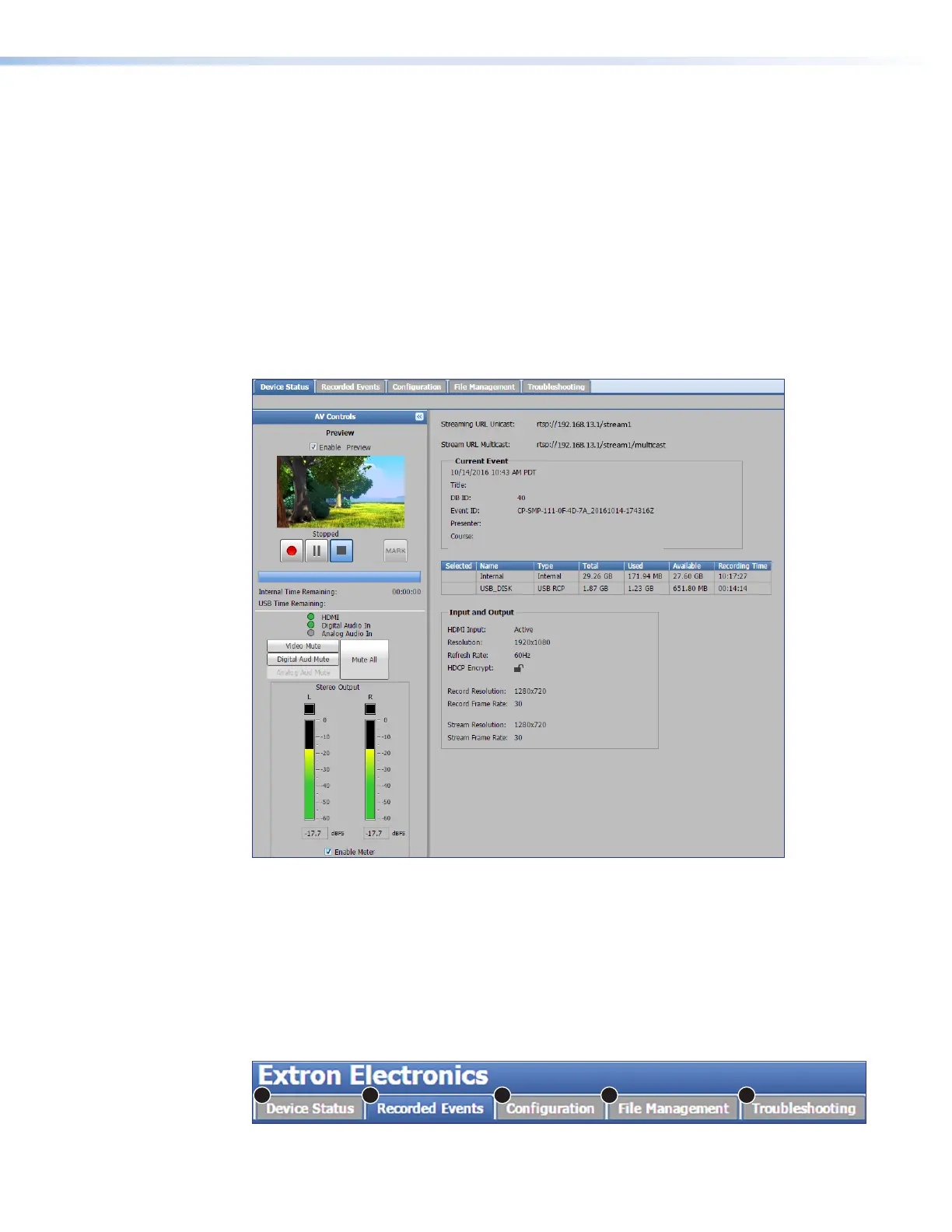

Figure 9. SMP111 Series Main User Interface
Page Overview
The SMP111 pages are organized by function and further organized within those main
functions. Click the tabs to open the pages.
Tabs
The pages in the SMP111 are grouped within five main tabs at the top of the screen:
1 2 3 4 5
Figure 10. Five Main Function Tabs
figure 9
figure 10
