SMP111 • Web-Based User Interface 66
Diagnostic Tools
The Diagnostic Tools page within Troubleshooting provides a convenient way to
test network connections using a ping utility, a trace route (tracert) function, and an Nmap
network discovery tool. It also allows you to generate a log file that you can send to Extron
support staff to aid in troubleshooting problems with the unit or the system.
To open this page, click the Troubleshooting tab at the top of the embedded web
pages and then click the Diagnostic Tools tab (see figure 58,
4
) on the second tier of
tabs.
1 2 3 4 5

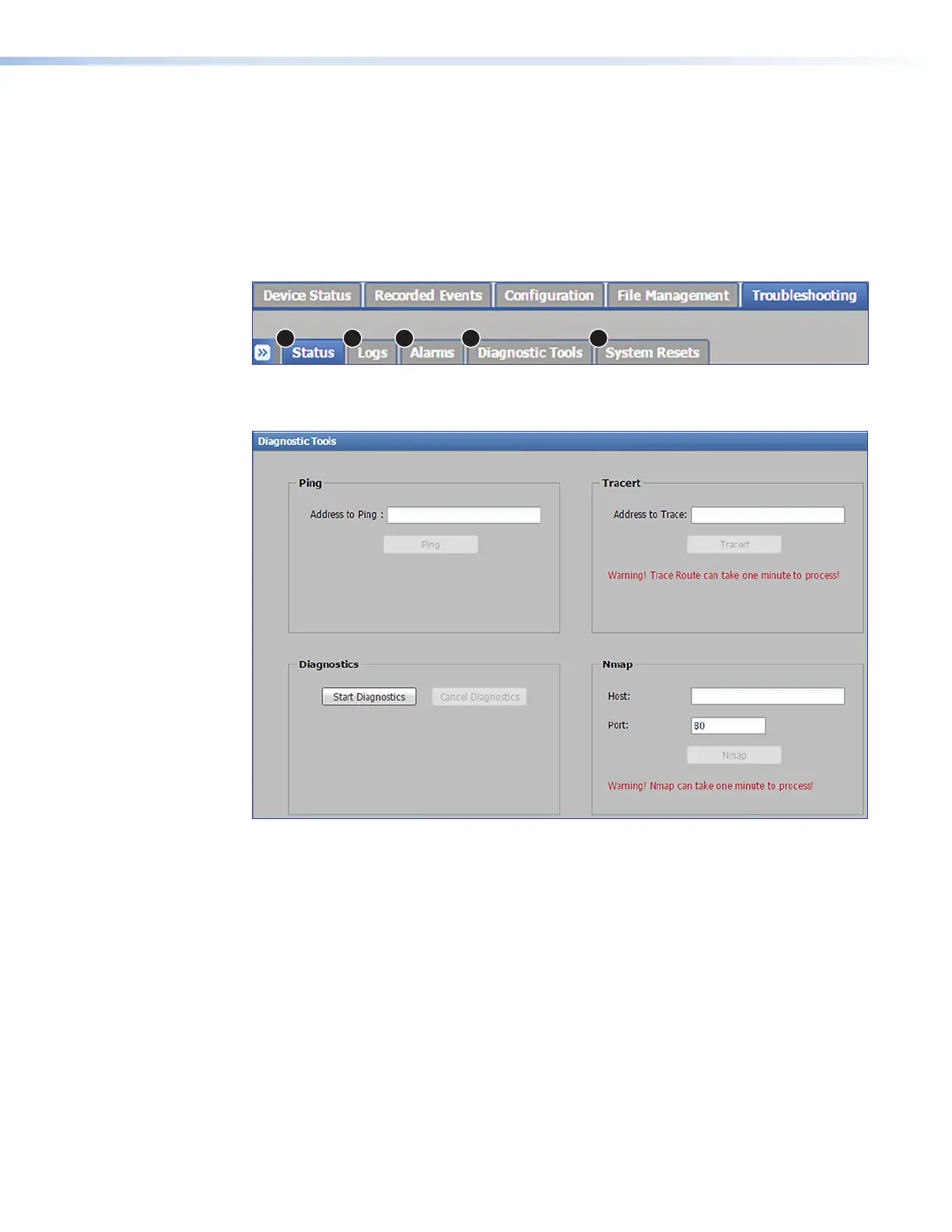

Figure 58. Troubleshooting Tab, Diagnostic Tools Subtab
The Diagnostic Tools page opens.
Figure 59. Troubleshooting, Diagnostic Tools
See the SMP111HelpFile for further information about the Diagnostic Tools page.
figure 58
figure 59
