Status
The Status page within the Troubleshooting tab displays factory-defined and
user-defined information about the unit. This page contains the unit name, part number,
firmware version, MAC address, location description, and related information about the unit.
It also displays the current audio bit rate and the video bit rates for all encoding streams.
Some of the information in this page can also be found using SIS commands (see
Command and Response Tables on page 75).
To open this page, click the Troubleshooting tab at the top of the SMP111 embedded
Web pages and then click the Status tab (see figure 52,
1
) on the second tier of tabs.
1 2 3 4 5

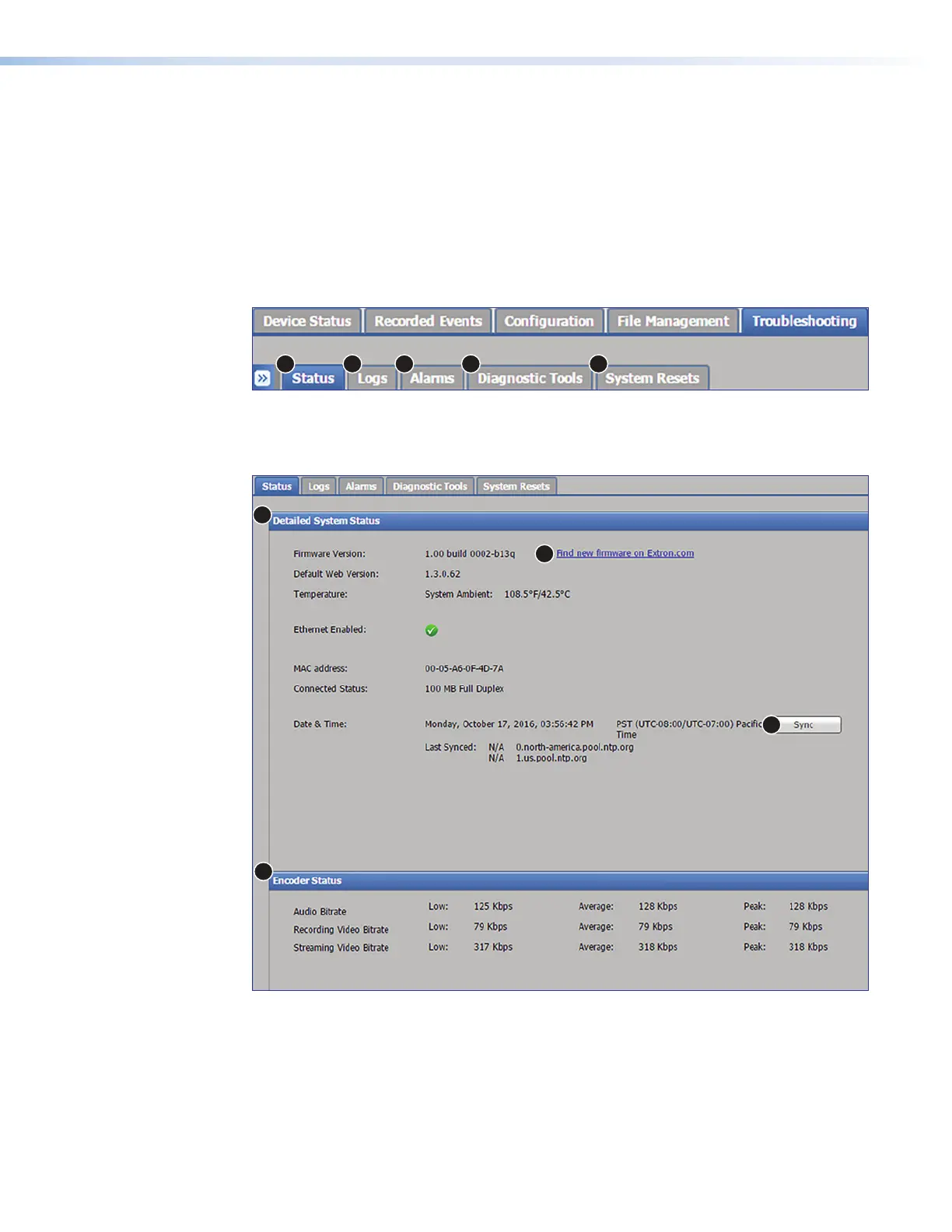

Figure 52. Troubleshooting Tab, Status Subtab
The Status page opens, showing the Detailed System Status (see figure 53,
1
) and
Encoder Status (
2
) panels.
1
2
3
4
Figure 53. Troubleshooting, Status Page
All of the items on this page are read-only except the hyperlink to the Extron Website
Findnew firmware on Extron.com (
3
) where you can search for updated firmware
for the unit, and the Sync button (
4
) which commands the unit to sync its internal clock
time and date with the settings from an NTP server.
figure 52
figure 53
