SMP111 • Web-Based User Interface 31
1
Device Status — This single page (see figure 10 on the previous page) provides a
view of the status of the input and outputs along with details of the active recording and
stream (the current event). The URLs of the streams are also displayed on this page.
2
Recorded Events — This tab features two pages that provide a calendar view of
previous and current recording events, as well as publishing configuration options (see
Recorded Events on page 39).
3
Configuration — The eight pages within this tab contain the core controls typically
needed during initial setup, or for upgrading the unit, or restoring a configuration. They
make it possible for an administrator to configure basic AV input settings, such as:
• Output video test patterns for setup.
• Configure output stream settings and presets.
• Set up AV encoding and presets, select or configure layouts and layout presets.
• Set passwords, set up notices and alarms, and select preview window settings.
The Configuration pages also provide a way to configure basic communication,
identity, time, data storage, and recording location settings. These pages also
make it possible to update firmware or restore a configuration from a saved file (see
Configuration on page 41) .
4
File Management — This page provides a way to view folders and files on the
internal drive and any attached external drive. It also provides a way to connect the
SMP to shared network drives (see File Management on page 59).
5
Troubleshooting — The five pages within this tab display factory-defined and
user-defined information about the unit and the encoded streams, display a log of
events and a log of alarms and their status, provide three simple diagnostic tools for
checking network connections, and provide a way to perform a variety of types of
resets on the SMP (see Troubleshooting on page 62).
Pages Within Tabs
The Recorded Events, Configuration, and Troubleshooting tabs each
include several pages. To access each page, click the corresponding function within the
second tier of tabs (sub-tabs) located below the main tabs near the top of the screen
(Configuration > Input/Output Settings shown selected in figure 11).

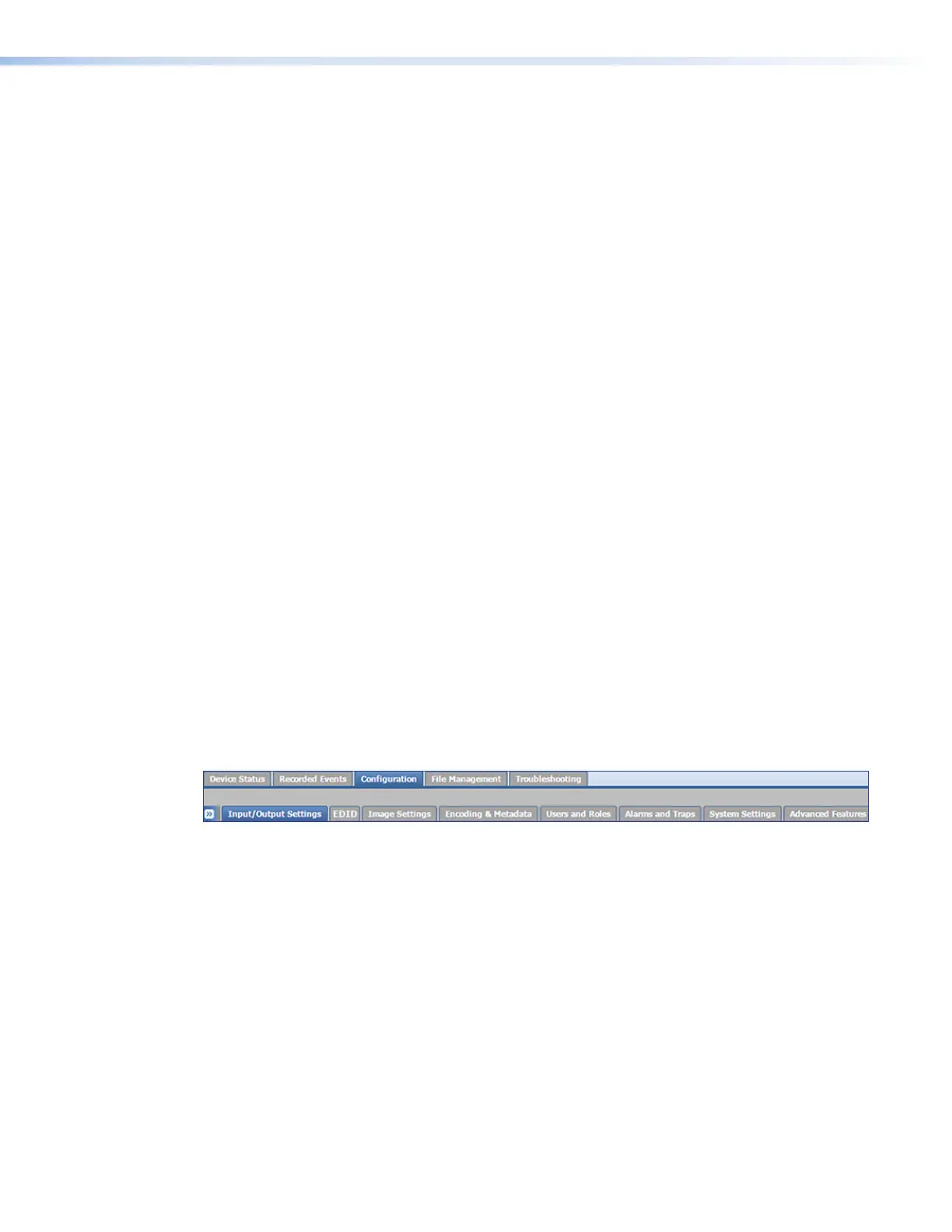

Figure 11. Pages Within Tabs (Subtabs)
Panels and screen sections
Each SMP111 web page contains at least one panel and a main window with sections
that group the controls and information for each page. Most panels include controls and a
variety of adjustments and settings. Specific sections can include controls or simply display
information. Sections or panels can include tabs with additional selections and options.
All SMP111 web pages include the AV Controls panel at the left of the screen (see AV
Controls Panel on page 34). The Device Status page is the main page and also
serves as the main operating interface. It contains one panel and three sections. Pages such
as the Systems Settings page within the Configuration tab include several panes,
each with a different collection of information and settings.
figure 11
