Chapter 6 Fastening Operation
PAGE 6-45

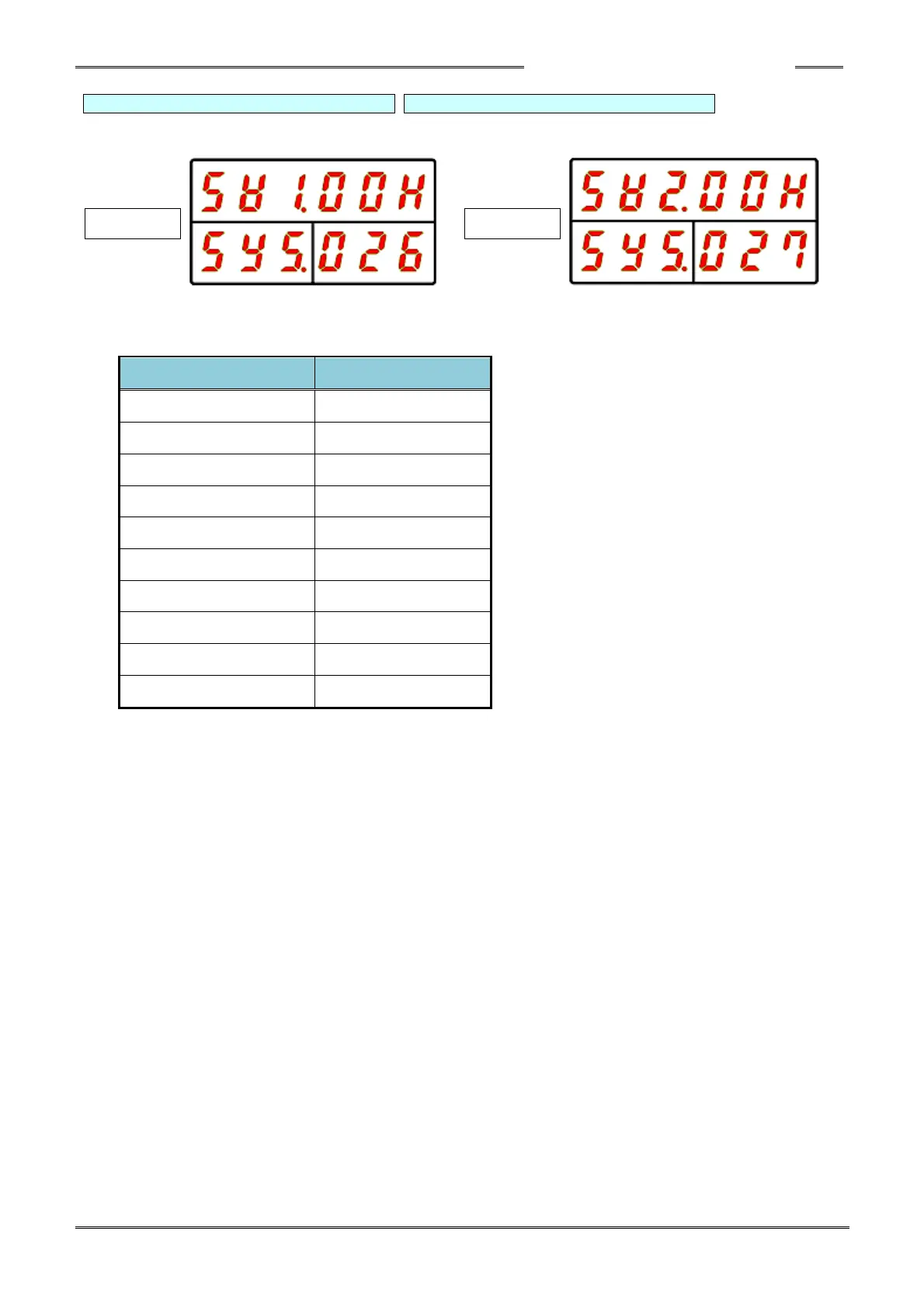

D-No.026 controller SW1 Setting State D-No.027 controller SW2 Setting State
The setting states of the DIP switches of the controller (SW1 and SW2 on the controller bottom
panel) are indicated in the two upper right LED segments (“00H” means 00 hex)
The ON/OFF states of SW No. 1 ～ No. 8 are indicated in 8-bit hexadecimal code in the part in
which “00H” is indicated in the drawing above.
SW setting examples
Indication examples
All OFF
00H
Only No. 1 ON
01H
Only No. 2 ON
02H
Only No. 3 ON
04H
Only No. 4 ON
08H
Only No. 5 ON
10H
Only No. 6 ON
20H
Only No. 7 ON
40H
Only No. 8 ON
80H
All ON
FFH
D-No.026
D-No.027
