Chapter 8 Options
PAGE 8-11
When the expansion RS232C is selected as the data input method and “Add STX/ETX” is set to be
used, the ID data can be cleared when the STX signal is received via the RS232C-2 and data will be
updated by the input data when the ETX signal is received. The STX/ETX data will be excluded in the
stored data (not be output as well)

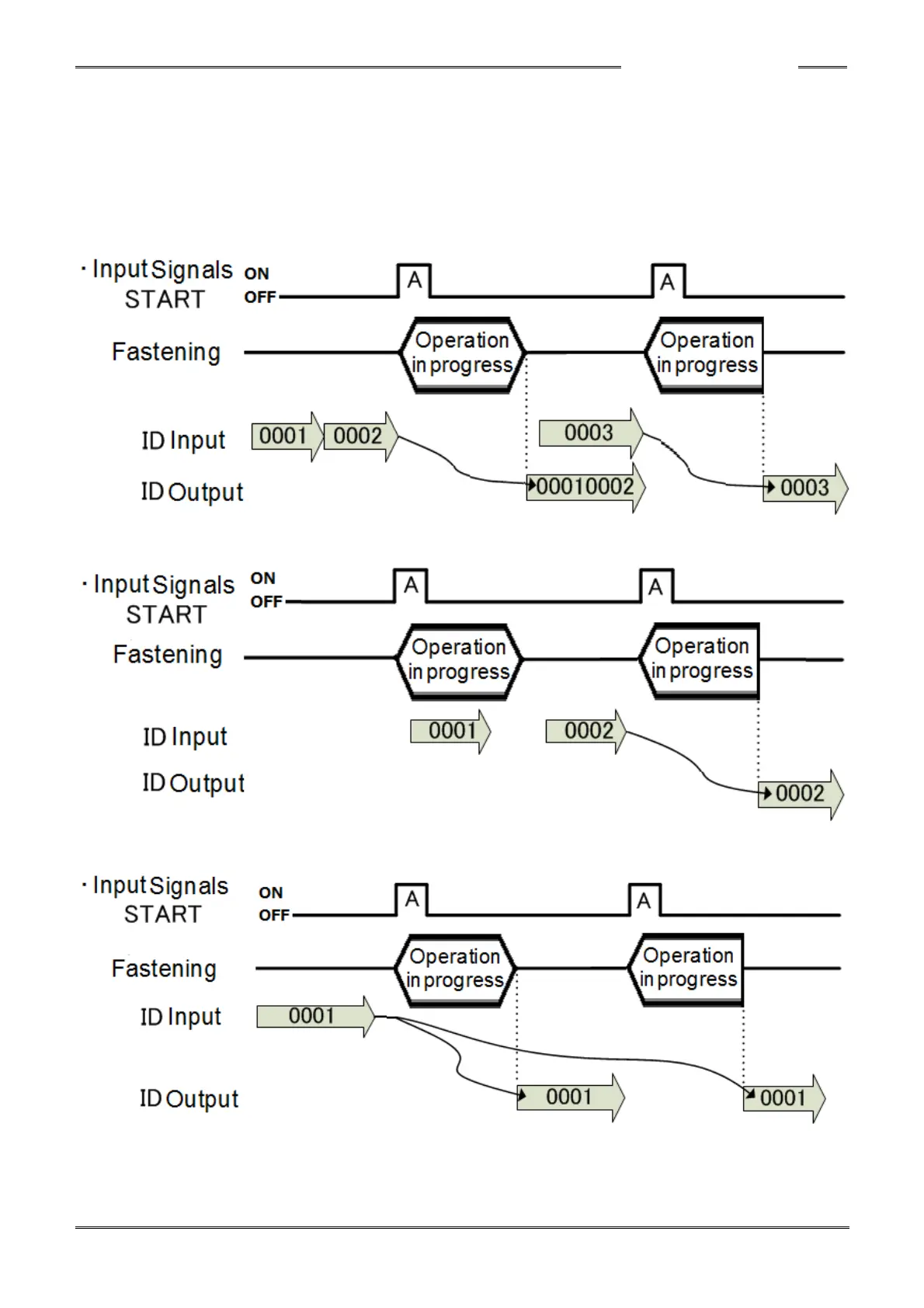

● ID Data Output Timing ("A" in the figure requires an input time of 100msec)
・Example 1：the ID data is input continuously before the fastening operation
・Example 2：the ID data is input during the fastening operation
・Example 3：the ID data is not re-entered.
