Chapter 9 Fieldbus I/O Interfaces
PAGE 9-14
PLC Setting Example
This procedure is written for using Rockwell Automation RXLogix5000 V15.02.00 and Allen Bradley CompactLogix
L32E. If the system is not the same as listed above, setup may be different. Please contact to PLC
manufacturer for detail as each PLC may be different
1. Register MASTER Spindle Fieldbus unit to network

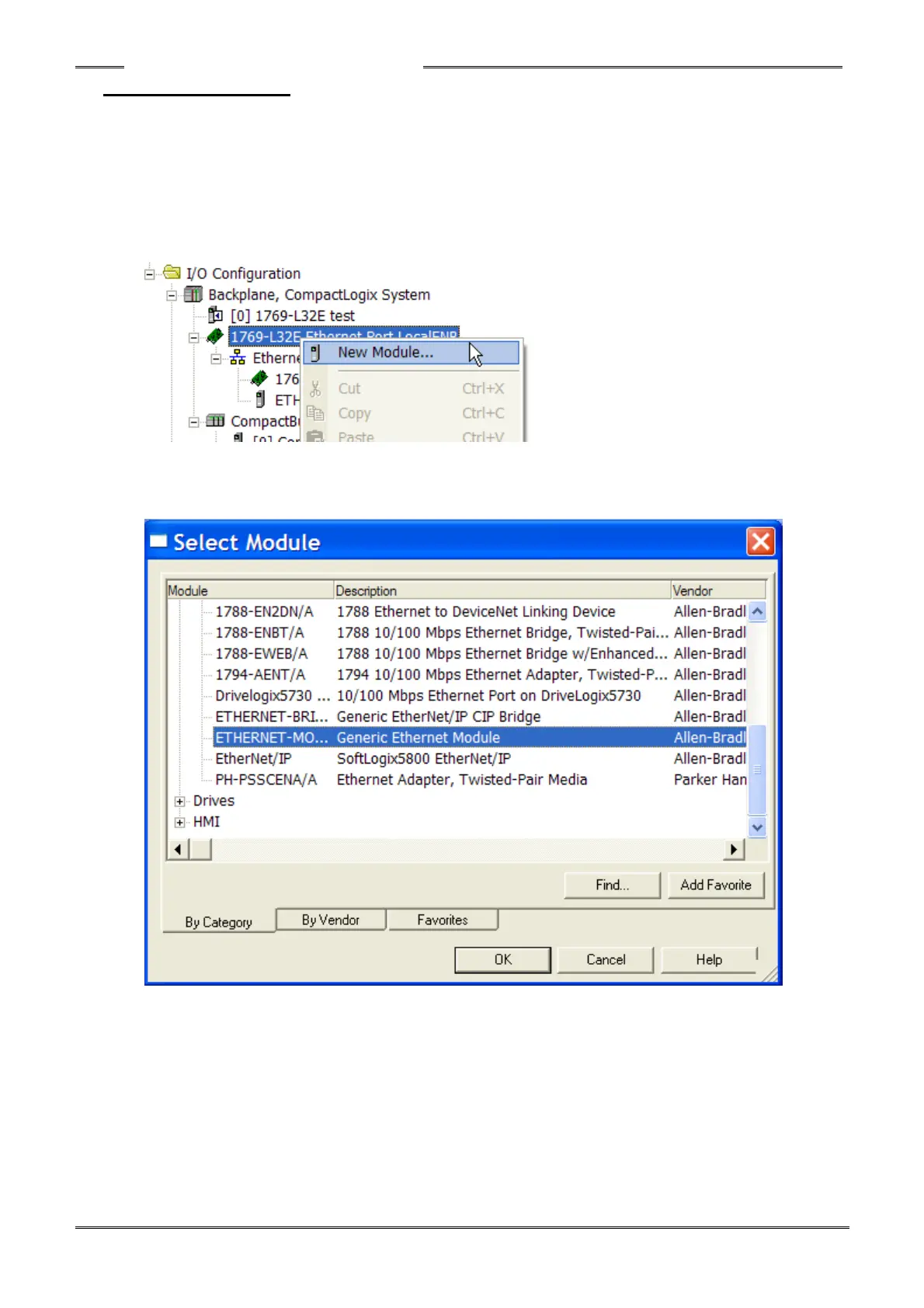

In the PLC I/O configuration, right click on “Ethernet Port Local ENB” and select “New Module”
Select “Generic Ethernet Module” from “module” list and click the OK button.
To Next Page
