Chapter 9 Fieldbus I/O Interfaces
PAGE 9-15

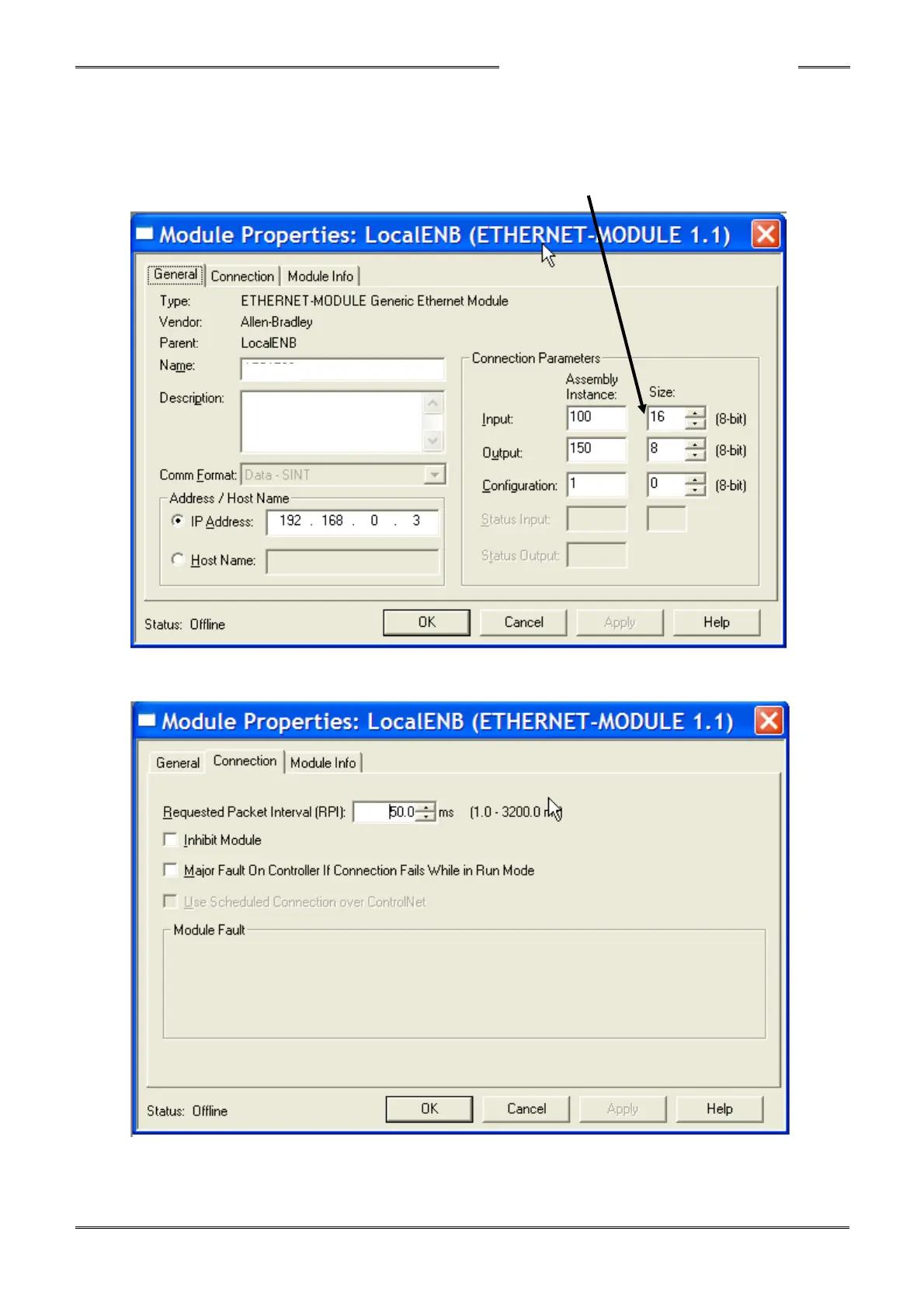

Specify “Name” (FEC HFC3000), “IP address”, and “Connection Parameters” that matches the parameters set
to the Fieldbus setup using the HFC3000 User Console software.
Note: Input / Output size MUST match the settings programmed in the Ethernet I/P setting of the HFC3000
Fieldbus setup or PLC (Ethernet I/P) error will occur.
Click on the “Connection” tab and set connection setup as below.
To Next Page
