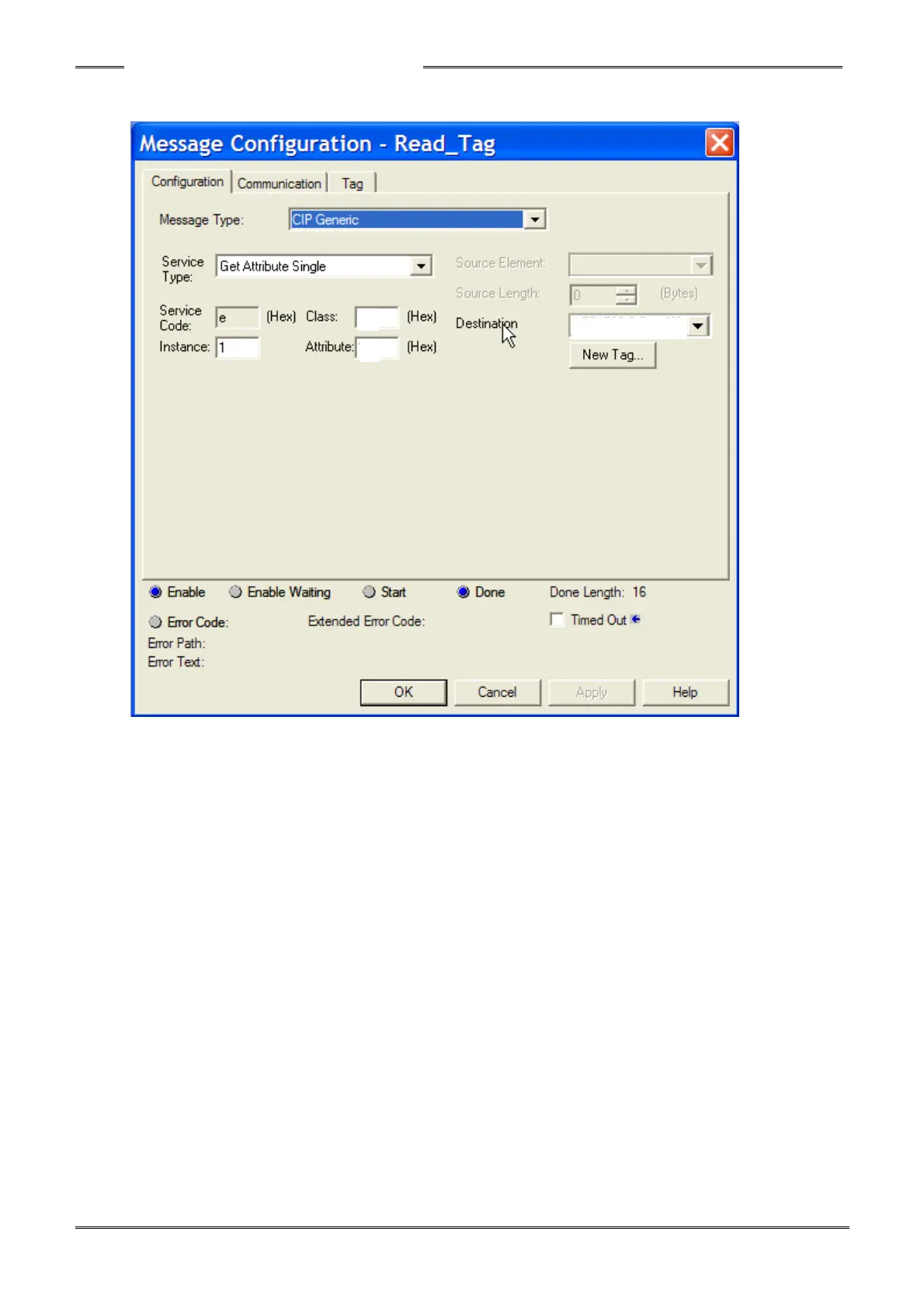

Property of the MSG command is shown below. (Right Click in MSG command)
Message Type
CIP Generic
Service Type
Get Attribute Single
Service Code
E
Class
A2
Instance
1
Attribute
5
Destination
The controller tag “C” should be selected
Note: Each message command can only handle 200 bytes. The HFC3000 only has a total of 182 bytes of
data per cycle so only one command is necessary to retrieve all fastening data from one cycle.
A2
5
HFC3000:C.Data[0]
