Chapter 9 Fieldbus I/O Interfaces
PAGE 9-17
2. Transferring the Fastening Result Data using the MSG function.
Since the message data format is fixed in the HFC3000 controller, no HFC3000 data configuration is required. (The
fastening data will be output to the PLC in the format shown in section 9-1-2 Fieldbus Message Output Format)
The data will be retrieved by the PLC using the PLC logic messaging command.
PLC program.

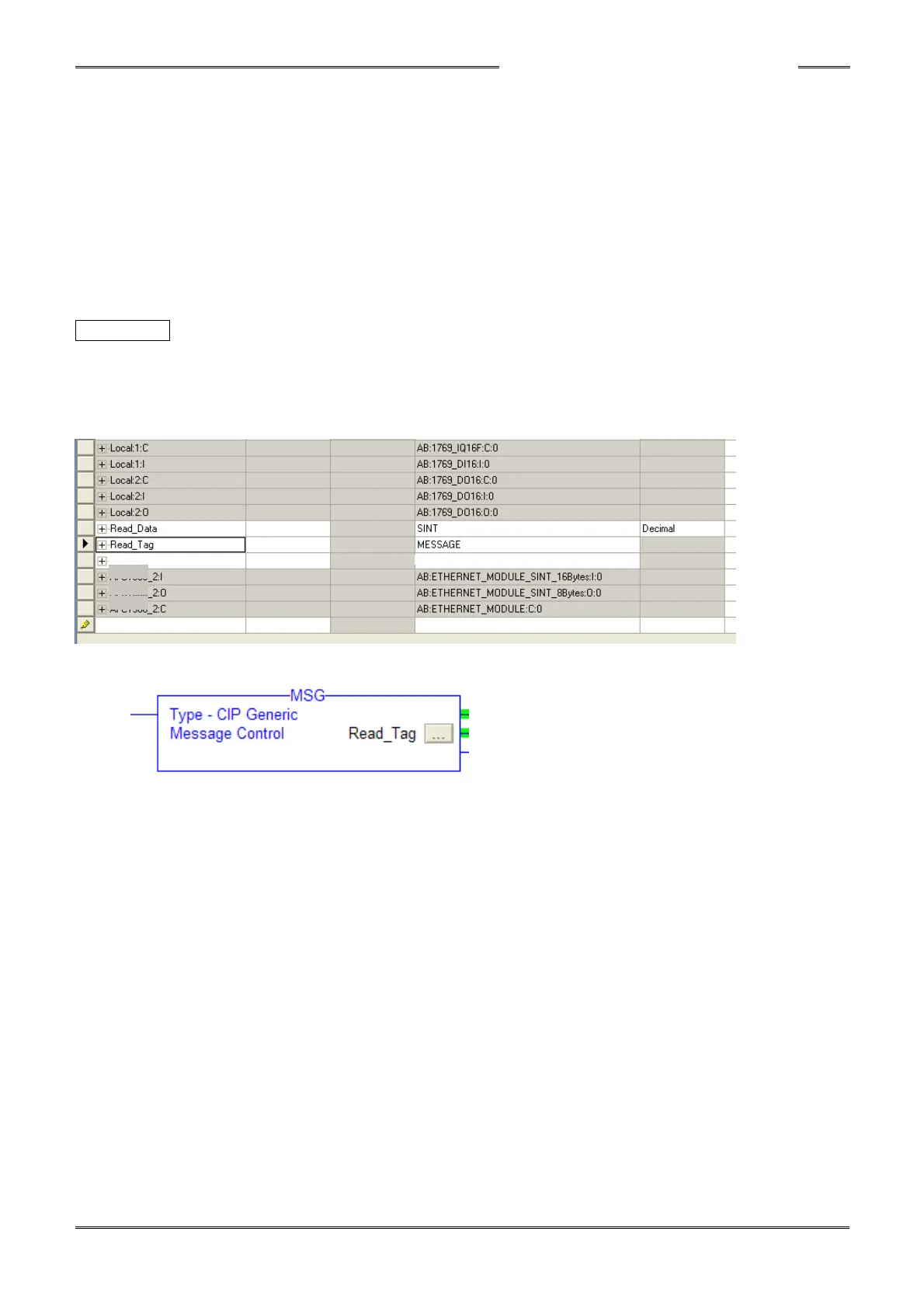

1. Read_Tag needs be added to the “Controller Tags” for message transfer
This data tag contains the configuration of the message transfer.
Each MSG command needs to have its own Read_ tag.
The MSG command is used for transferring the fastening result.
