Chapter 9 Fieldbus I/O Interfaces
PAGE 9-20

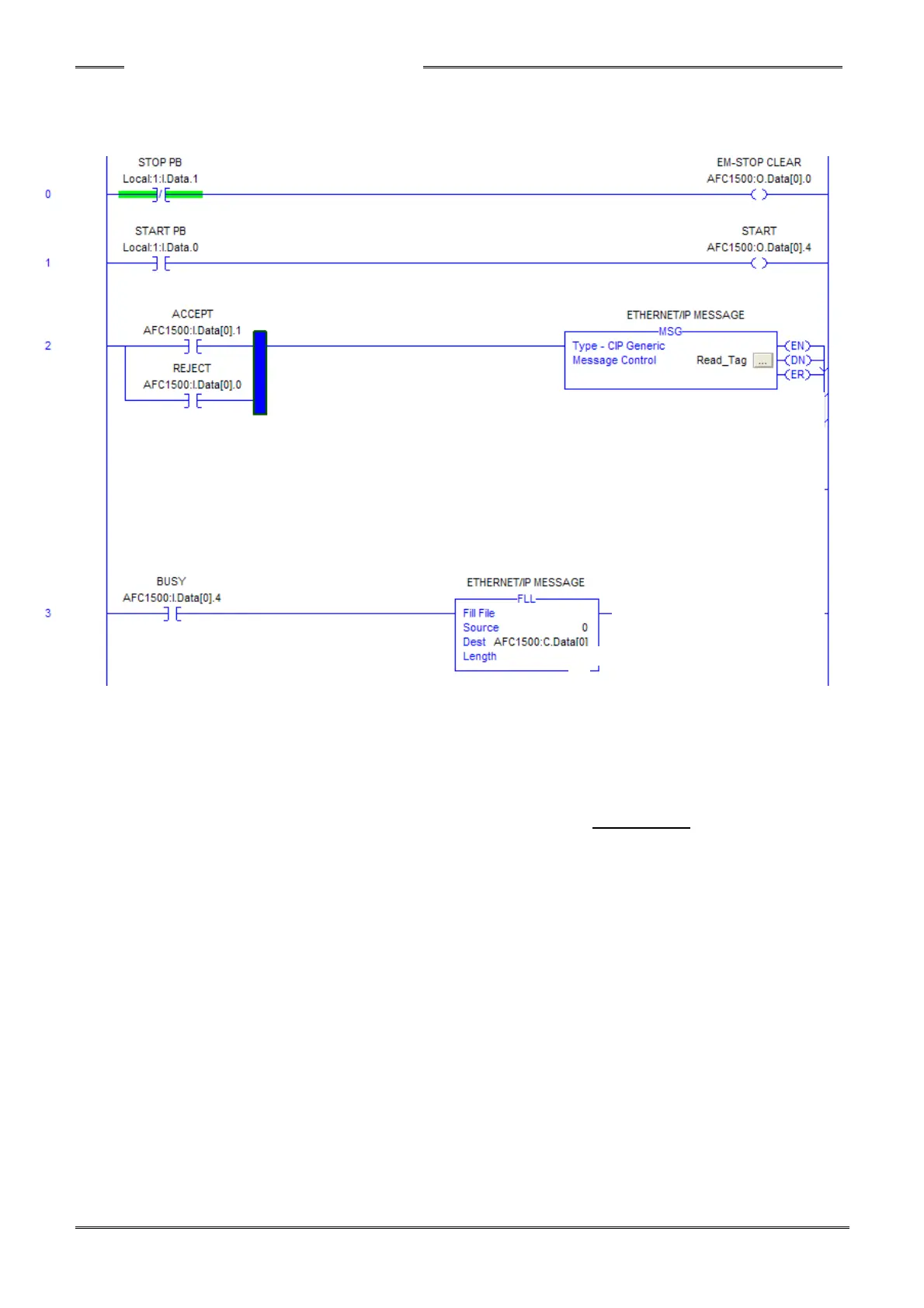

An example of a message transfer PLC program is shown below.
This program transfers up to 200 bytes of fastening result data.
The MSG command has “1” as “Instance” and is sending the data into HFC1500:C[0] memory block.
Note: All instructions above that show “AFC1500” would be labeled “HFC3000” for the HFC3000 setup. I/O
addresses are not actual and should reflect the fixed I/O layout as shown in section 9-1-1 Fieldbus I/O Layout.
Note: The above information contained in this procedure are meant for REFERENCE ONLY when configuring
an FEC Ethernet I/P interface using FEC HFC3000 User Console Software, FEC HFC3000 Nutrunner
System, Rockwell Automation RSlogix 5000 software and Allen Bradley CompactLogix L32E hardware. Actual
application configuration may differ from this set-up depending on the PLC chosen for the application.
