Chapter 9 Fieldbus I/O Interfaces
PAGE 9-21

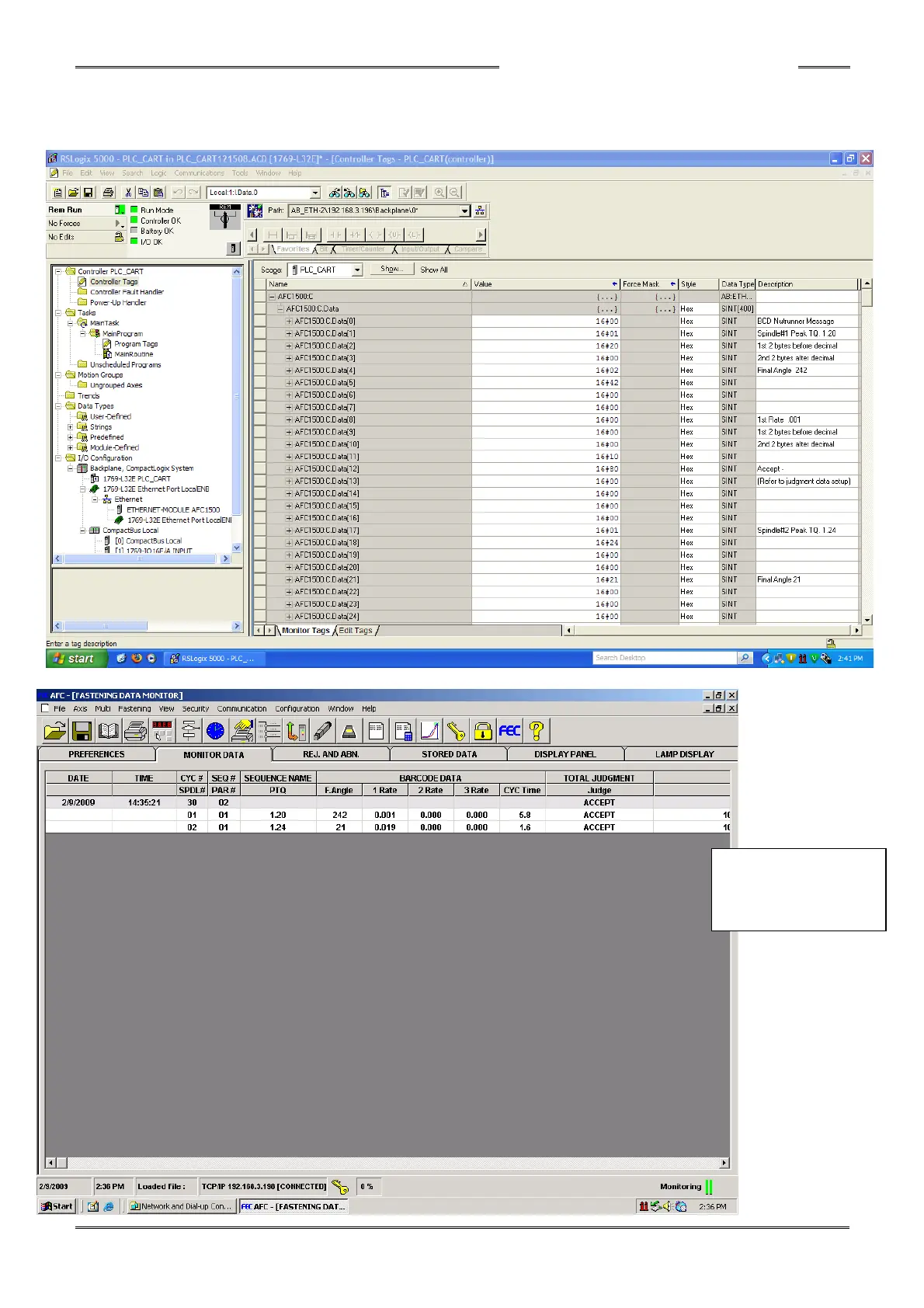

Message Data Example written for an AFC1500 System showing the :C register data
Note that screens and data for the HFC3000 would vary slightly – this is an example only for reference what
the message data will look like in the PLC. (“AFC1500” would be “HFC3000” for HFC3000 system)
AFC1500 User
Console MONITOR
Screen for above Data
