Chapter 9 Fieldbus I/O Interfaces
PAGE 9-30
9-3-4 Fieldbus Setup

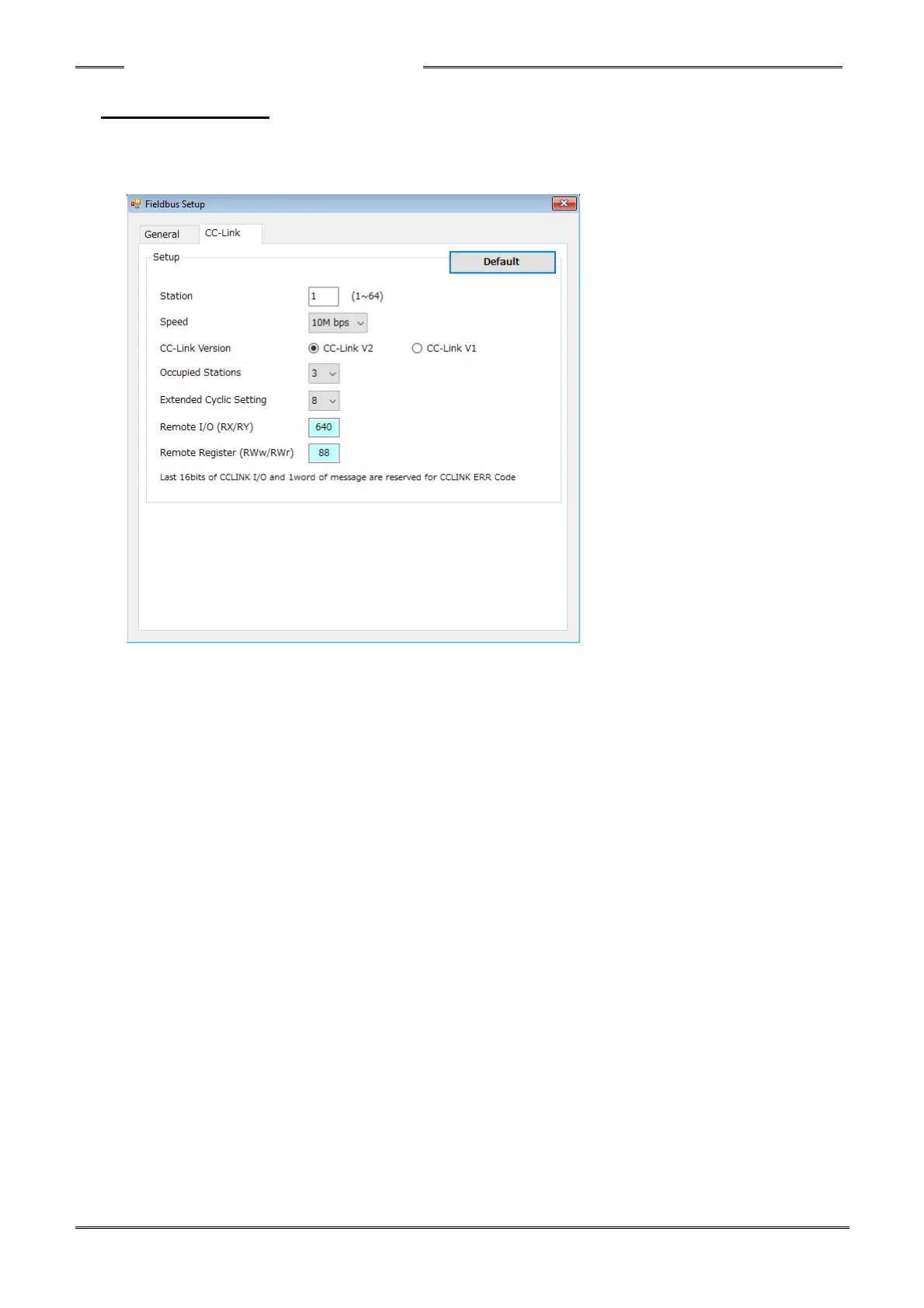

Setting of the Anybus-CompactCom CC-Link is performed in the CC-Link tab (of the HFC3000 Software).
The station No., the communication speed, the number of occupied stations, the extended cyclic setting, and
the CC-Link version can be changed.
●Default (the settings are set to the factory settings)
・Station: 1
・Speed: 10M bps
・Occupied Stations: 3 stations(CC-Link V2), 4 stations (CC-Link V1)
・Extended Cyclic Setting: 8 times (CC-Link V2), 1 time (CC-Link V1)
* Message Block Bytes is fixed at 176 bytes max by CCLINK.
●Station
Setting range: 1 ~ 64
●Speed
Setting range: 156kbps, 625kbps, 2.5Mbps, 5Mbps, 10Mbps
●CC-Link Version
Setting range: CC-Link V2, CC-Link V1
●Occupied Stations
Setting range: 1 station, 2 stations, 3 stations, 4 stations (* fixed at 4 stations with CC-Link V1)
●Extended Cyclic Setting
Setting range: 1 time, 2 times, 4 times, 8 times (* fixed at 1 time with CC-Link V1)
●Remote I/O (RX/RY)
●Remote Register (RWw/RWr)
This can be set in accordance with the combination of the extended cyclic setting and the number of occupied
stations.
