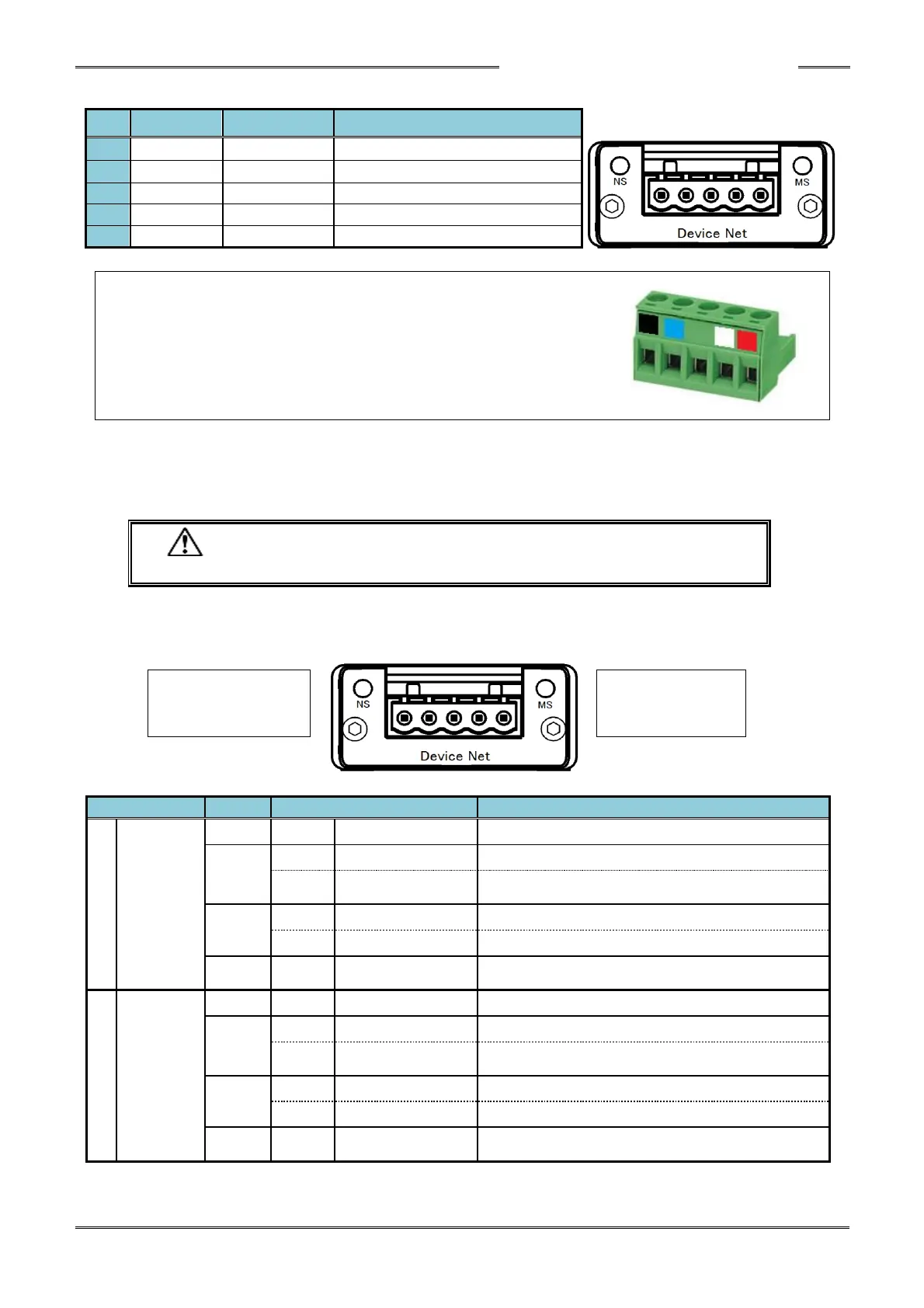

Chapter 9 Fieldbus I/O Interfaces
PAGE 9-41
Module Pin Configuration
No.
Signal
Wire Color
Description
1
V-
Black
Power cable - side
2
CAL L
Blue
Communication data Low side
3
SHUELD
-
Shield
4
CAL H
White
Communication data High
5
V+
Red
Power cable + side
Manufacturer: Phoenix Contact
Type: Connector plug
Model: MSTB 2.5/5-ST-5.08 AU M
Applicable wire size: AWG 14 ~ 23 or 0.25mm
2
~ 2.5mm
2
* The connector is provided with the equipment.
The cable is not included (customer supplied).
The compatible wire size and recommended rod terminals (ferrules) are as follows;
Compatible wire size ・・・ AWG 14 ~ 23 (0.25mm
2
~ 2.5mm
2
)
Recommended rod terminals (ferrules)
・・・ Model: AI 2,5-6 WH (Phoenix Contact)
Be sure to connect the cable with all power OFF.
List of LED Indications
The module LEDs indicate the node status of the AFC3000 Device Net System and the network state.
LED
Color
State
Details
A
Network
Status
LED
OFF
Off
Offline
Offline or power is not supplied.
Green
Lit on
Online
Communicating normally.
Flash
Connection
unestablished
Although online, connection is unestablished.
Red
Lit on
Error
A critical error has occurred.
Flash
Connection timeout
A connection timeout has occurred once or more.
Red/
Green
Lit on
Repeated
Test mode
B
Module
Status
LED
OFF
Off
Power OFF
Power is not supplied.
Green
Lit on
Online
Normal state
Flash
Connection
unestablished
Due to incomplete configuration or connection failure, the
device must be re-recognized.
Red
Lit on
Error
A critical error has occurred.
Flash
Error
A recoverable error has occurred.
Red/
Green
Lit on
Repeated
Test mode
1 2 3 4 5
Caution
A : Network
Status LED
B : Module
Status LED
