Chapter 9 Fieldbus I/O Interfaces
PAGE 9-42
9-5-3 I/O Signal Specifications
I/O Input/Output
Message Input/Output
Controller to PLC
PLC to Controller
Controller to PLC
PLC to Controller
Maximum
Setting
32 bytes (256 points)
8 bytes (64 points)
4096 bytes
32 bytes
Standard
Setting
16 bytes (128 points)
8 bytes (64 points)
200 bytes
32 bytes

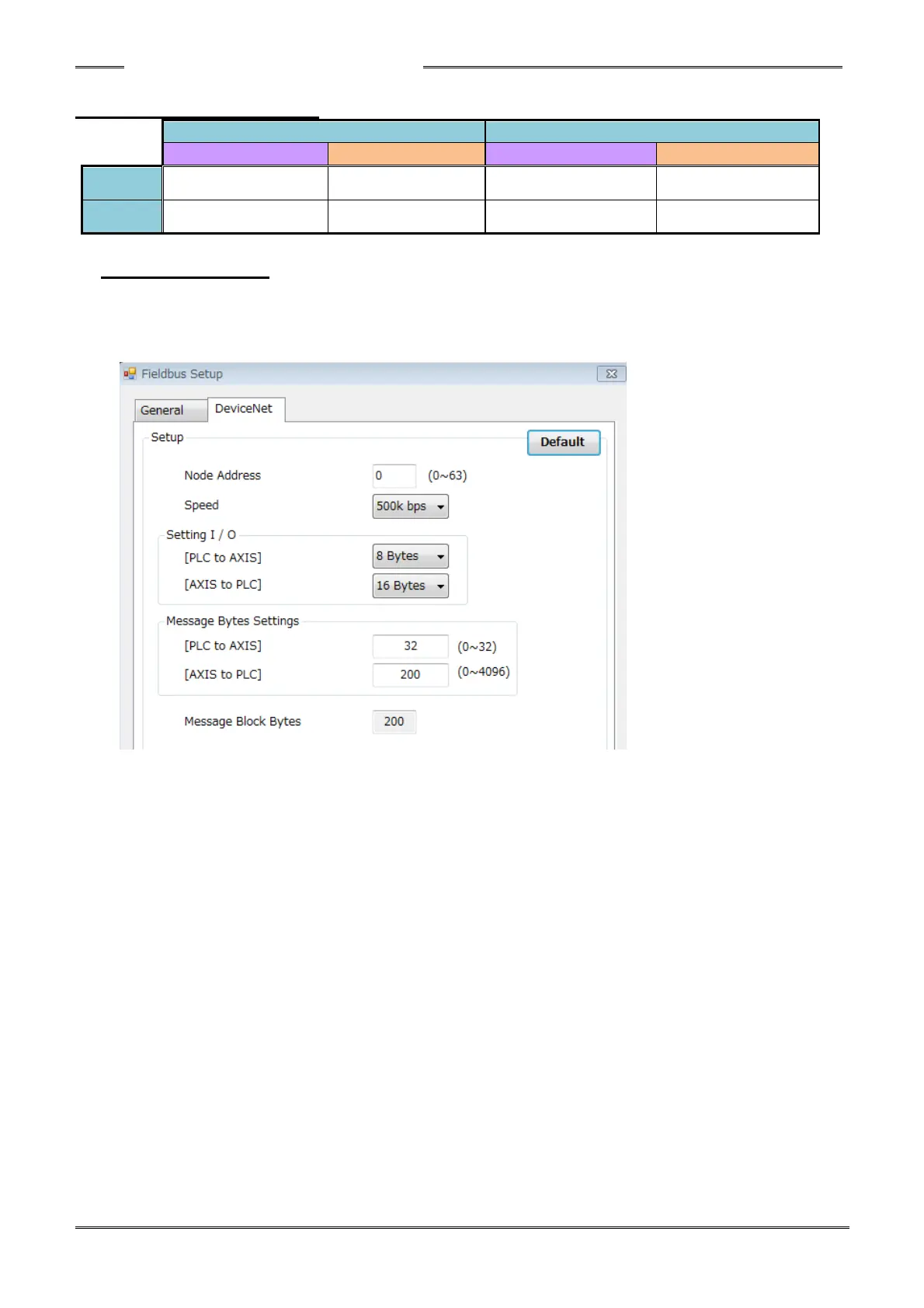

9-5-4 Fieldbus Setup
Using the HFC3000 Software setting of the Anybus-CompactCom Device Net is performed in the Device Net
window.
The communication speed, the node address, the I/O settings, and the message settings can be changed.
●Default (the settings are set to the factory settings)
･Node Address:0 ･Speed: 500k bps
･Setting I/O [PLC to Axis]: 8bytes[64bits]
･Setting I/O [Axis to PLC]: 16bytes[128bits]
･Message Bytes Settings[PLC to Axis]: 32bytes
･Message Bytes Settings [Axis to PLC]: 200bytes
* Message Block Bytes is fixed at 200 bytes.
●Node Address
Setting range: 0 ~ 63
●Speed
Setting range: 156kbps, 250kbps, 500kbps
●Setting I/O
･[PLC to Controller]
Setting range: 2bytes [16bits] ~ 8bytes[64bits]
･[Controller to PLC]
Setting range: 2bytes [16bits] ~ 32bytes[256bits]
(continued on next page)
