Chapter 3 Sysytem Description
PAGE 3-5

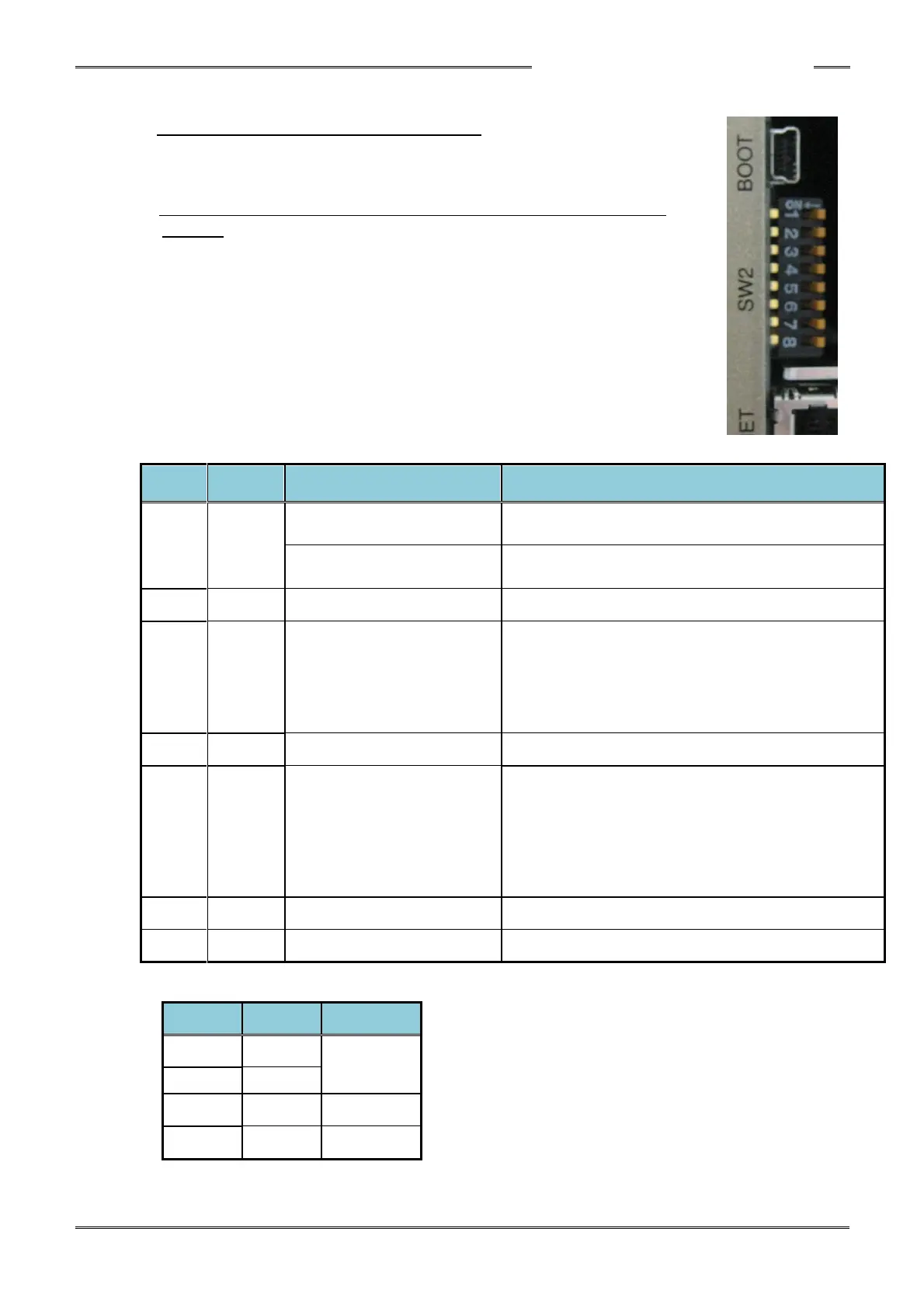

3-1-4 Bottom Panel SW2 Switch Settings
The SW2 DIP switches on the bottom panel are used to change settings
related to functions of the controller.
* Controller Power must be OFF when changing SW1 dip switch
settings.
No.
Factory
Setting
Function
Setting Details
1、2
OFF
Disabled
Used for in-house adjustment
(Controller software version V1.219 or earlier)
External Monitoring
ANGLE PULSE Output
See the table below
(Contorller software version V 1.220 or later)
3
OFF
Disabled
Used for in-house adjustment
4
OFF
Software PLC Function
OFF: Software PLC Function Disabled
Standard I/O Assignment is used
ON: Software PLC Function Enabled
I/O Mapping for software PLC used
(Refer to Software PLC Manual- LD Editor)
This function available in Firmware Ver 1.305 or later
5
OFF
Disabled
Used for in-house adjustment
6
OFF
PLC I/O STOP
(TEST Mode)
(STOP signal Disable)
When this is set to ON, the STOP signal is not
required to operate the system.
Fastening operation cannot be stopped by the
PLC I/O input signal “STOP”. Be sure to set this
function to OFF if this equipment is to be put in full
operation.
7
OFF
Disabled
Used for in-house adjustment
8
OFF
Disabled
Used for in-house adjustment
●Angle pulse monitor output resolution
SW2-1
SW2-2
Resolution
OFF
OFF
1.0 degree
OFF
ON
ON
OFF
0.5 degree
ON
ON
0.1 degree
