Chapter 4 Installation and Wiring
PAGE 4-29

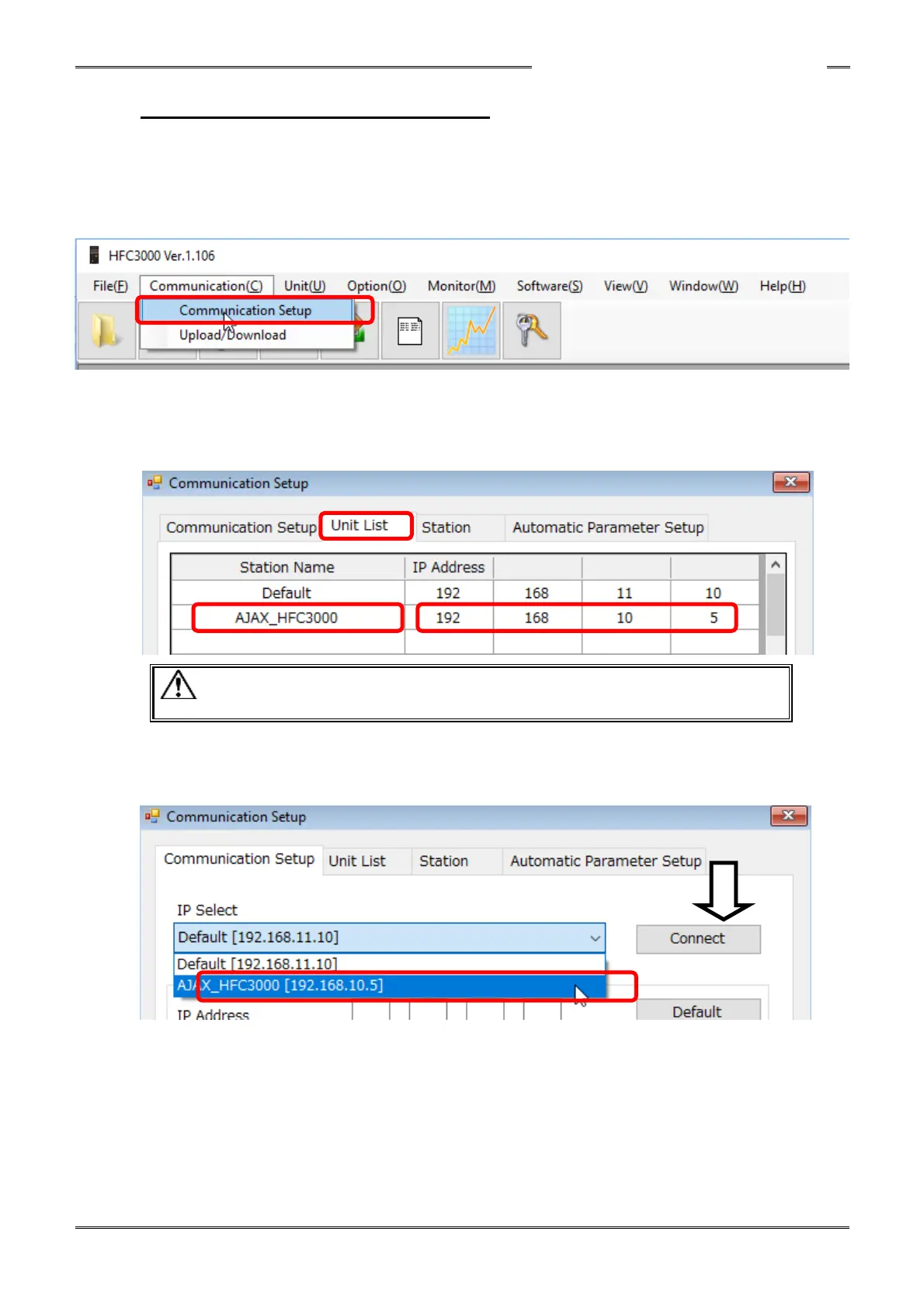

4-8-1 TCP/IP SETUP PROCEDURE (User Console Software)
1. If the TCP/IP settings of the controller are set to anything other than the default settings, then
the new IP address will need to be registered in the HFC3000 User Console Software.
The communication setting window is displayed automatically when the User Console software
is started. Or, if the AFC3000 User Console has already been opened, select “Communication
(C)” → “Communication Setting” in the Menu.
2. Select the communication setting window and then select the “Unit List” tab. Register the new
TCP/IP settings set in the controller you would like to communicate with.
2-1. Enter the station name (30 letters at max.).
2-2. Enter the IP address (0 to 255, 4 positions). (hit “TAB” or “→” to adv. to next position)
3. Return to the “Communication Setup” tab and select the station name you just entered in “ IP
Select,” pull down menu, then click “Connect.”
To Next Page
