5 Conversion and maintenance
118 Festo – P.BE-MPA-EN – 1309f – English
1
2
3

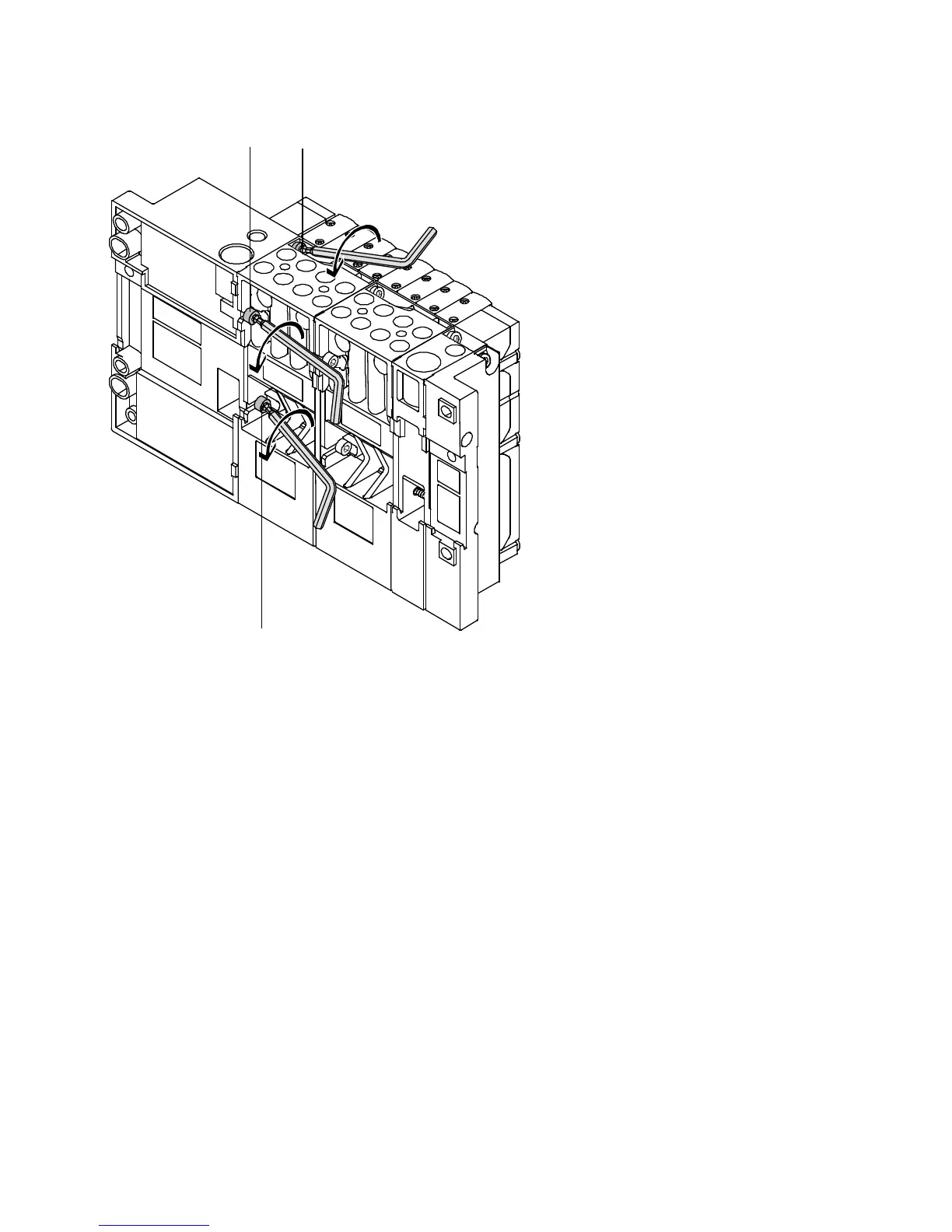

Fig. 5.13 Position of the sub-base fittings
4. Loosen and then remove the mounting screws.
5. Pull the multi-pin plug c onnection plate away from the pneumatic sub-ba ses.
For mounting, proceed as follows:
1. Check the exposed seals for damage. Replace damaged seals.
2. Place the seal onto the guide pins of the multi-pin plug connection plate.
