A Technical appendix
136 Festo – P.BE-MPA-EN – 1309f – English
1
2
3
1 Pressure of the pilot air supply at port
(12/14) [bar]
2 Work range
3 Operating pressure at port (1) [bar]

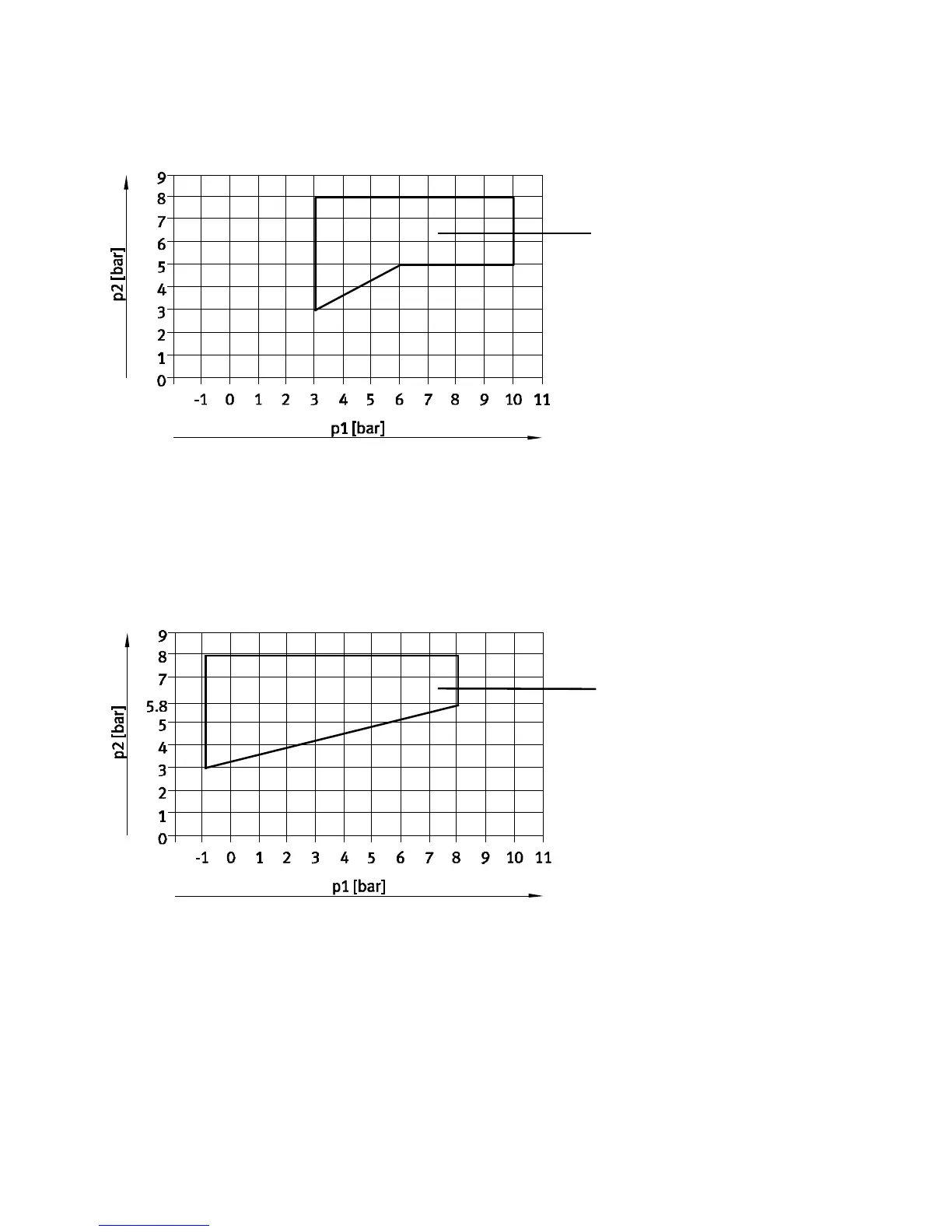

Fig. A.1 Diagram: Required pilot pressure related to the operating pressure with use of valve sub-ba-
seswithident.codeD,H,I,KandN
1
2
3
1 Pressure of the pilot air supply at port
(12/14) [bar]
2 Work range
3 Operating pressure at port (1) [bar]
Fig. A.2 Diagram: Required pilot pressure related to the operating pressure with use of valve sub-ba-
ses with ident. code DS, HS, KS, MS and NS, width 10 mm
