A Technical appendix
Festo – P.BE-MPA-E N – 1309f – English 137
1
2
3
1 Pressure of the pilot air supply at port
(12/14) [bar]
2 Work range
3 Operating pressure at port (1) [bar]

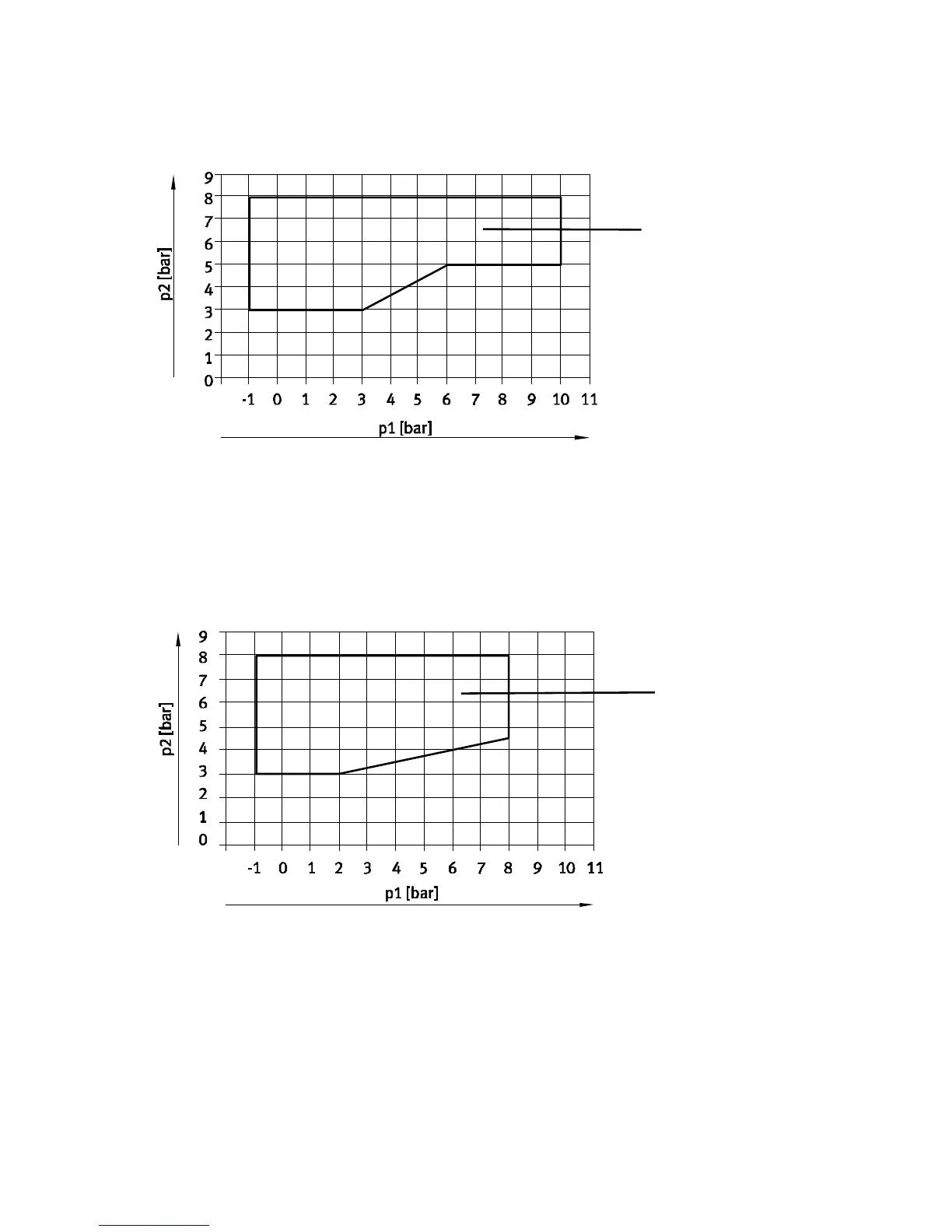

Fig. A.3 Diagram: Required pilot pressure related to the operating pressure with use of valve sub-bases
with iden t. code B, E, G, J, M, W and X
1
2
3
1 Pressure of the pilot air supply at port
(12/14) [bar]
2 Work range
3 Operating pressure at port (1) [bar]
Fig. A.4 Diagram: Required pilot pressure related to the operating pressure with use of valve sub-ba-
ses with ident. code DS, HS, KS, MS and NS, width 20 mm
