B Supplementary component overview
Festo – P.BE-MPA-E N – 1309f – English 159

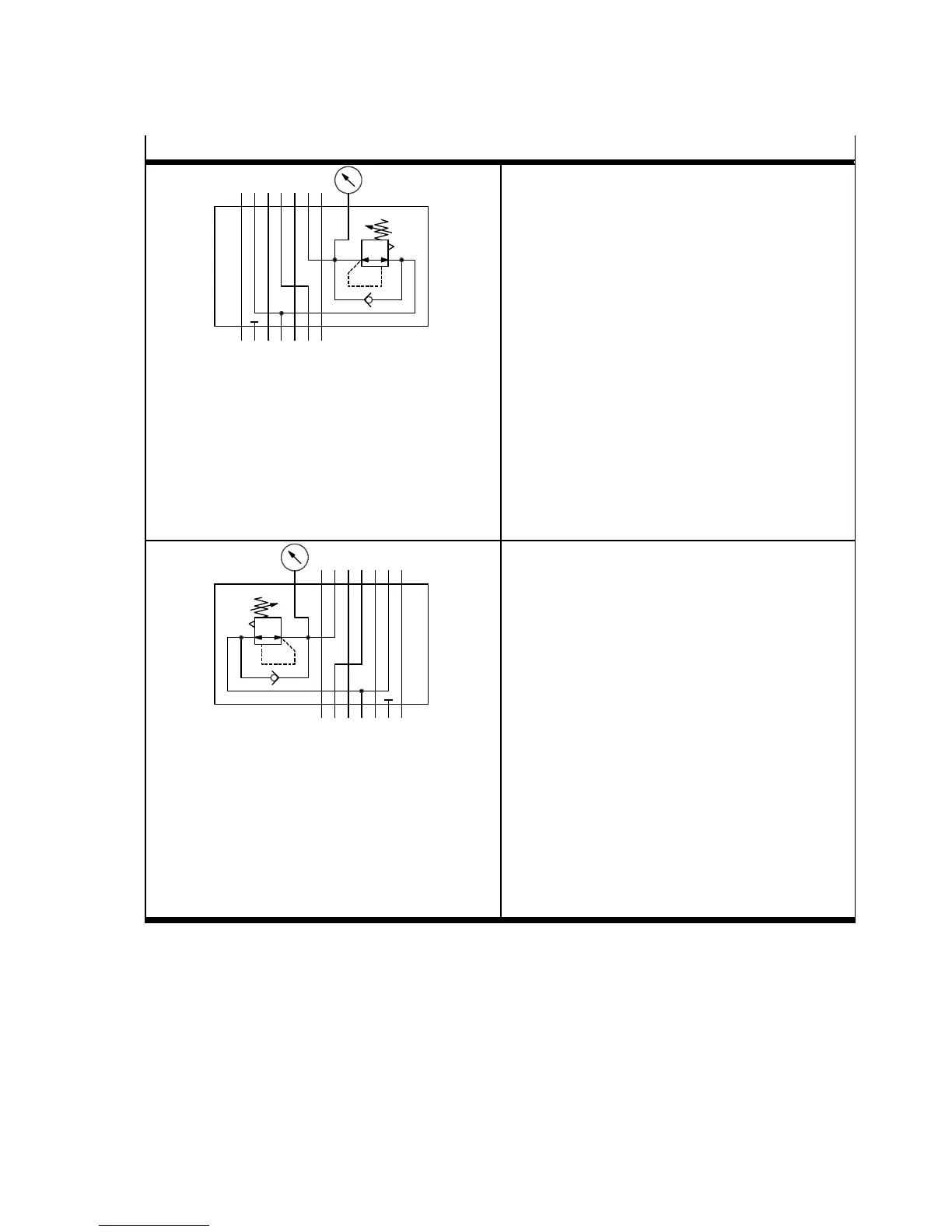

Pressure regulator plates
2
4
14
51312
Pressure regulator plate for port (2), reversible
(B re gulator)
Ident. code: PN or PL
Function:
– Channels the operating pressure upstream of
the directional control valve from channel (1)
to channels (3) and (5)
– Reg ulates the pressure in channel (3)
upstream of t he directional control valve
– Conducts the exhaust from channel 1 to
channel ( 3) after the directional control valve
Instructions:
Combination with 2x 2/2-directional control
valves (ident. codes D and I) and
2x 3/2-directional control valves (ident. codes H,
K and N) is not permitted.
2
4
14
51312
Pressure regulator plate for port (4), reversible
(A re gulator)
Ident. code: PM or PK
Function:
– Conducts the operating pressure from
channel 1 to channels (5) and (3)
– Reg ulates the pressure in channel (5)
upstream of t he directional control valve
– Channels the exhaust air downstream of the
directional control valve from channel (1) to
channel (5)
Instructions:
Combination with 2x 2/2-directional control
valves (ident. codes D and I) and
2x 3/2-directional control valves (ident. codes H,
K and N) is not permitted.
Tab. B.5 Pressure regulator plates for regulating outputs (1), (2) and (4)
