IN CASE OF EMERGENCY
232
REPLACING AN
EXTERIOR BULB
For the type of bulb and power rating,
see the “Replacing a bulb” paragraph
above.
FRONT LIGHT CLUSTERS
The front light clusters contain the
side lights and DRLs (where the LED
solution is not provided), dipped beam,
main beam and direction indicator
bulbs.
Bulbs must be replaced with the
headlight removed and placed on a
work surface.

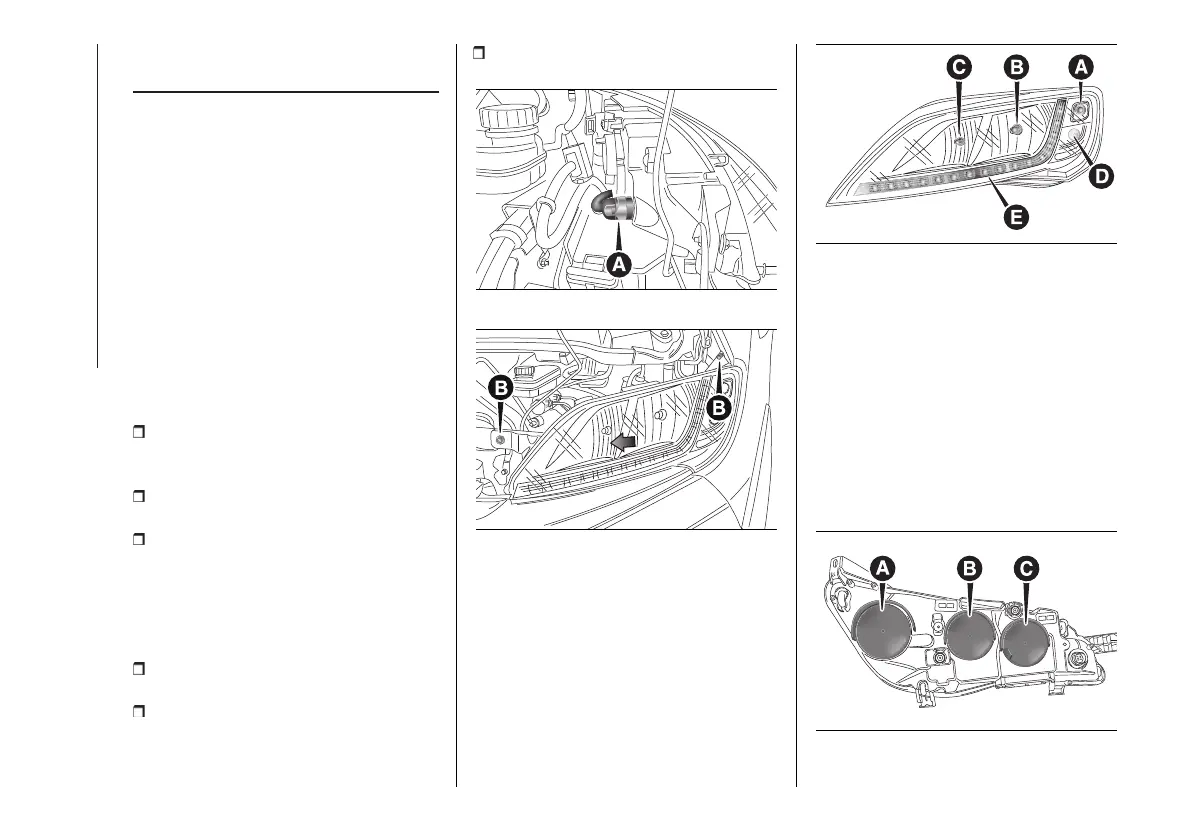

To remove the headlight, operate as
follows:
open the bonnet by following the
procedure in the "Bonnet" chapter in
the "Knowing your vehicle" section;
disconnect the electrical connector
(A) fig. 263 from the headlight;
undo the screws (B) fig. 264 fixing
the headlight to the body, release the
headlight from its housing, in the lower
part, as shown in fig. 264 and remove
the headlight placing it on a work
surface;
follow the steps described below for
replacing the bulbs;
after the replacement, refit the
headlight and secure it with the fixing
screws (B) fig. 264;
disconnect the electrical connector
(A) fig. 263 from the headlight.
263 F1A0337
264 F1A0338
The bulbs are arranged inside the light
cluster as follows fig. 265:
(A) direction indicators
(B) dipped beam headlights
(C) main beam headlights
(D) daytime running lights
(E) side lights/DRLs with LEDs (as an
alternative to (D))
265 F1A0313
To replace a main beam headlight bulb,
remove the rubber cap (C) fig. 266.
To replace a dipped beam headlight
bulb, remove the rubber cap (B)
fig. 266.
To replace a direction indicator or side
light/DRL bulb (when not LED), remove
the rubber cap (A) fig. 266.
After replacement, refit the rubber caps
correctly, ensuring that they are locked
in place.
266 F1A0314
